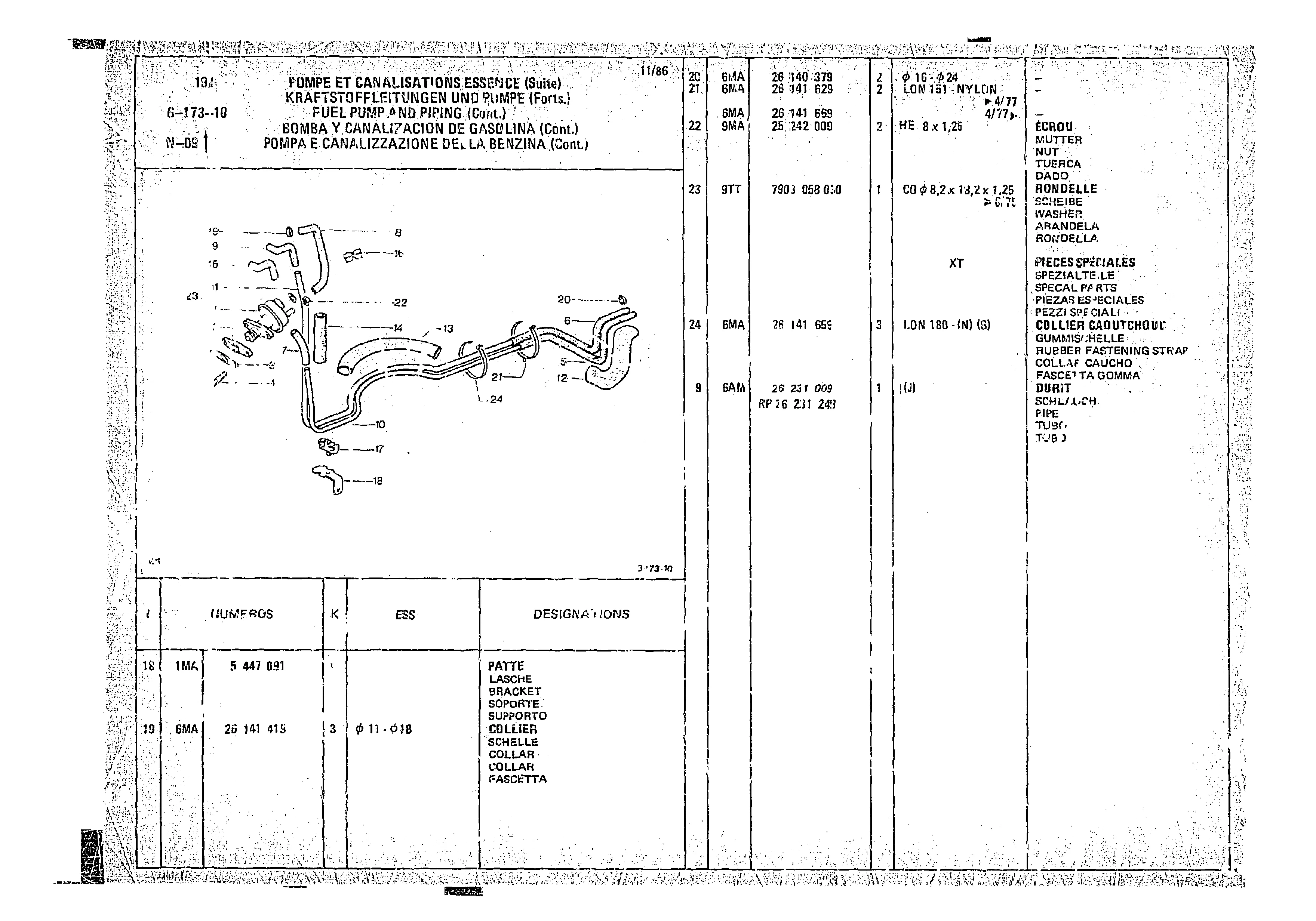

Page 578 of 966
Next →
Page ↔ Forum
Start a discussion
Find related
SP-6
cxparts7479 · p.578
PART DESCRIPTIONS ON THIS PAGE
MUTTER © NUT | FARTS
