Part Descriptions on This Page (English)

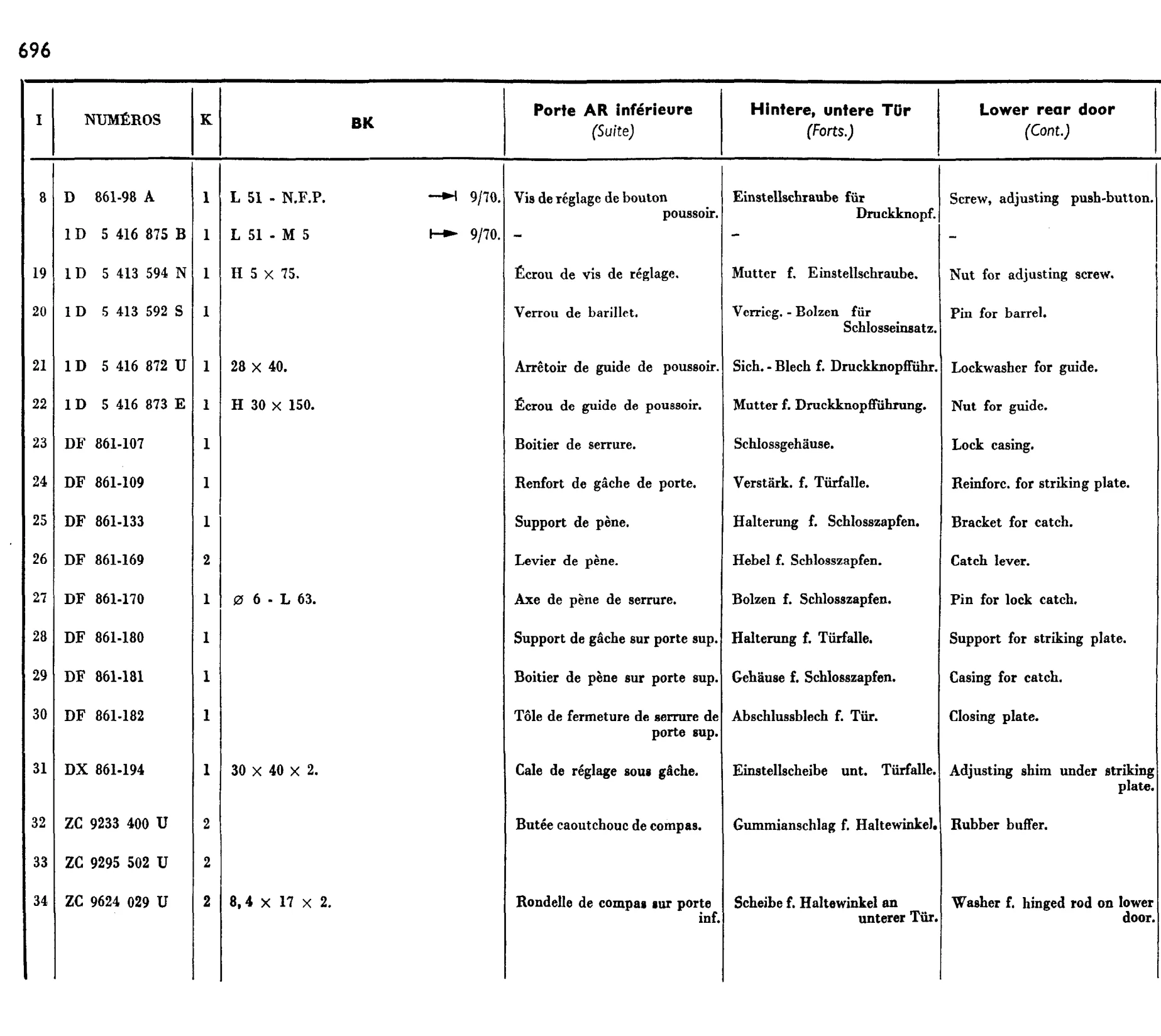

Lower rear door (Cont.) | Screw, adjusting push-button | Nut for adjusting screw. | Pin for barrel. | Lockwasher for guide. | Nut for guide. | Lock casing. | Reinforc. for striking plate. | Bracket for catch. | Catch lever. | Pin for lock catch. | Support for striking plate. | Casing for catch. | Closing plate. | Adjusting shim under striking plate | Rubber buffer. | Washer f. hinged rod on lowe] door
