Part Descriptions on This Page (English)

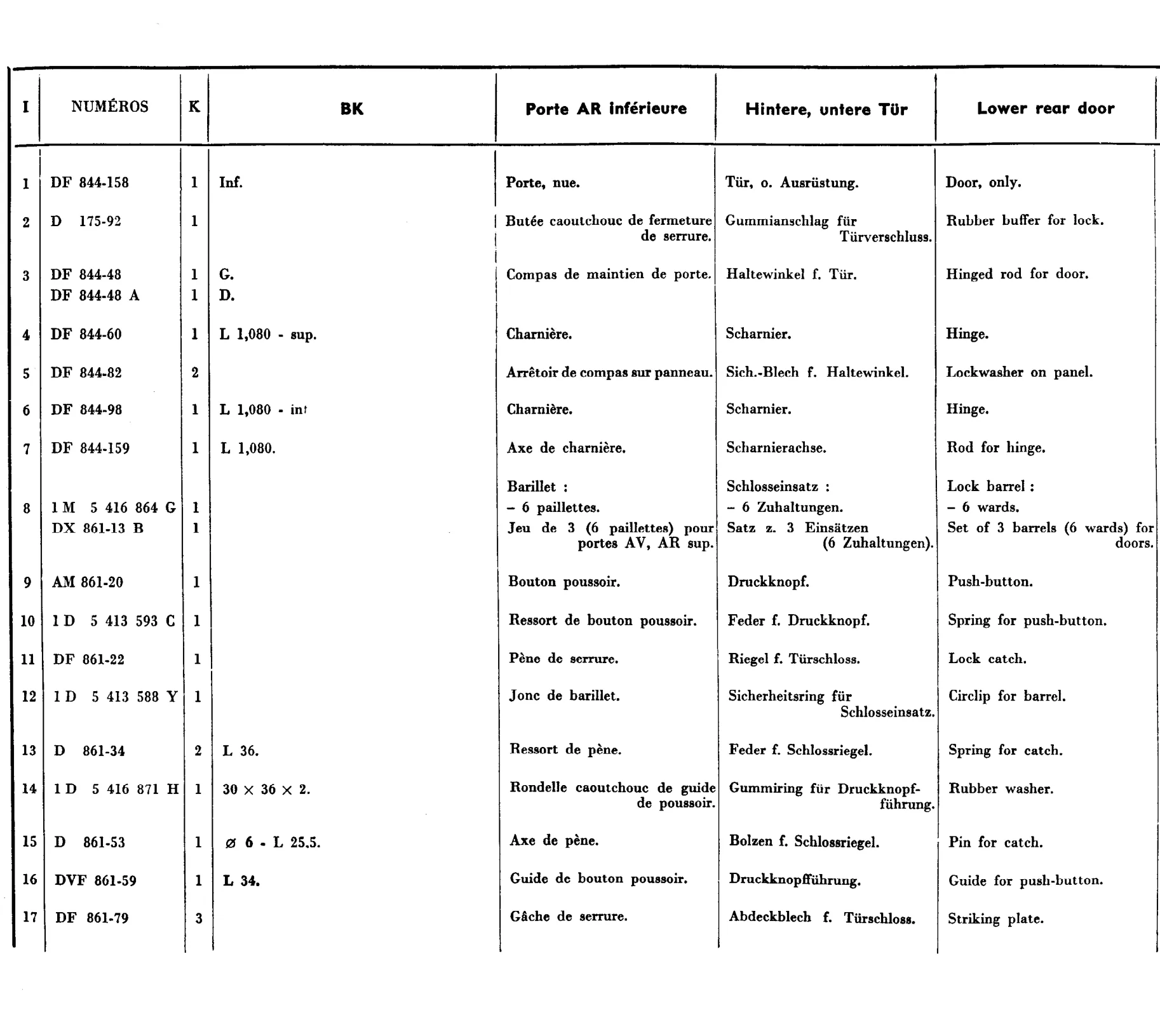

Lower rear door | T- 1 Door, only. | 1 Rubber buffer for lock. | 1 Hinged rod for door. | 1 Hinge. | 1 Lockwasher on panel. | I Hinge. | Rod for hinge. | Lock barrel : | - 6 wards. | Set of 3 barrels (6 wards) fo I. doors | Push-button. | Spring for push-button. | Lock catch. | Circlip for barrel. | Spring for catch. | Rubber washer. | Pin for catch. | Guide for push-button. | Striking plate.
