Part Descriptions on This Page (English)

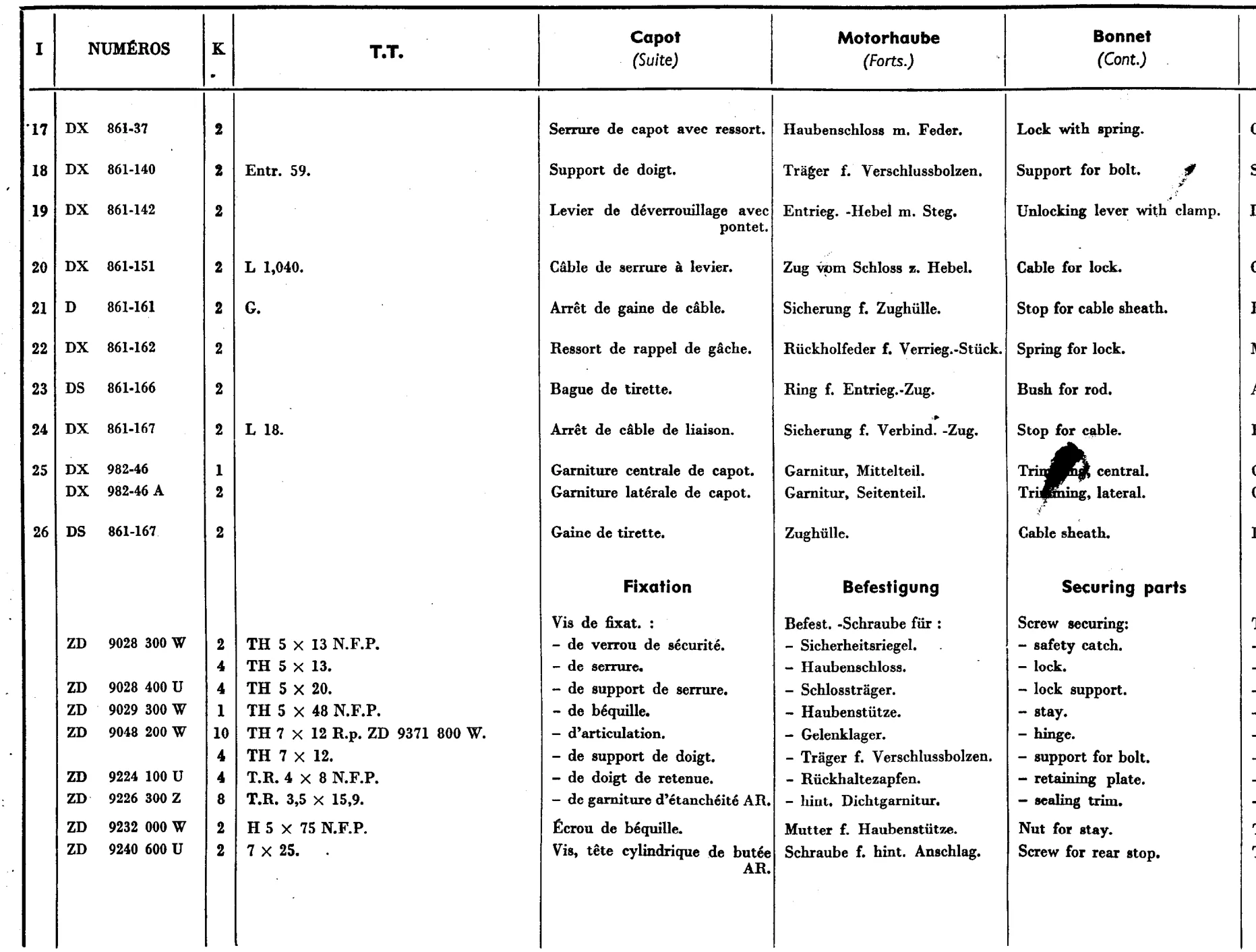

Bonnet (Cont.) | Lock with spring. C | Support for bolt. S | Unlocking lever with“ clamp. L | Cable for lock. C | Stop for cable sheath. R | Spring for lock. M | Bush for rod. A | R Stop for cable. | T central. G | T lateral. G | Cable sheath. F | Securing parts | Screw securing: T | - safety catch. - | - lock. - | - lock support. - | - stay. - | - hinge. - | - support for bolt. - | - retaining plate. -
