Part Descriptions on This Page (English)

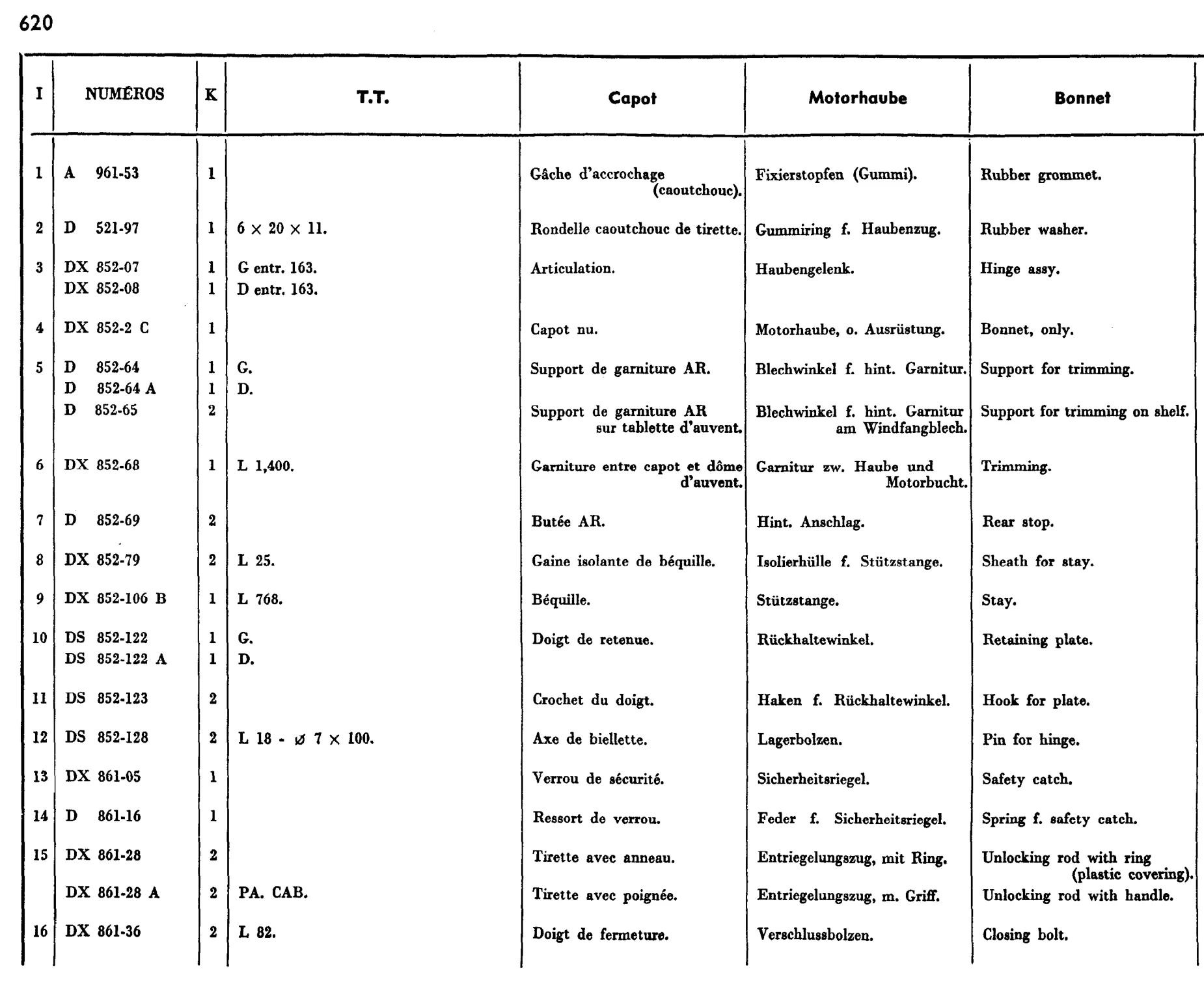

Bonnet | Rubber grommet. | Rubber washer. | Hinge assy. | Bonnet, only. | Support for trimming | Support for trimming on shelf. | Trimming. | Rear stop. | Sheath for stay. | Stay. | Retaining plate. | Hook for plate. | Pm for hiie. | Safety catch. | Spring f. safety catch. | Unlocking rod with ring (plastic covering) Unlocking rod with handle. | Closing bolt.
