Part Descriptions on This Page (English)

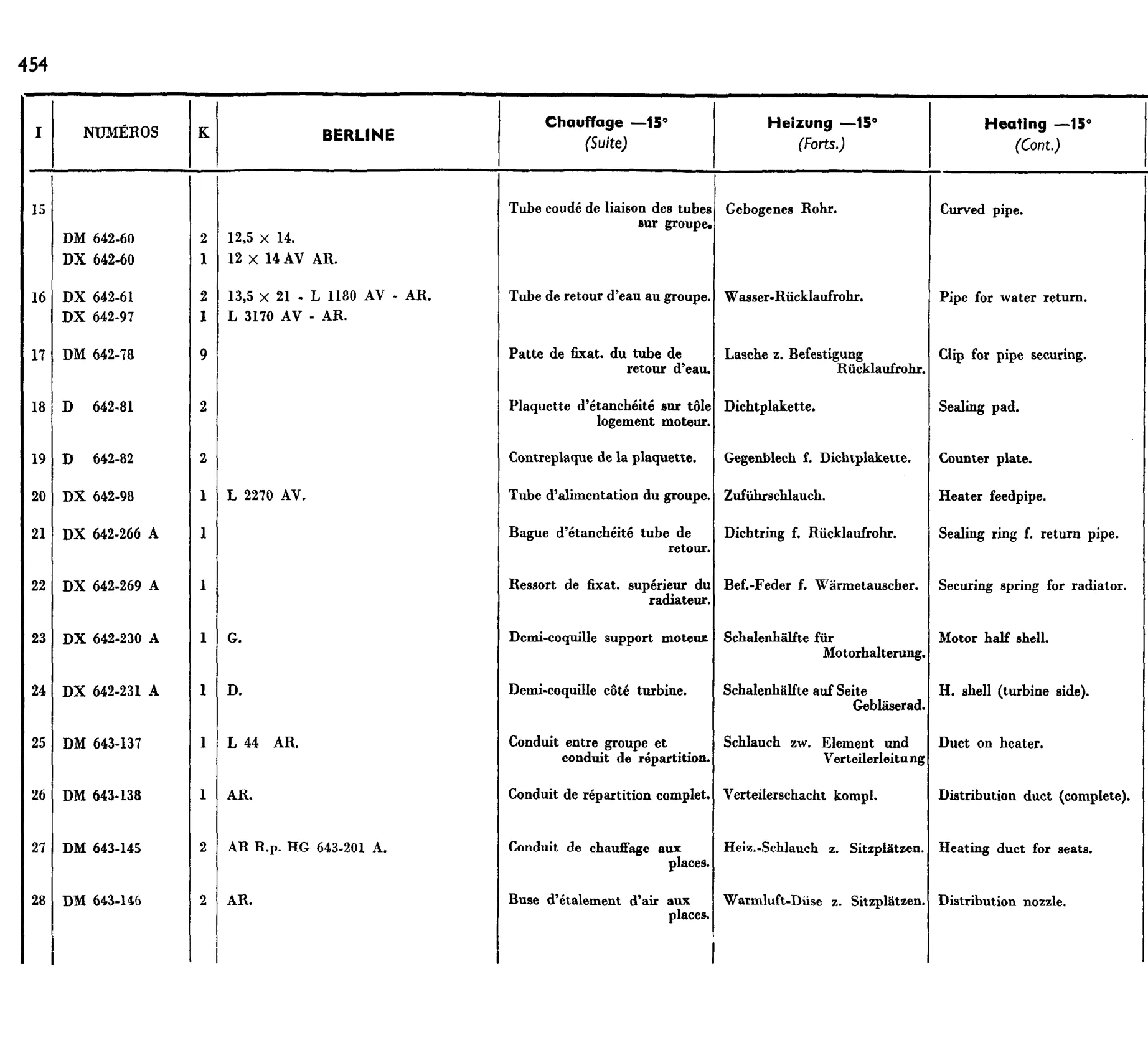

Heating -15” (Cont.) | Curved pipe. | Pipe for water return. | Clip for pipe securing. | Sealing pad. | Counter plate. | Heater feedpipe. | Sealing ring f. return pipe. | Securing spring for radiator. | Motor half shell. | H. shell (turbine side). | Duct on heater. | Distribution duct (complete). | Heating duct for seats. | Distribution nozzle.
