Part Descriptions on This Page (English)

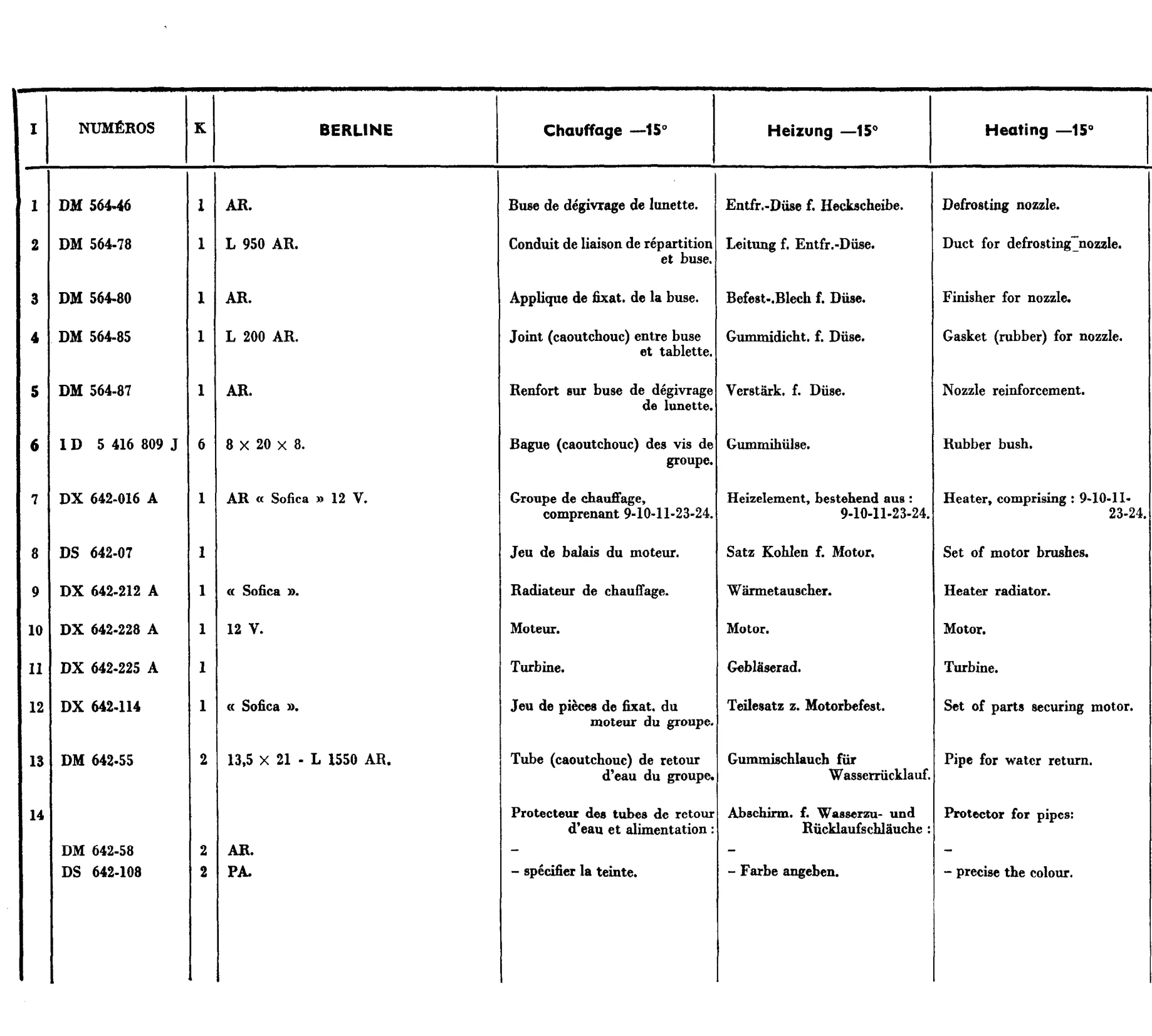

Heating -15” | Defrosting nozzle. | Duct for defrosting:nozzle. | Finisher for nozzle. | Gasket (rubber) for nozzle. | Nozzle reinforcement. | Rubber bush. | aus : Heater, comprising : g-10-11- 23-24 | Set of motor brushes. | Heater radiator. | Motor. | Turbine. | Set of parts securing motor. | Pipe for water return. | und Protector for pipes: | - precise the colour.
