REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.89)

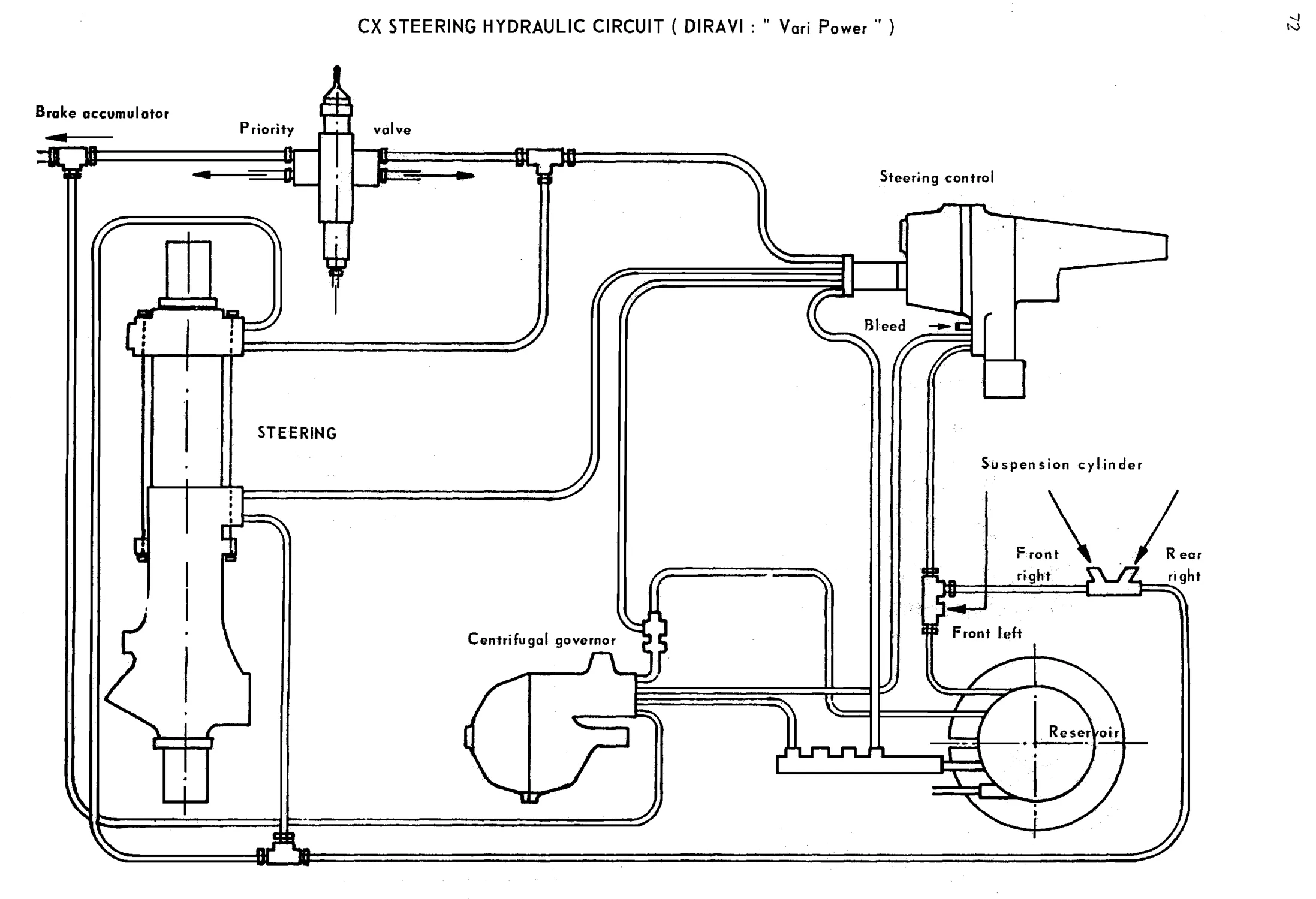

When the driver releases the steering wheel, the latter returns to the neutral position under the influence of the pressure acting on the piston. The liquid arrives in chamber A, penetrates into chamber B by the channel and the parts. The passage of the liquid through the calibrated hole slightly compresses the spring.
