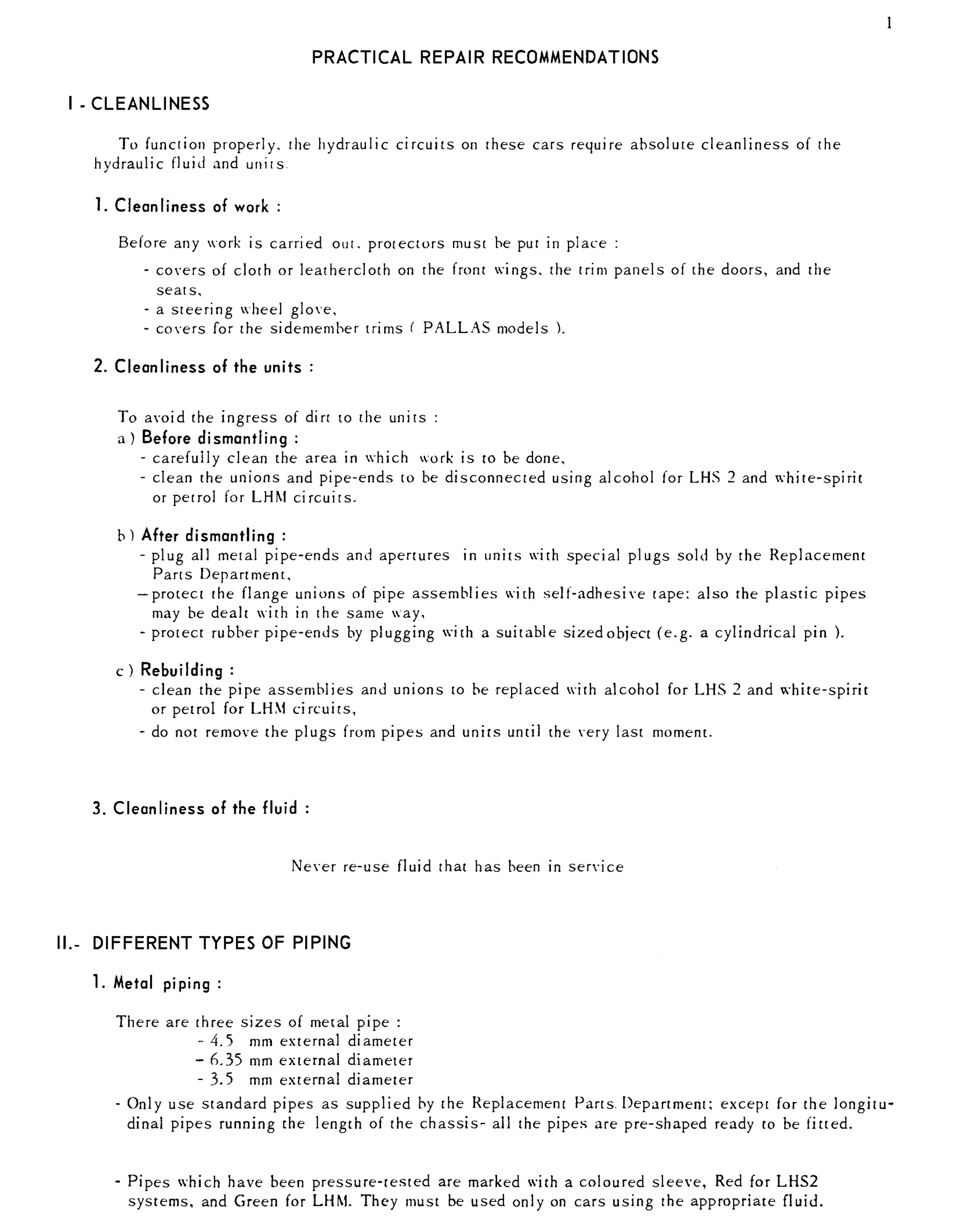

PRACTICAL REPAIR RECOMMENDATIONS | - CLEANLINESS To function properly, the hydraulic circuits on these cars require absolute cleanliness of the hydraulic fluid and units 1. Cleanliness of work : Before any work is carried out. protectors must be put in place : - covers of cloth or on the front wings. the trim panels of the doors, and the seats, - a steering wheel glove, - covers for the trims ( PALLAS models ). 2. Cleanliness of the units :
