Twelve & Fifteen Repair Manual — Text — Page 182

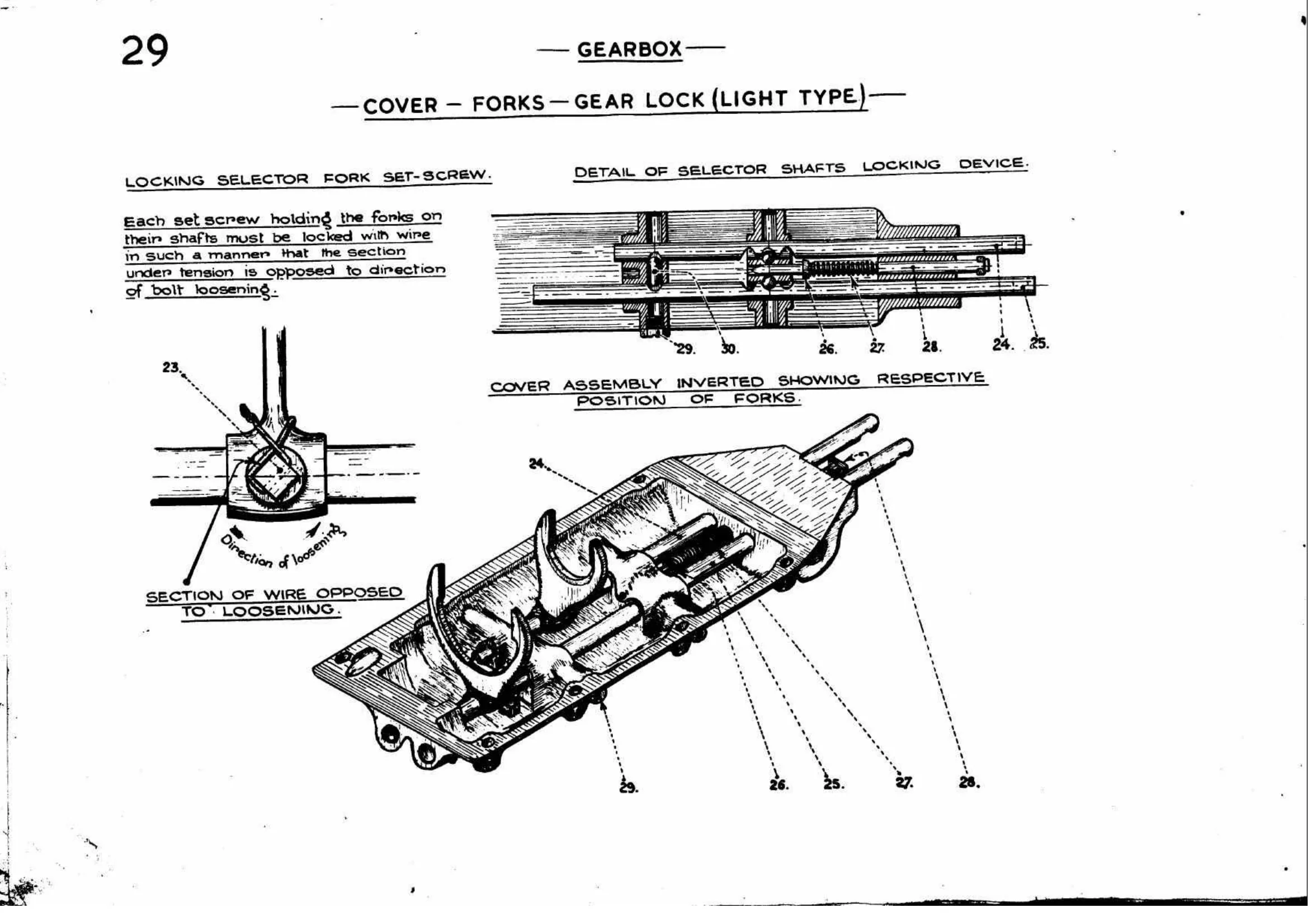

2Y — GEARBOX— — COVER — FORKS— GEAR LOCK (LIGHT TYPE)— LOCKING SELECTOR FORK SET- SCREW. DETAIL OF SELECTOR SHAFTS LOCKING OEVICE. Each set screw holding the forks on their shafts must be locked with wire i Such & manner that the section under tension is opposed to direction of - MAOMILUTIITIIDITTE. CREDA EULA UTR NTEETIIEES ee “29, bo. ds 8. 24. 35. COVER ASSEMBLY _ INVERTED SHOWING RESPECTIVE POSITION OF FORKS. SECTION OF WIRE OPPOSED TO” LOOSENING.
