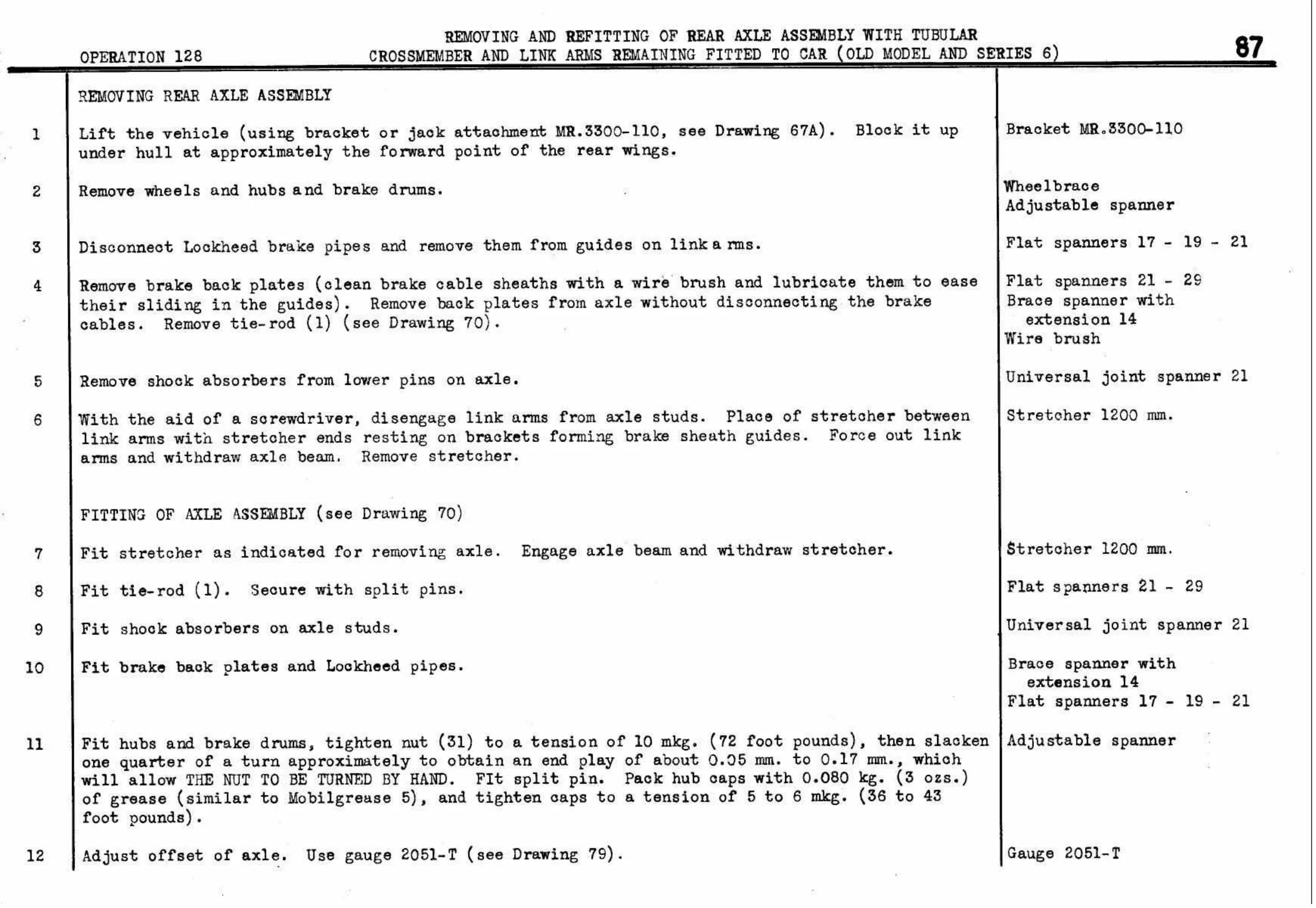

Crossmember And – Link Arms, page 90 of 260 — Twelve & Fifteen Repair Manual — Text
Page ↔ Forum
Start a discussion
Find related SP-6
light15 · p.90
EXTRACTED TEXT — FOR REFERENCE ONLY

Pe EO SR EA SAS US BNE EE OEE ee CROSSMEMBER AND LINK ARMS REMAINING FITTED TO CAR (OLD MODEL AND SE OPERATION 128 REMOVING REAR AXLE ASSEMBLY Lift the vehicle (using bracket or jack attachment MR.3300-110, see Drawing 67A). Block it up under hull at approximately the forward point of the rear wings. Remove wheels and hubs and brake drums. Disconnect Lockheed brake pipes and remove them from guides on ms.
