EXTRACTED TEXT — FOR REFERENCE ONLY

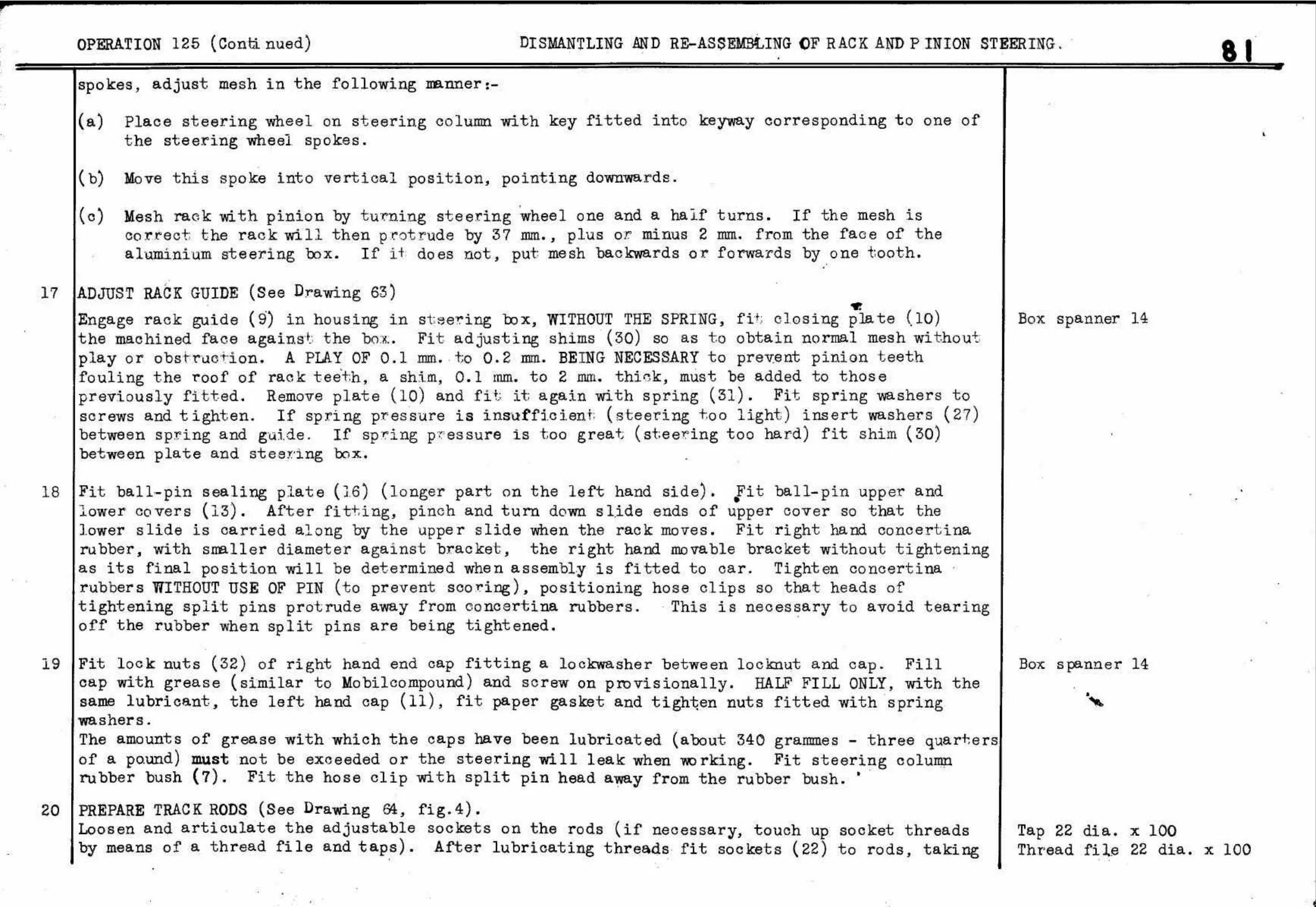

OPERATION 125 (Conti DISMANTLING AND RE-ASSEMBLING OF RACK AND PINION ST spokes, adjust mesh in the following manner:- (a) Place steering wheel on steering colum with key fitted into keyway corresponding to one of the steering wheel spokes. (bv) Move this spoke into vertical position, pointing downwards.
