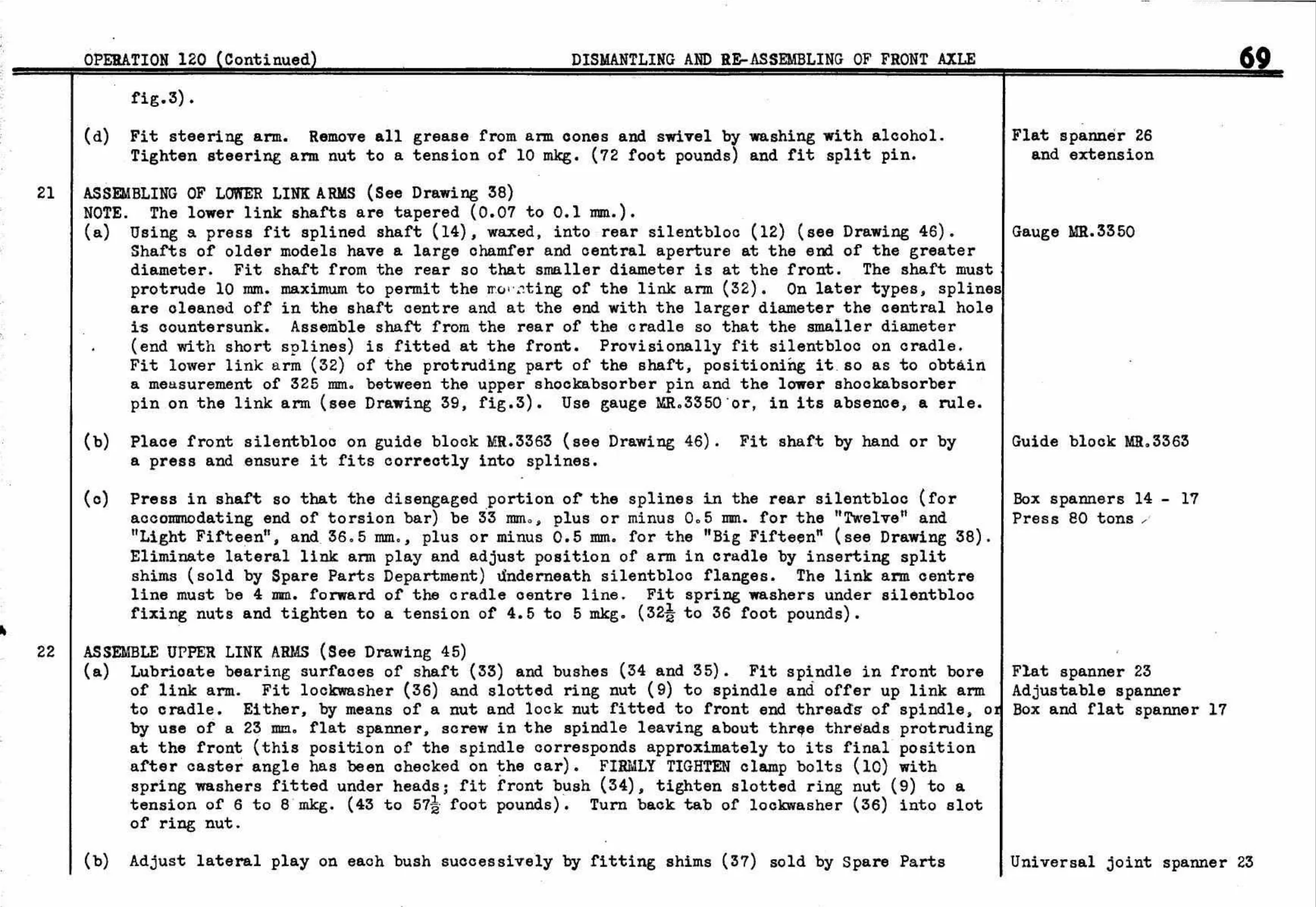

OPERATION 120 (Continued) DISMANTLING AND RE-ASSEMBLING OF FRONT AXLE fig.3). Fit steering arm. Remove all grease from arm cones and swivel by washing with alcohol. Tighten steering arm nut to a tension of 10 (72 foot pounds) and fit split pin. ASSEMBLING OF LOWER LINK ARMS (See Drawing 38) NOTE. The lower link shafts are tapered (0.07 to 0.1 m.).
