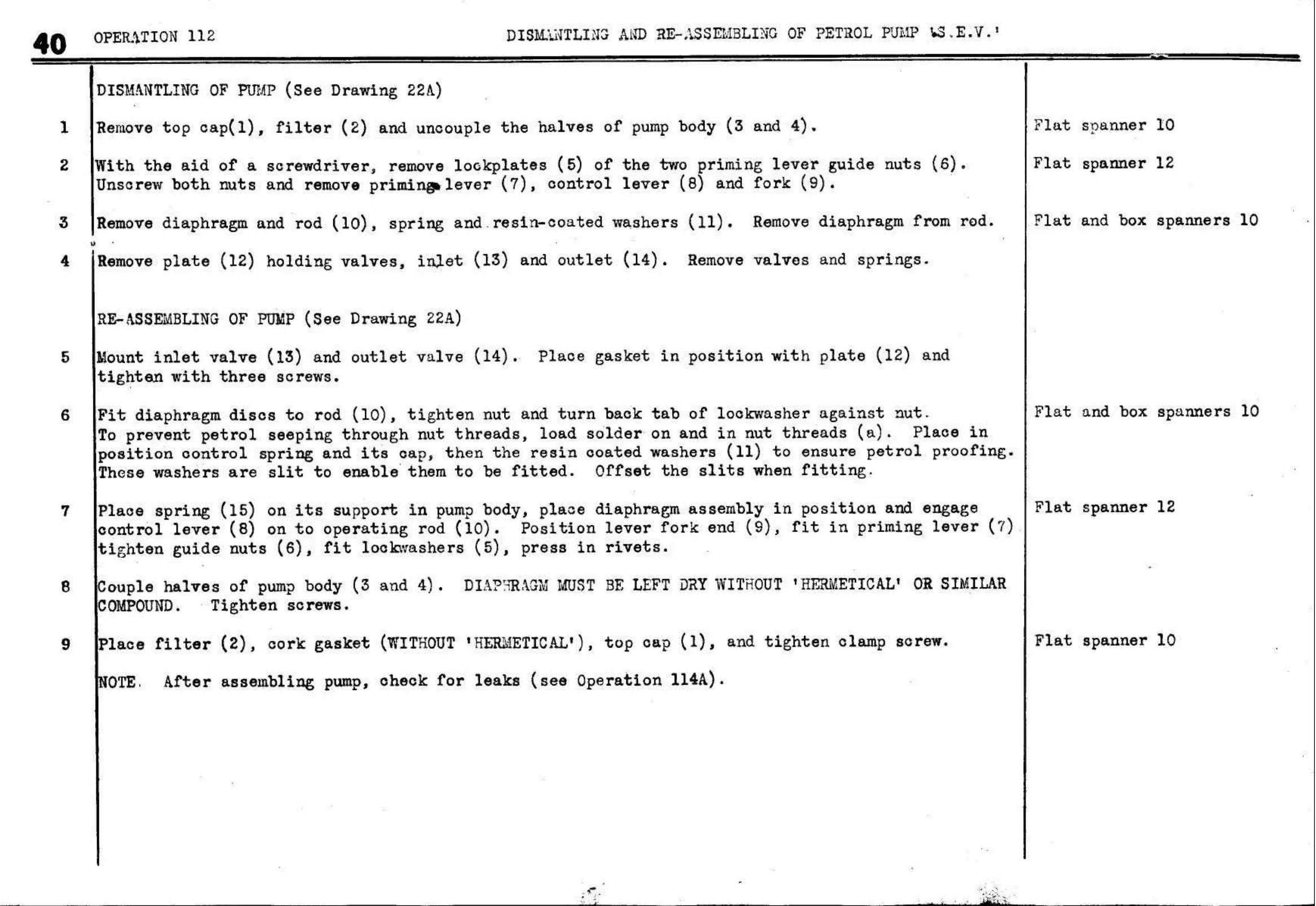

AE SUNS AVIN AAS (ee See. CT: RR TC easier” AS See ey S| got a IM DISMANTLING OF PUMP (See Drawing 22A) Remove top cap(1), filter (2) and uncouple the halves of pump body (3 and 4). Nith the aid of a screwdriver, remove (5) of the two priming lever guide nuts (6). Unscrew both nuts and remove priming lever (7), control lever (8) and fork (9). Remove diaphragm and rod (10), spring washers (11). Remove diaphragm from rod.
