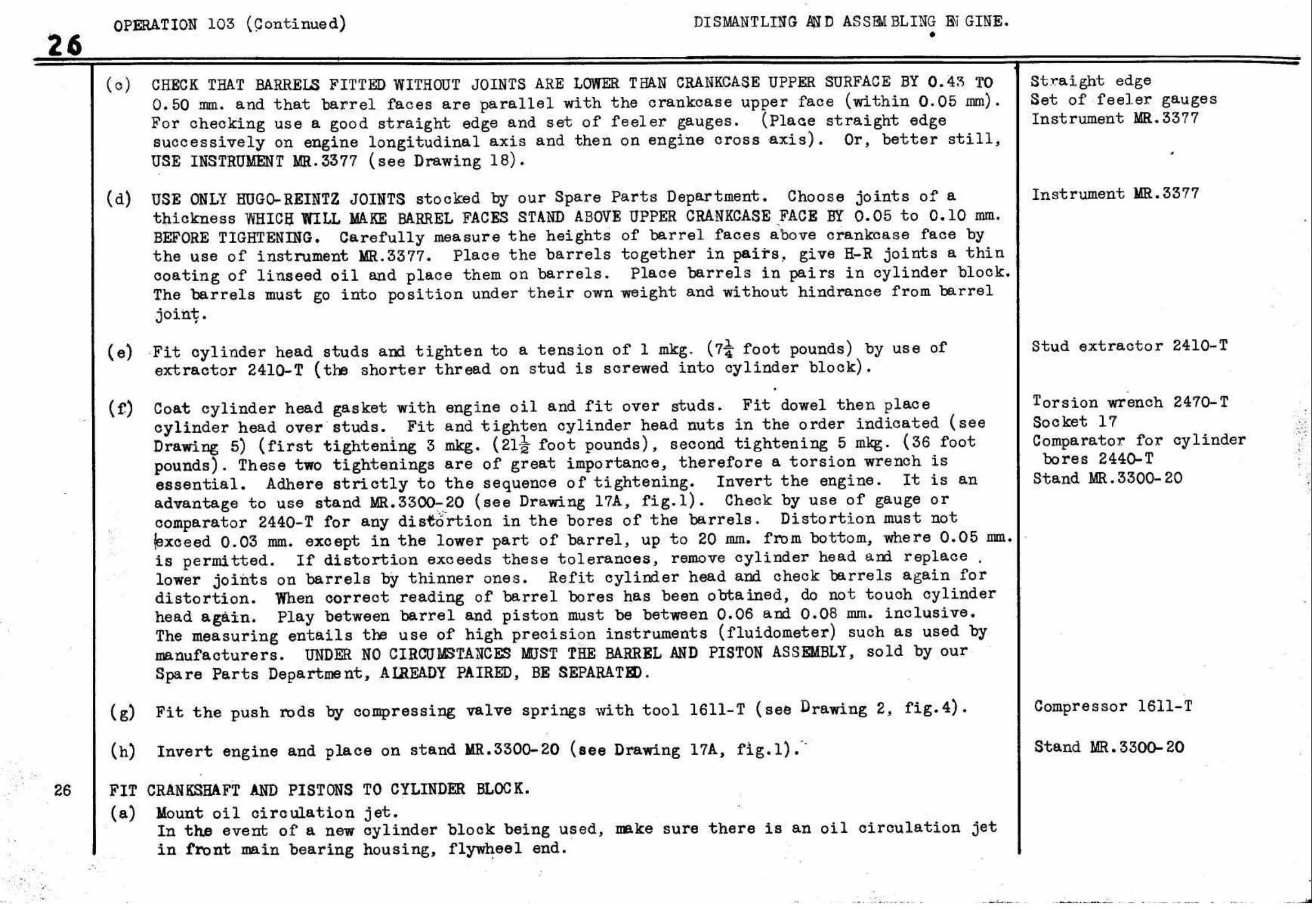

Dismantling – Engine, page 29 of 260 — Twelve & Fifteen Repair Manual — Text
Page ↔ Forum
Start a discussion
Find related SP-6
light15 · p.29
EXTRACTED TEXT — FOR REFERENCE ONLY

CHECK THAT BARRELS FITTED WITHOUT JOINTS ARE LOWER THAN CRANKCASE UPPER SURFACE BY 0.45 TO 0.50 mm. and that barrel faces are parallel with the crankcase upper face (within 0.05 mm). For checking use @ good straight edge and set of feeler gauges. (Place straight edge successively on engine longitudinal axis and then on engine cross axis). Or, better still, USE INSTRUMENT MR.3377 (see Drawing 18).
