REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

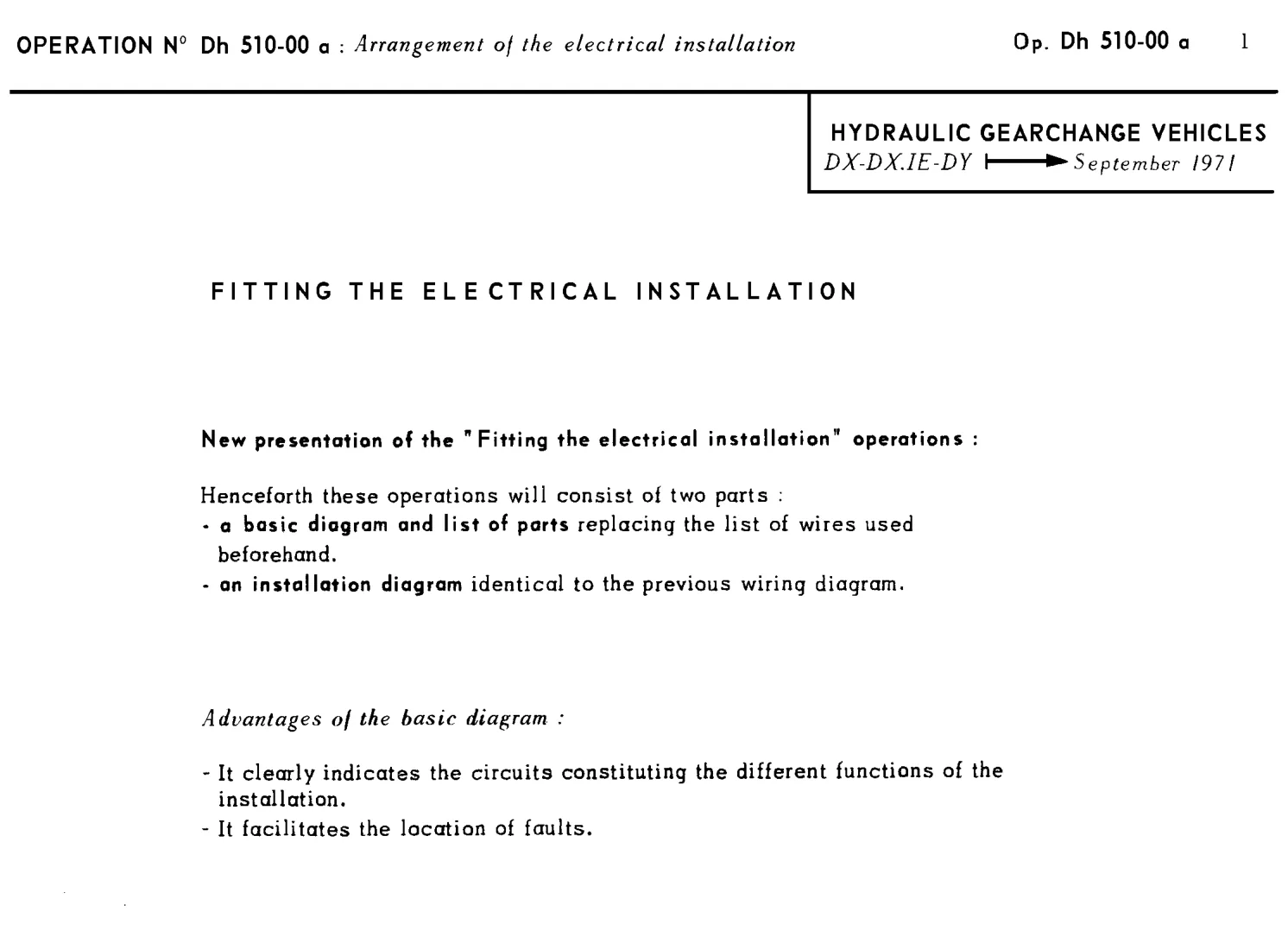

OPERATION N° Dh 510-00 a: Arrangement of the electrical installation Op. Dh 510-00 a 1 HYDRAULIC GEARCHANGE VEHICLES DX-DX.IE-DY ——® September 1971 FITTING THE ELECTRICAL INSTALLATION New presentation of the "Fitting the electrical installation" operations : Henceforth these operations will consist of two parts : - a basic diagram and list of parts replacing the list of wires used beforehand.
