Citroën Registry

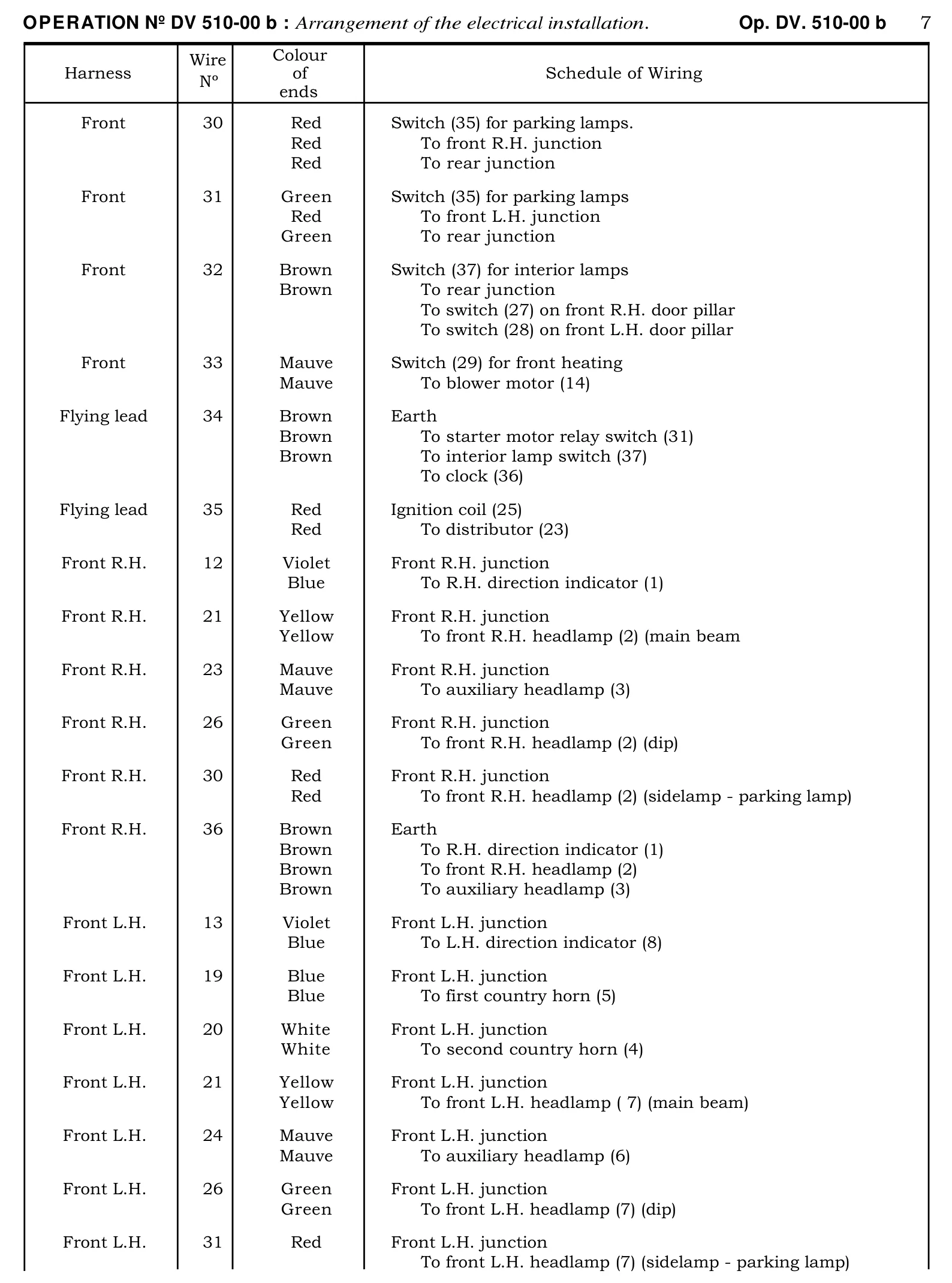

814 Repair Manual — Volume I — Page 298
Literature
Home
Citroën Repair Manual N°814
Volume I
SECTION OVERVIEW
|
Wiring diagram
Home
/
Literature
/
DSID
/
814 Repair Manual — Volume I
