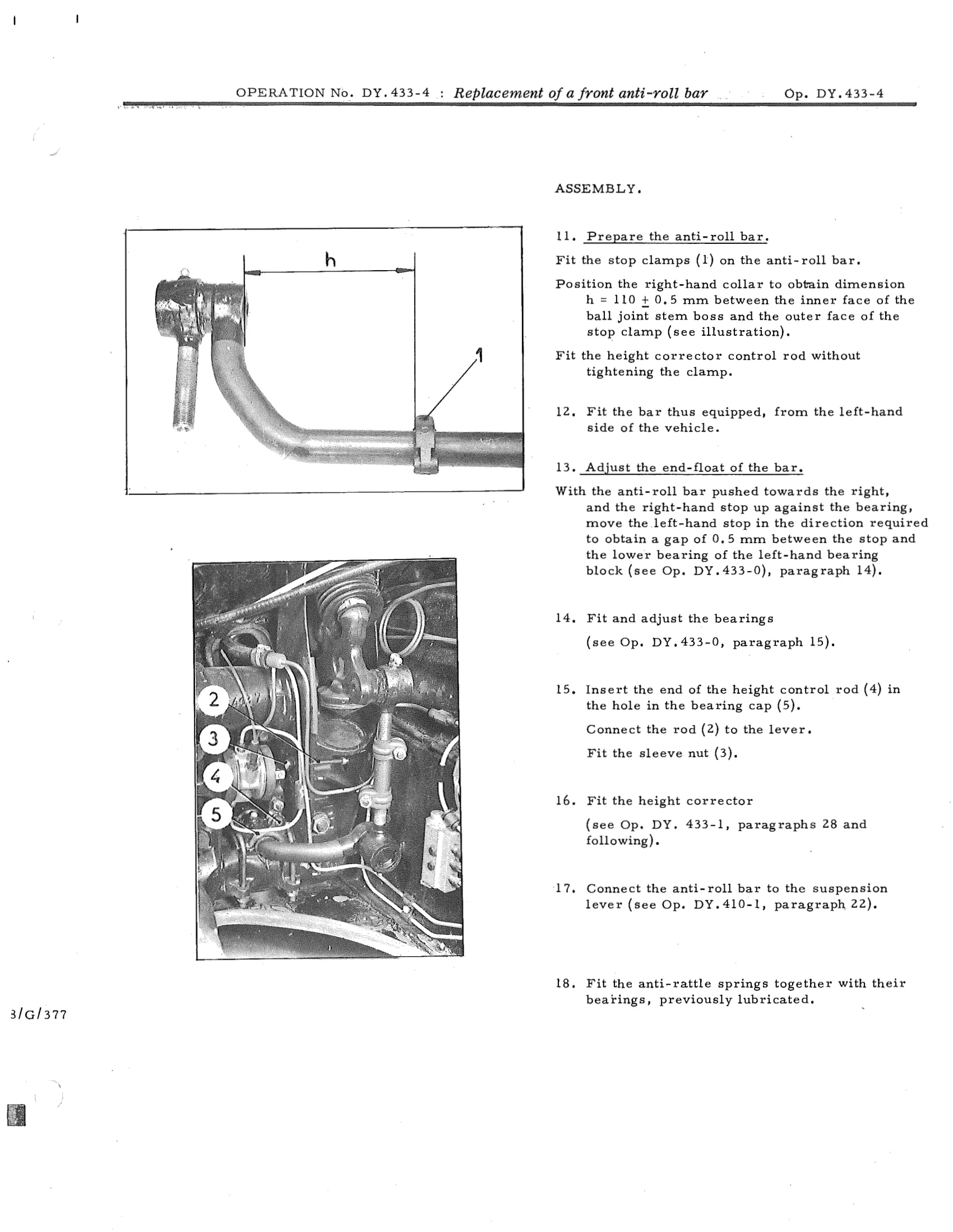

DS21 & DS21M / DS19A & DS19MA Repair Manual — Page 675

3/G/377 ASSEMBLY. ll. Prepare the anti-roll bar. Fit the stop clamps (1) on the anti-roll bar. Position the right-hand collar to obtain dimension h = 110 + 0.5 mm between the inner face of the ball joint stem boss and the outer face of the stop clamp (see illustration). Fit the height corrector control rod without tightening the clamp. 12, Fit the bar thus equipped, from the left-hand side of the vehicle. 13, Adjust the end-float of the bar.
