DS21 & DS21M / DS19A & DS19MA Repair Manual — Page 648

Citroën
Repair Manual — DS21 & DS21M / DS19A & DS19MA
N°518, Edition 1966
SECTION OVERVIEWReplacing an oil pump

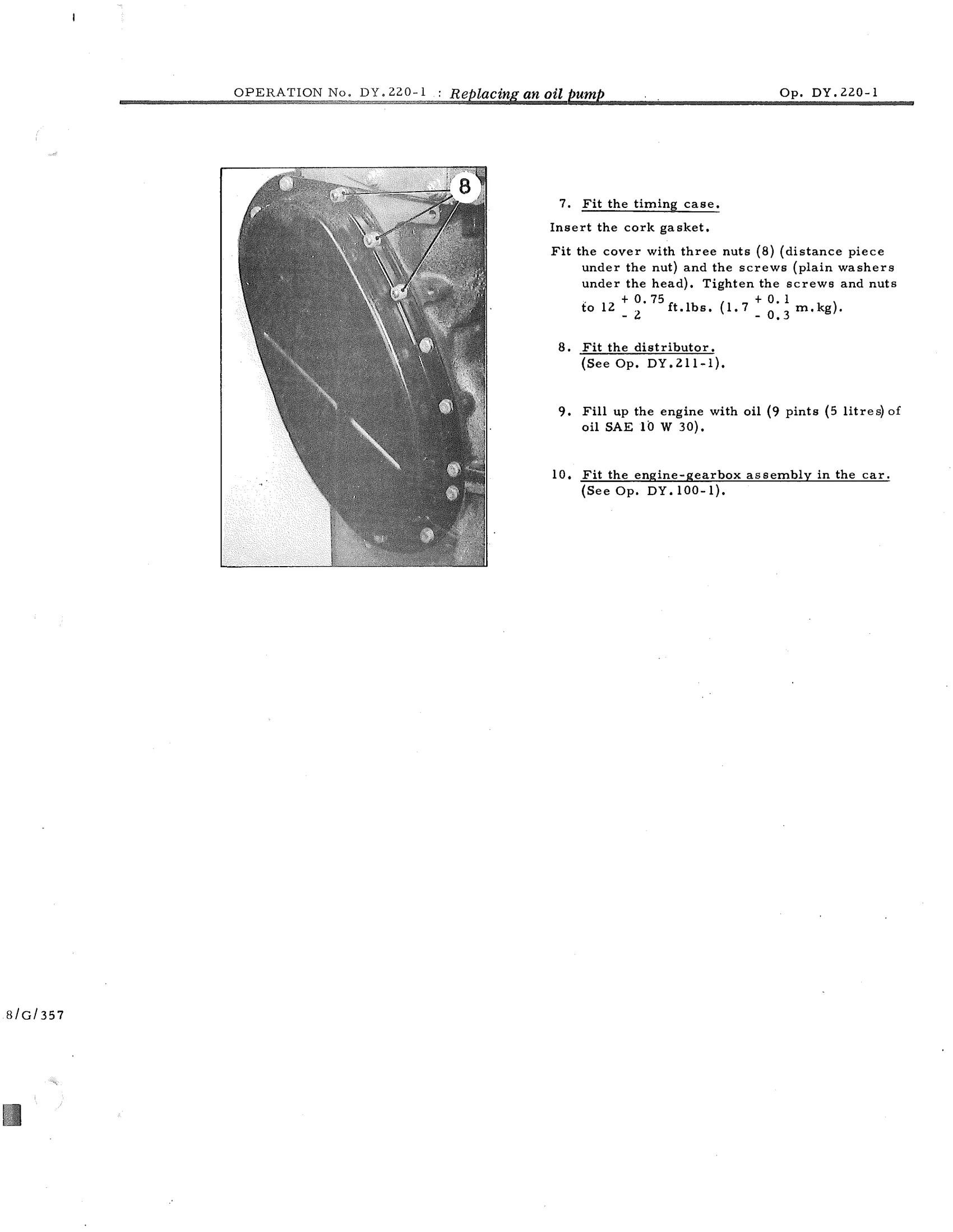

Replacing an oil pump, page 648 of 750 — DS21 & DS21M / DS19A & DS19MA Repair Manual
Page ↔ Forum
Start a discussion
Find related SP-6
518 · p.648
EXTRACTED TEXT — FOR REFERENCE ONLY

8/G/357 7. Fit the timing case. Insert the cork gasket. Fit the cover with three nuts (8) (distance piece under the nut) and the screws (plain washers under the head), Tighten the screws and nuts to12* 9 (1.7 1 Or} 2 - 0,3 mks). 8. Fit the distributor. (See Op. DY.211-1). 9. Fill up the engine with oil (9 pints (5 litres) of oil SAE 10 W 30). 10, Fit the engine-gearbox assembly in the car. (See Op. DY.100-1),
