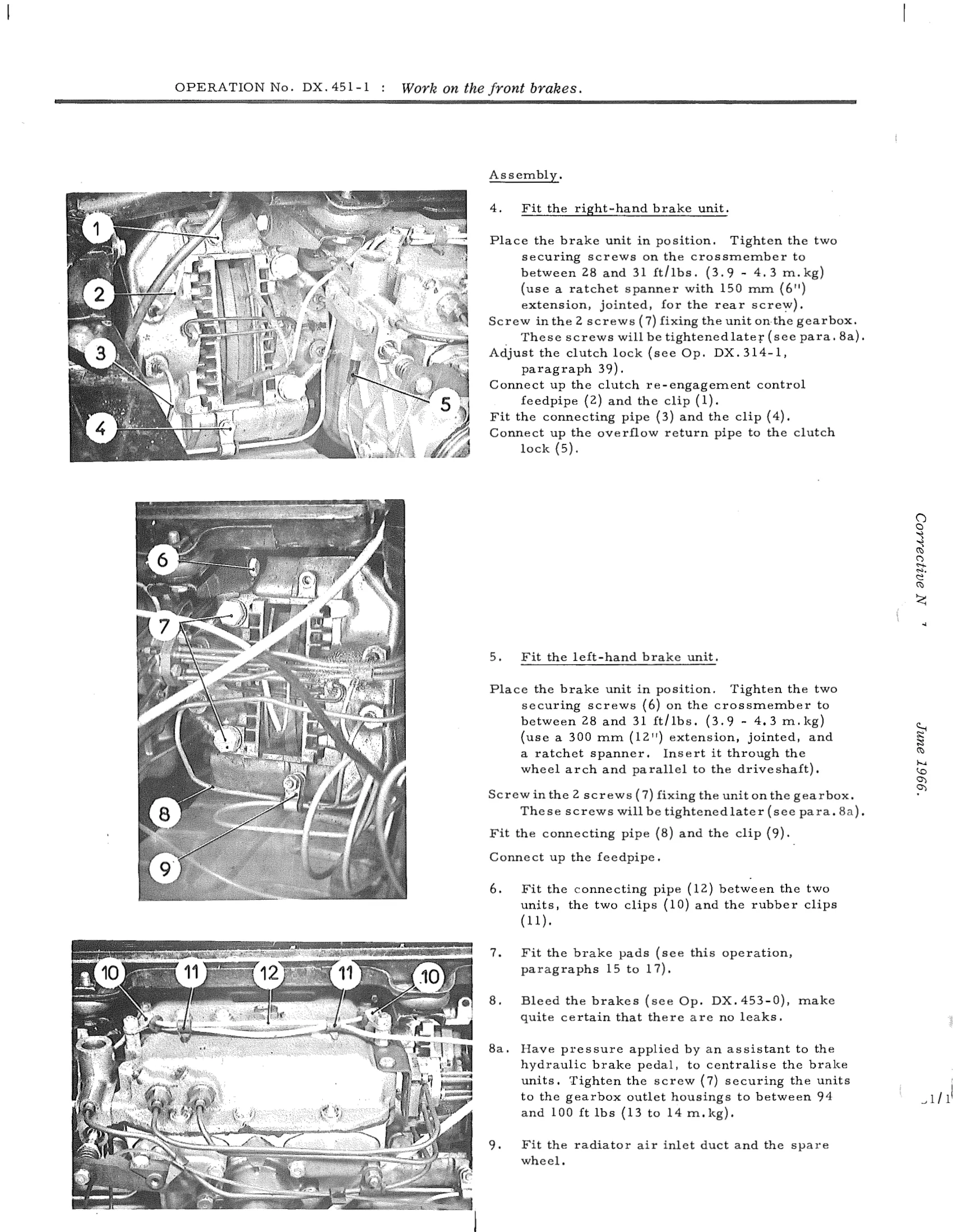

Assembly. 4. Fit the right-hand brake unit. Place the brake unit in position. Tighten the two securing screws on the to between 28 and 31 ft/lbs. (3.9 - 4.3 (use a ratchet spanner with 150 mm (6"') extension, jointed, for the rear screw). Screw 2 screws (7) fixing the unit on the gearbox. _ These screws will be tightened later (see para. 8a). Adjust the clutch lock (see Op. DX.314-1, paragraph 39). Connect up the clutch re-engagement control (2) and the clip (1). Fit the connecting pipe (3) and the clip (4). Connect up the overflow return pipe to the clutch lock (5).
