EXTRACTED TEXT — FOR REFERENCE ONLY

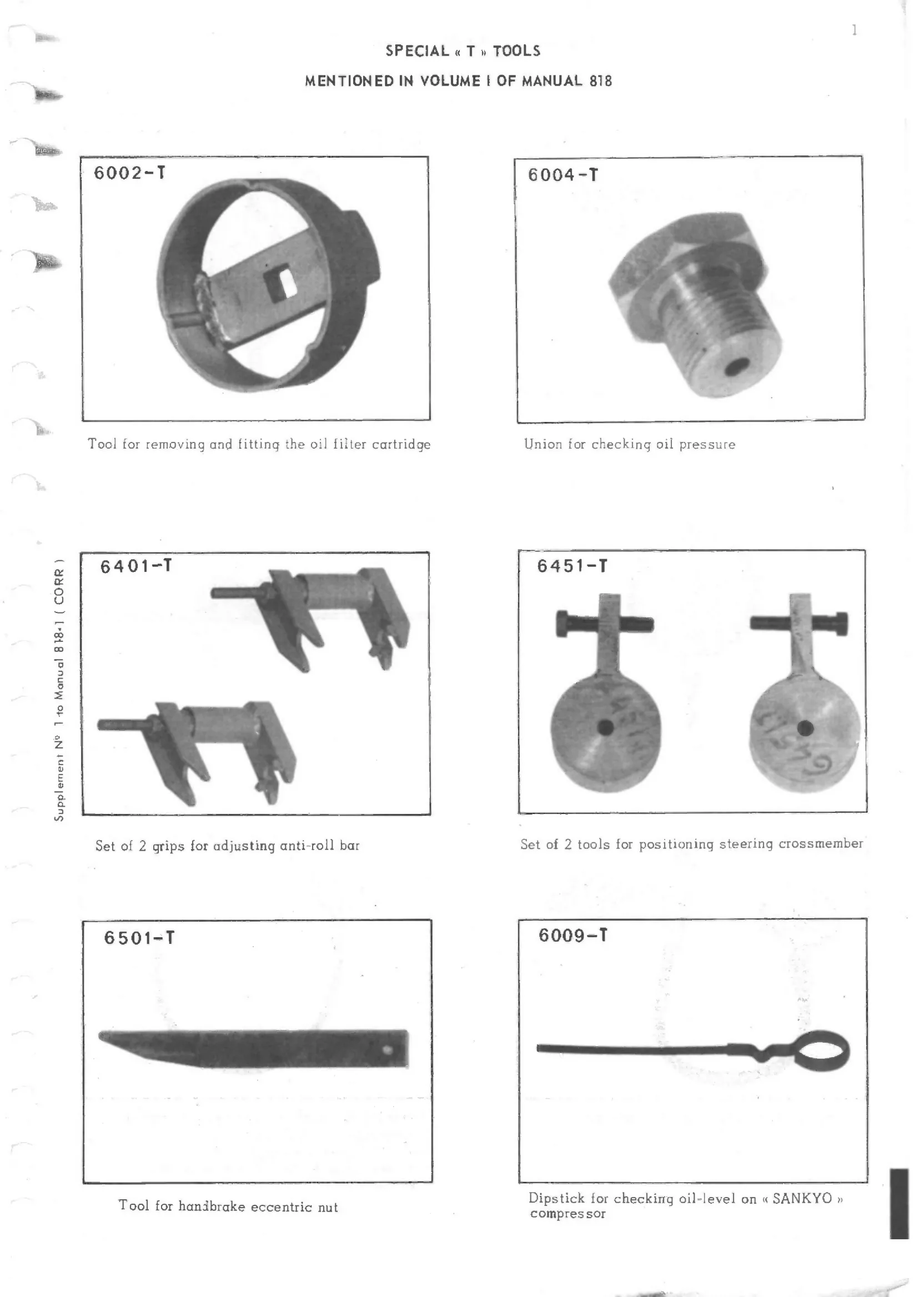

Supplement N® 1 +0 Manual 818+] ( CORR ) Tool for removing and fitting the oil] filter cartridge Union for checking oil pressure Set of 2 grips for adjusting anti-roll bar Tool for handbrake eccentric nut Set of 2 tools for positioning steering Dipstick for checking oil-level on « SANKYO »
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
