EXTRACTED TEXT — FOR REFERENCE ONLY

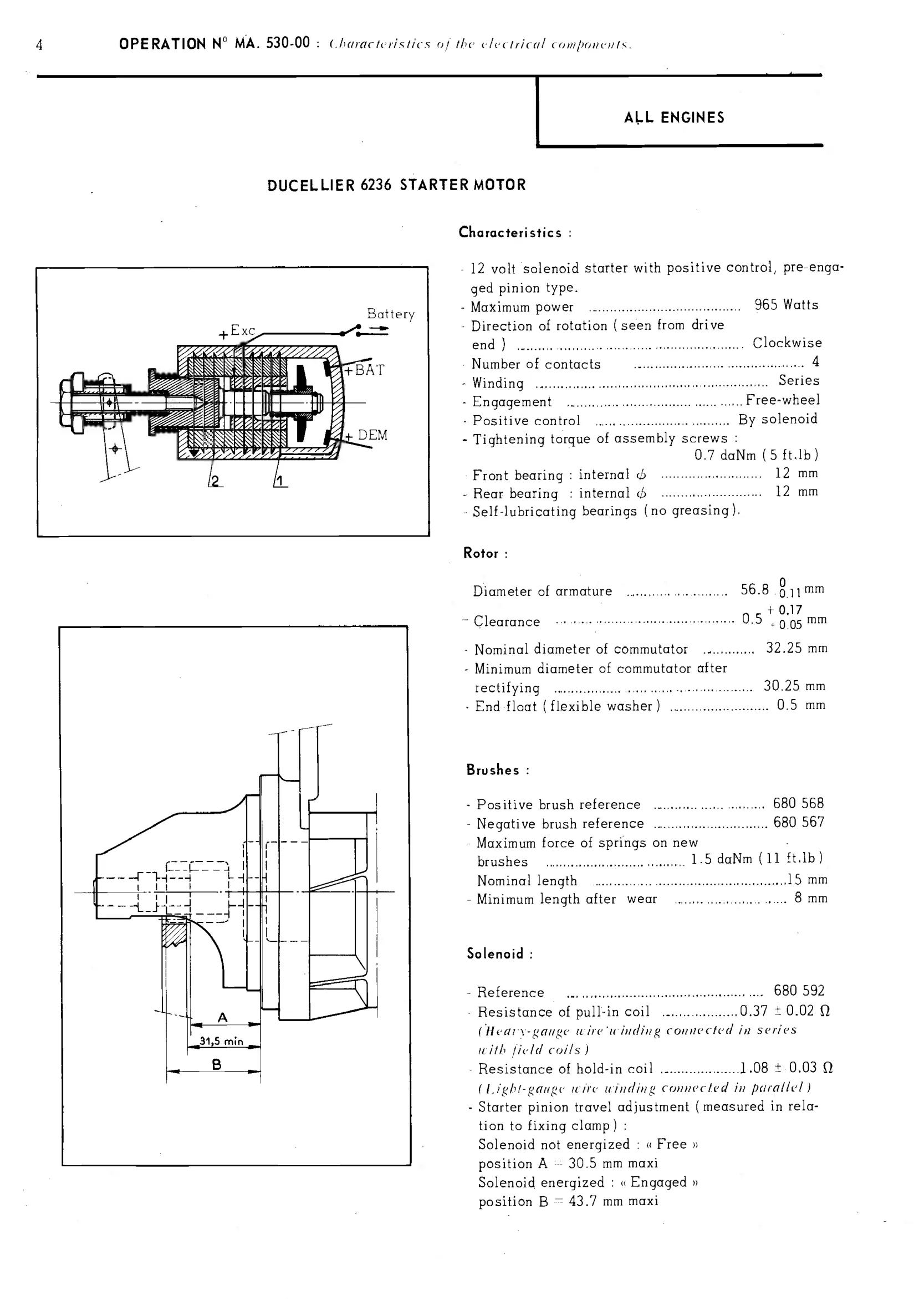

_————————————— DUCELLIER 6236 STARTER MOTOR Characteristics : - 12 volt solenoid starter with positive control, pinion type. - Maximum Power 965 Watts - Direction of rotation (seen from drive end ) Clockwise - Number of contacts - Winding - Engagement .. - Positive control woes By solenoid - Tightening torque of assembly screws : 0.7 daNm (5
Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
