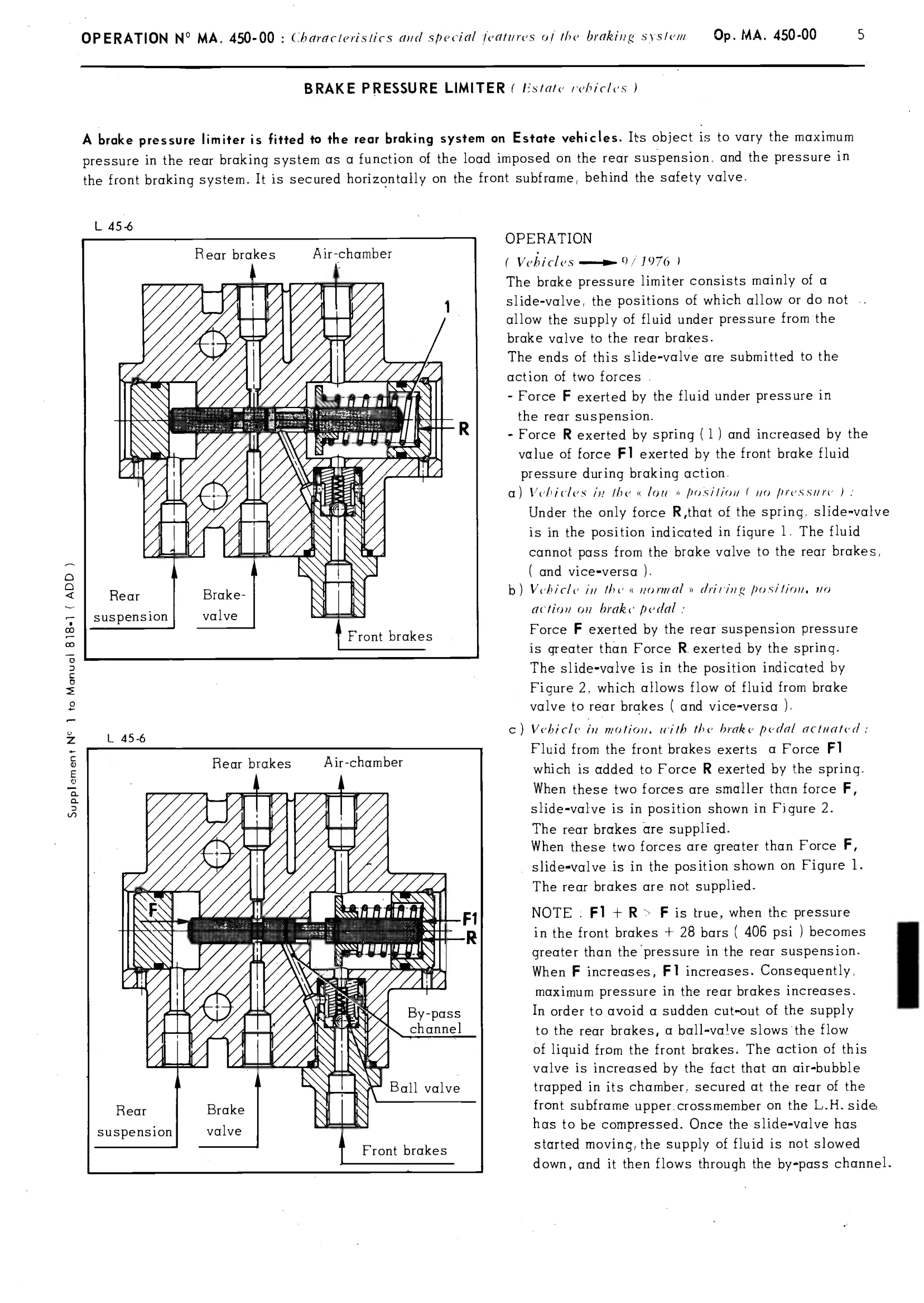

Supplement N& 1 to Manual 818+1 ( ADD ) A brake pressure limiter is fitted to the rear braking system on Estate vehicles. Its object is to vary the maximum pressure in the rear braking system as a function of the load imposed on the rear suspension. and the pressure in the front braking system. It is secured horizontally on the front behind the safety valve. L 45-4 OPERATION ( Vehicles ——w 9/1976) Rear brakes Air-chamber

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
