818 · p.246
EXTRACTED TEXT — FOR REFERENCE ONLY

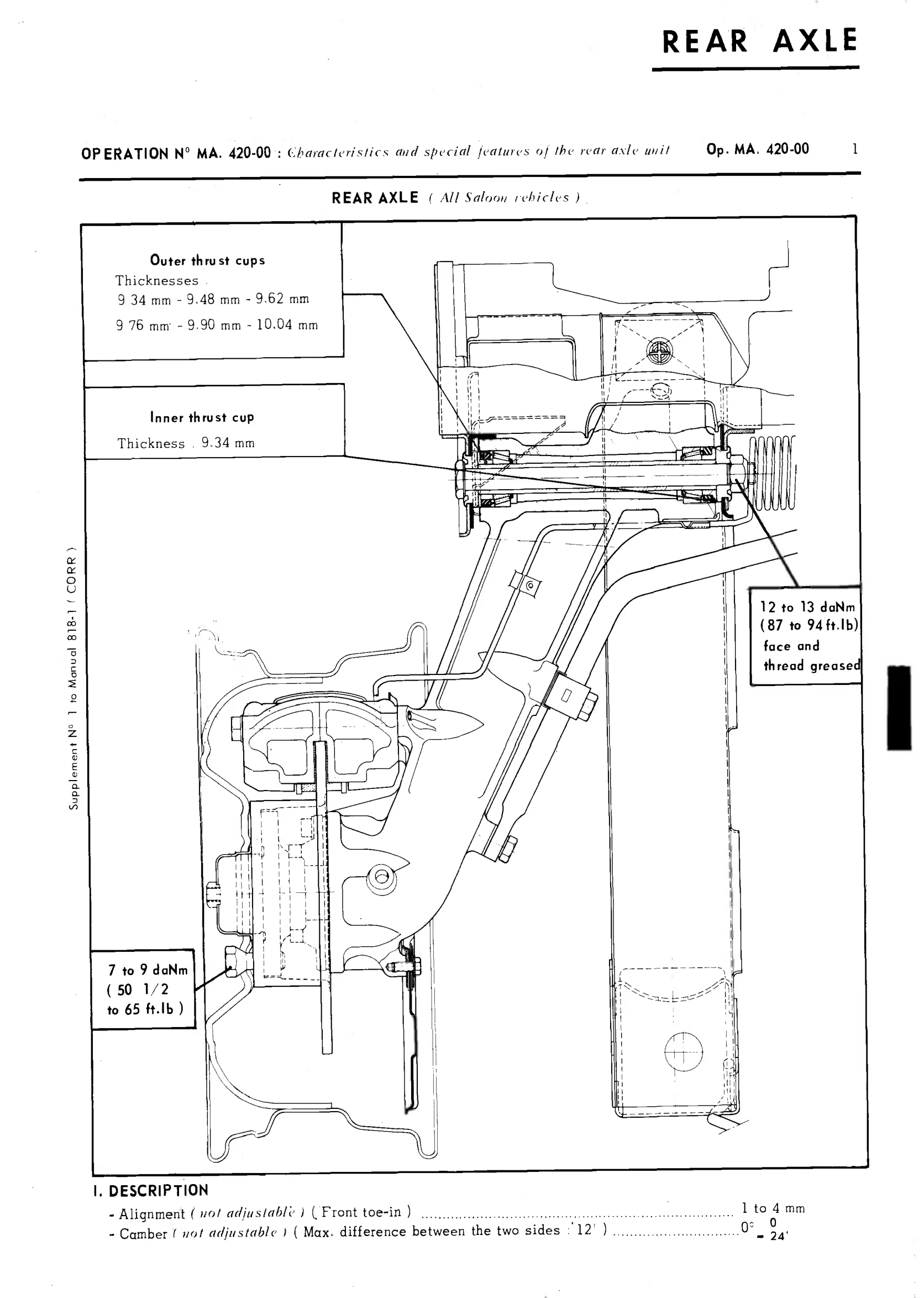

OP ERATION N° MA. 420-00: Characteristics and special features of the rear axle unit Op. MA. 420-00 1 REAR AXLE ( Al/ Saloon ) Outer thrust cups Thicknesses 9 34 mm - 9.48 mm - 9.62 mm 976 mm - 9.90 mm - 10.04 mm Inner thrust cup Thickness . 9.34 mm 12 to 13 daNm (87 to 94 ft.Ib) face and thread greased Supplement N® 1 to Monual 818-1 { CORR ) 7 to 9 daNm ; 4 Na (50 1/2 )) 1 : to 65 )

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
