Citroën Registry

818 Repair Manual (CX) | Page 228

Citroën Repair Manual
CX Vehicles, Volume I
N°818, February 1975
SECTION OVERVIEWChecking hydraulic components

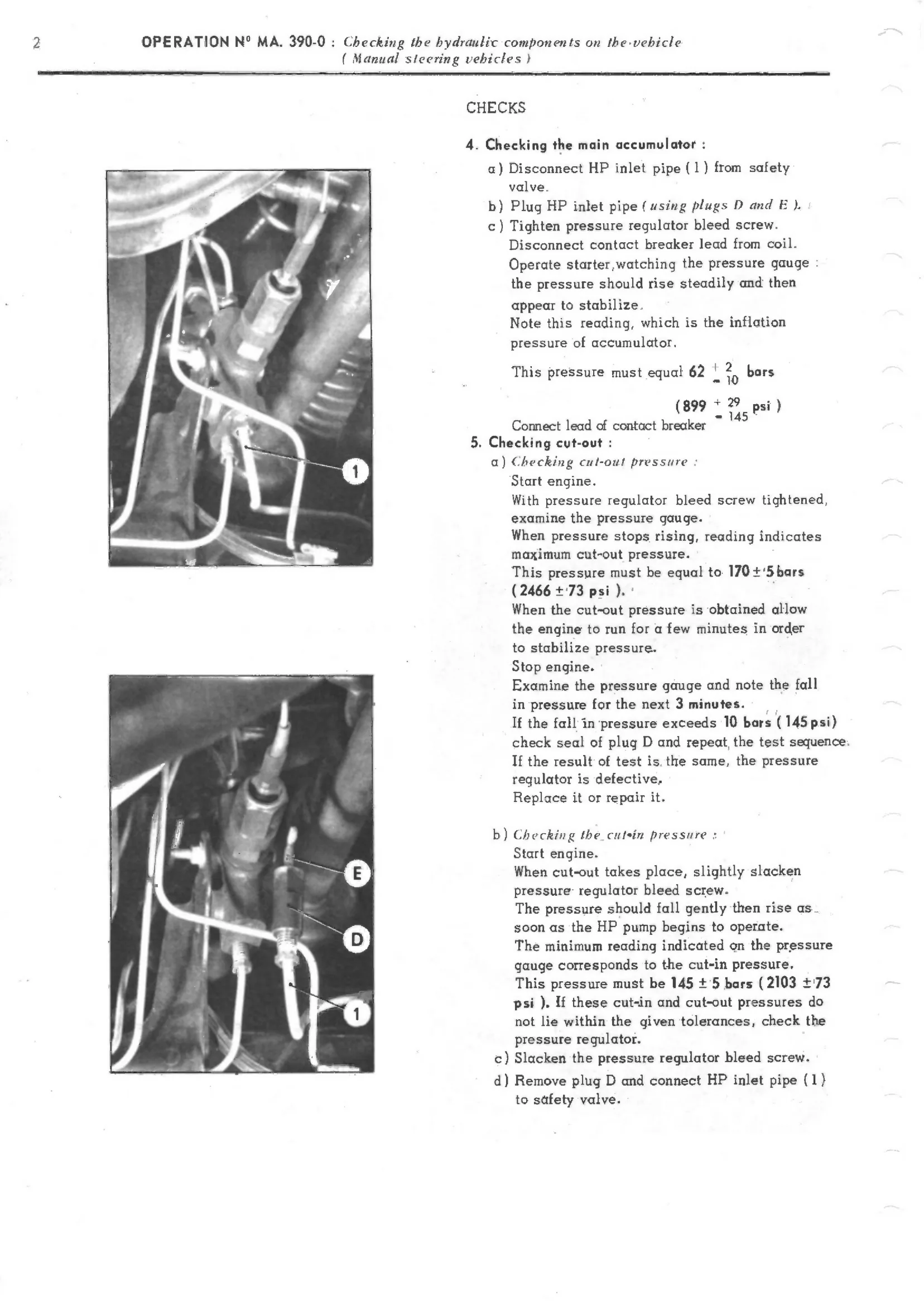

Checking hydraulic components, page 228 of 389 — CX Repair Manual — Characteristics, Adjustments, Checks
Page ↔ Forum
Start a discussion
Find related SP-6
818 · p.228
EXTRACTED TEXT — FOR REFERENCE ONLY

4. Checking the main accumulator : a) Disconnect HP inlet pipe (1) from safety valve. b) Plug HP inlet pipe (using plugs D and E ). c) Tighten pressure regulator bleed screw. Disconnect contact breaker lead from coil. Operate the pressure gauge : the pressure should rise steadily and then appear to stabilize. Note this reading, which is the inflation pressure of accumulator. This pressure must equal 62 | $0 bors

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
