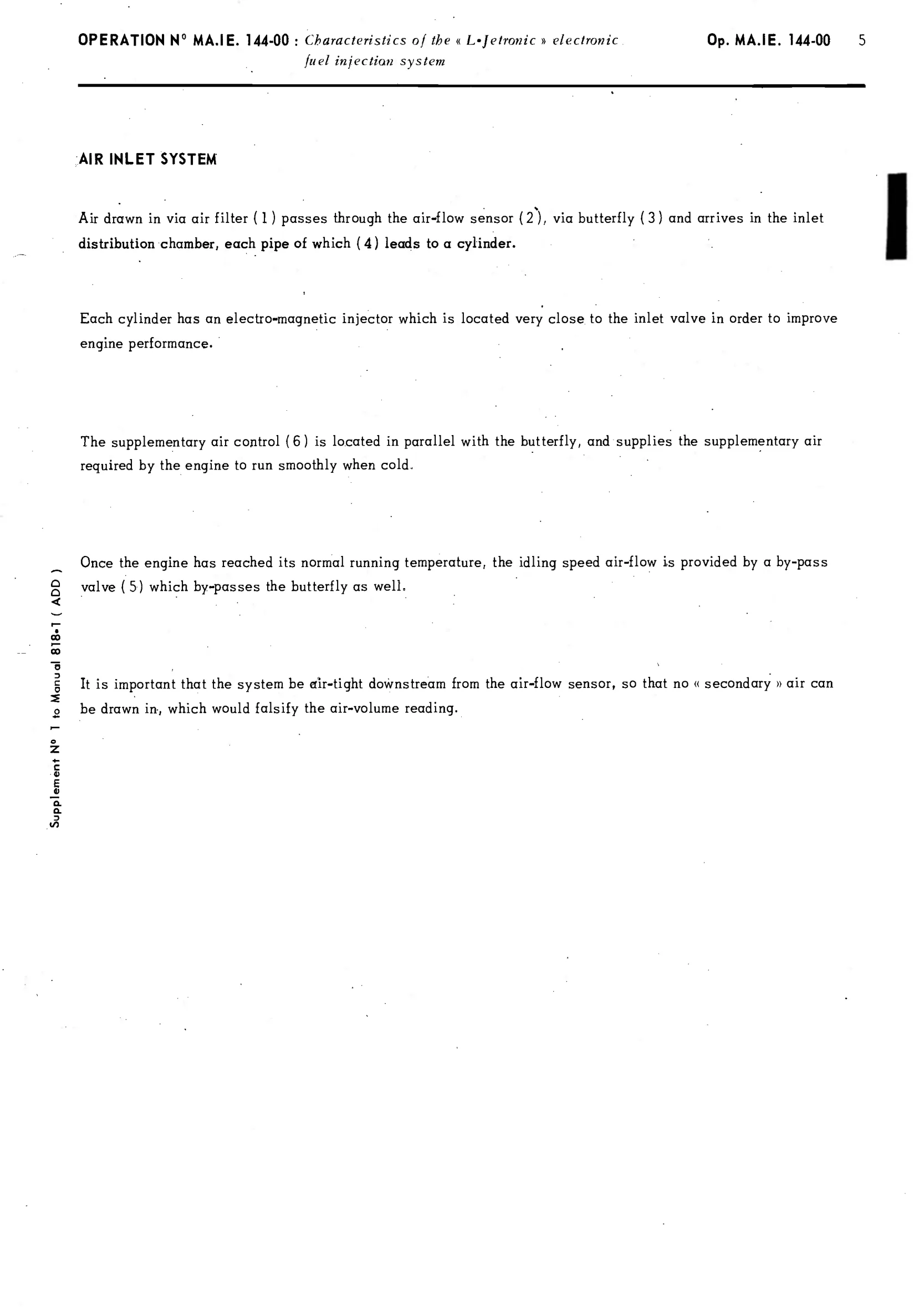

Supplement N° 1 to Manual 818+1 ( ADD ) AIR INLET SYSTEM Air drawn in via air filter (1) passes through the air-flow sensor (2), via butterfly (3) and arrives in the inlet distribution chamber, each pipe of which (4) leads to a cylinder. Each cylinder has an electro-magnetic injector which is located very close to the inlet valve in order to improve engine performance.

Vehicle Application: Citroën CX 2000 · CX 2200 · CX 2400 · February 1975
