814 Repair Manual — Volume I — Page 450
Literature
Home
Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

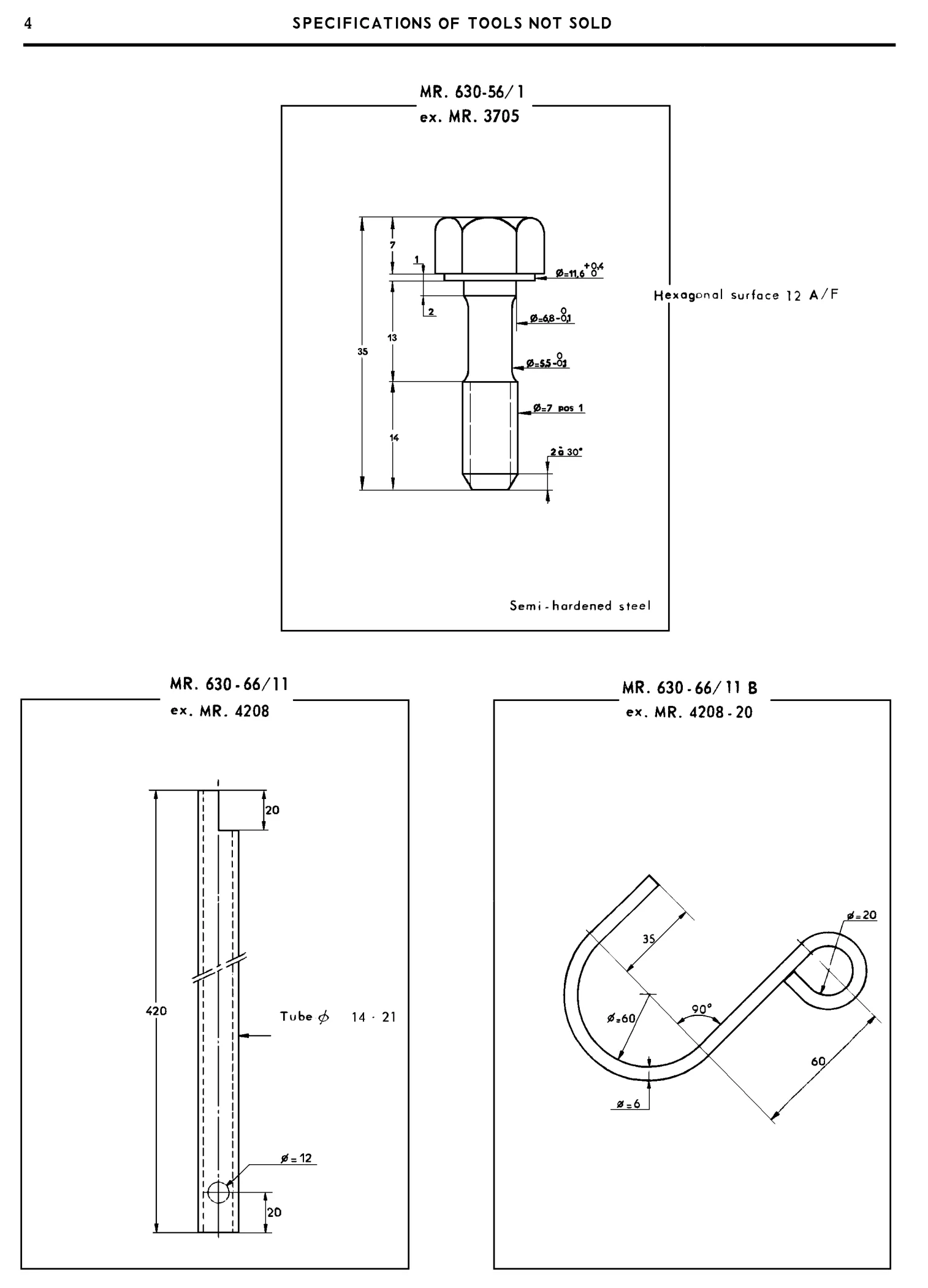

Drawings of tools not sold.
