814 Repair Manual — Volume I
/

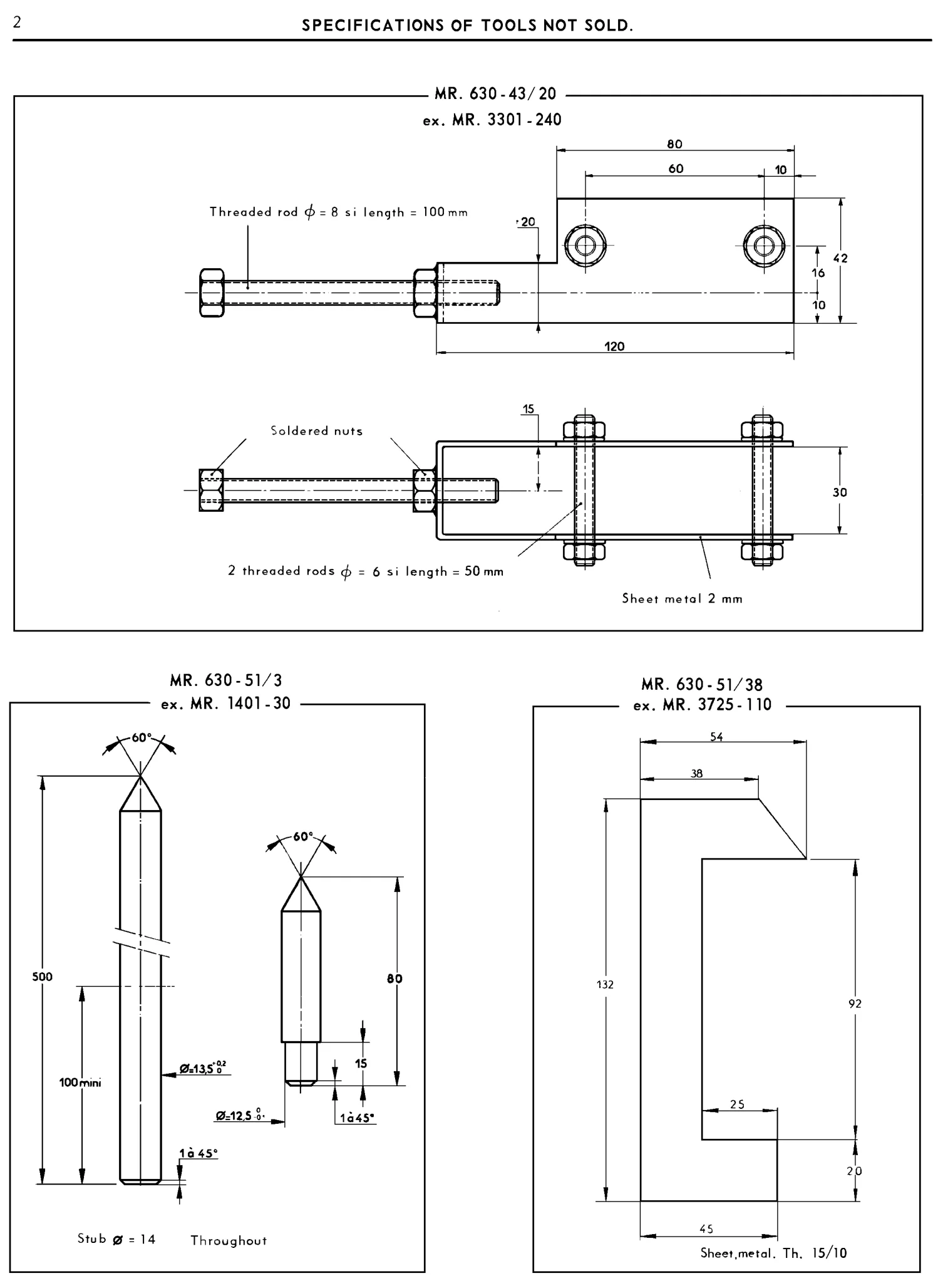

Drawings of tools not sold.
Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW
Drawings of tools not sold.
