REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

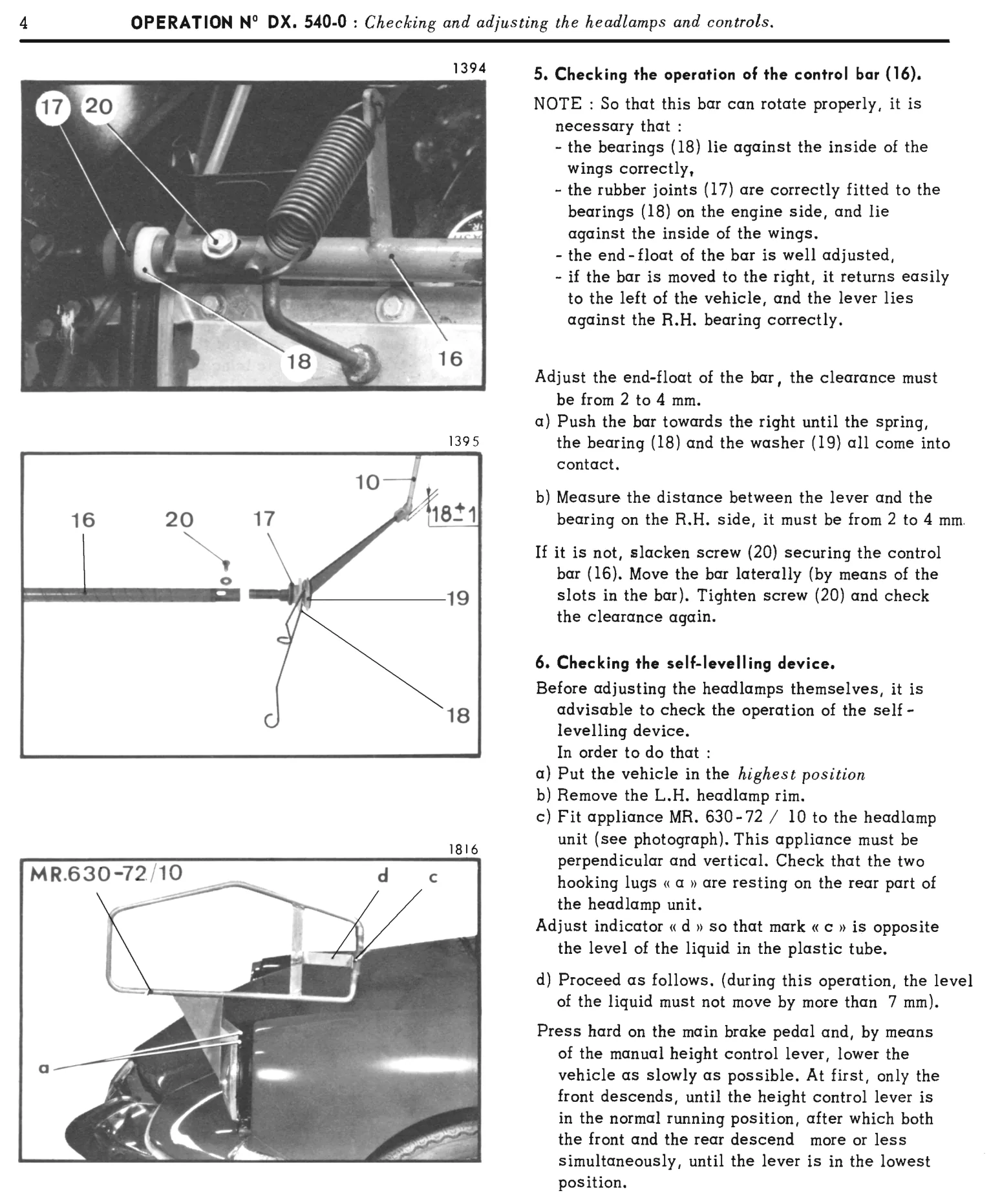

4 OPERATION N° DX. 540-0 : Checking and adjusting the headlamps and controls. 1394 5. Checking the operation of the control bar (16). NOTE : So that this bar can rotate properly, it is necessary that : - the bearings (18) lie against the inside of the wings correctly, - the rubber joints (17) are correctly fitted to the bearings (18) on the engine side, and lie against the inside of the wings. - the end-float of the bar is well adjusted,
