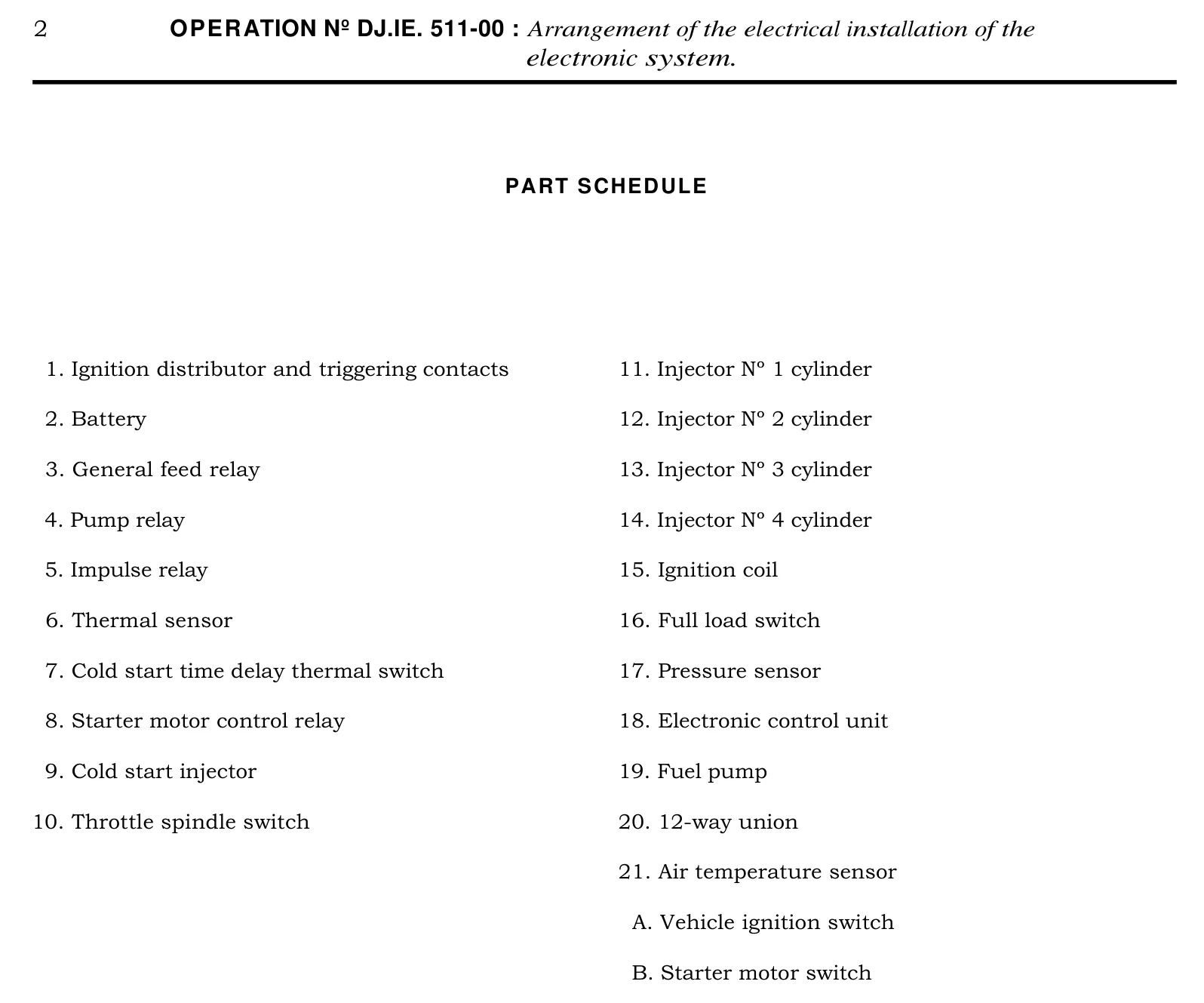

OPERATION NE DJ.IE. 511-00 : Arrangement of the electrical installation of the electronic system. PART SCHEDULE . Ignition distributor and triggering contacts 11. Injector N° 1 cylinder . Battery 12. Injector N° 2 cylinder . General feed relay 13. Injector N° 3 cylinder . Pump relay 14. Injector N° 4 cylinder . Impulse relay 15. Ignition coil . Thermal sensor 16. Full load switch . Cold start time delay thermal switch 17. Pressure sensor
