814 Repair Manual — Volume I — Page 377

Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

Wiring schedule

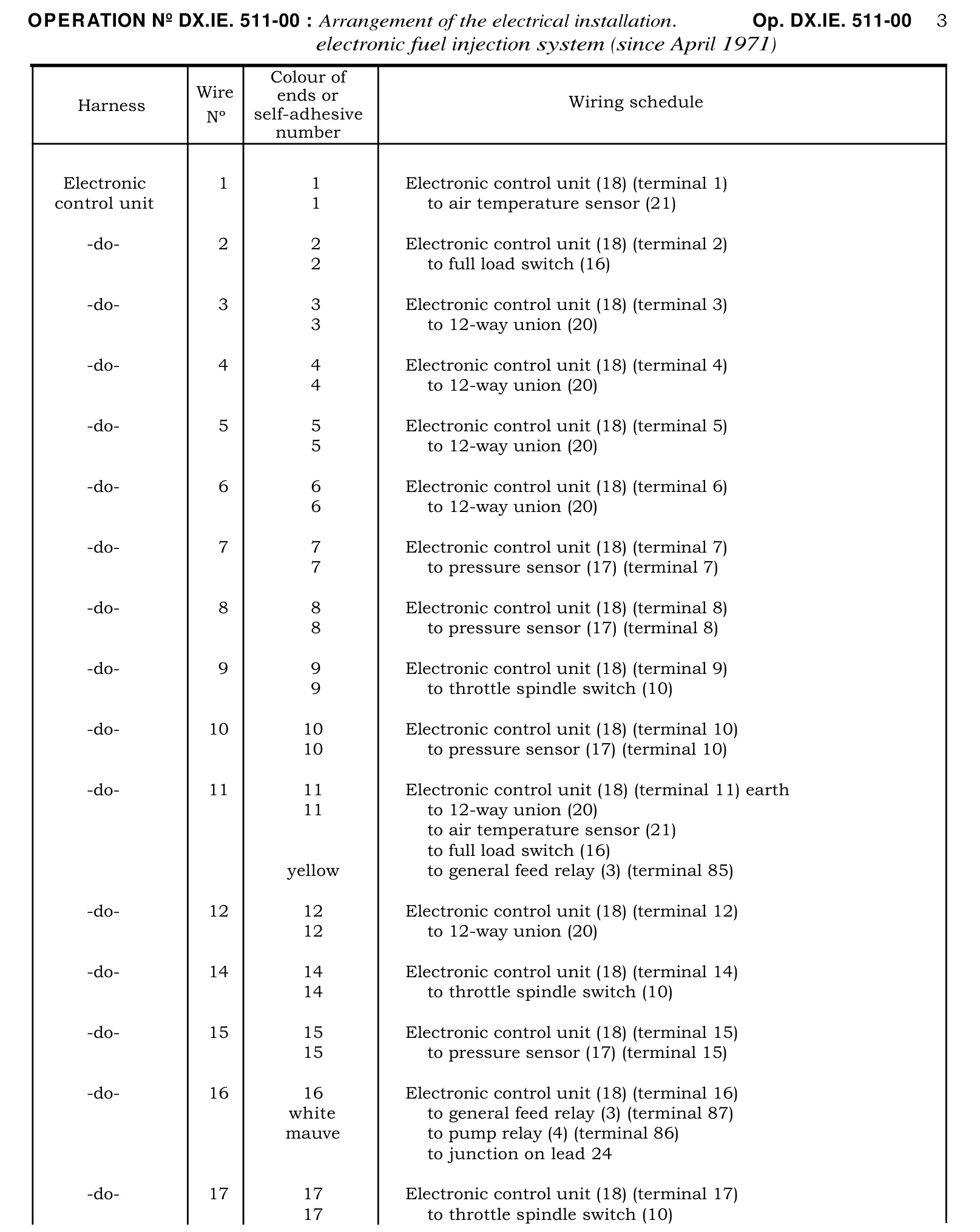

Wiring schedule, page 377 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.393)

- 940 rpm with a PARIS-RHONE A 13 R 110 and A13R 109, or DUCELLIER 7551 A and 7551 B alternator. Adjust the rheostat to obtain a voltage of 14 volts : the output current should be 16 amps. b) Let the alternator turn at 3600 rpm : To do this bring the engine speed to : - 2350 rpm with a PARIS-RHONE A 13 R 82, or DUCELLIER 7530 A and 7530 B alternator. - 2060 rpm with a PARIS-RHONE A 13 R 110
