814 Repair Manual — Volume I — Page 310

Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

Wiring schedule

Wiring schedule, page 310 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

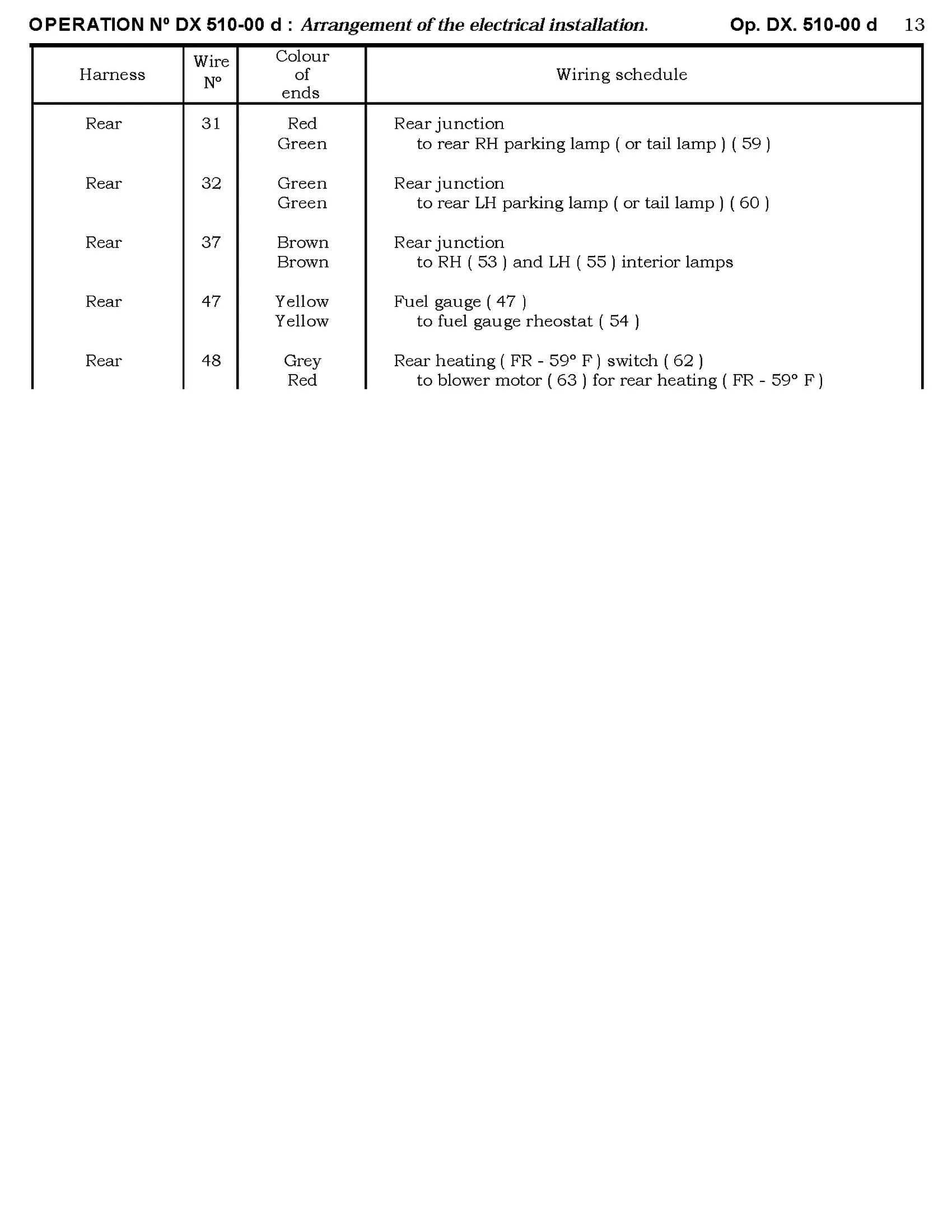

OPERATION N° DX 510-00 d : Arrangement of the electrical installation. Op. DX. §10-00d 13 ate —_— Harness Wiring schedule
