Wiring diagram
Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW
Wiring diagram
Choose a section…
Title Page (p.1)
Using the manual (p.2)
Factory Type symbols (p.8)
General characteristics (p.10)
Grnd clearance, weight (p.11)
Tyres/rims, dimensions (p.10)
Advice and precautions (p.13)
Electrical precautions (p.13)
LHS2 (p.15)
LHM (p.16)
Hydraulic work - general (p.17)
Draining the fluid (p.21)
Refilling (p.22)
Approved pastes, glues, solvents (p.25)
Engine (p.27)
Data (p.27)
Oil circulation diagram (p.28)
Cross-section drawings (p.29)
Data (IE) (p.36)
Cross-section (IE) (p.37)
Oil circulation (IE) diagram (p.39)
Adjusting valve clearances (p.40)
Adjusting IE valve clearances (p.42)
Adjusting engine mountings (p.44)
Weber carburettor (p.46)
Setting clutch clearance and idle (bvh) (p.51)
Adjusting idle speed (bvm) (p.53)
Adjusting accelerator control (p.54)
Adjusting idle (post Sep '72 (p.55)
Adjusting idle (BW) (p.56)
Adjusting EFI (bvh) (p.57)
Adjusting EFI (bvm) (p.60)
Adjusting EFI (bw) (p.61)
Using Citroen tester (p.62)
Using Bosch tester (p.90)
Fuel pump -EFI (p.116)
Fuel pump - carburettor (p.117)
Ignition (p.119)
Ignition advance curves (p.119)
Set static timing to '71 (p.124)
Set static timing '71-> (p.125)
Set timing w. strobe (p.127)
Test-bench distributor check (p.133)
Checking a coil (p.134)
Setting IE static timing (p.135)
Test bench check (IE) (p.137)
Setting IE static timing with strobe (p.138)
Check oil pressure (p.141)
Check Thermostat (p.142)
Adjusting pulleys and belts (p.143)
Clutch (p.147)
Clutch mechanism (p.148)
Basic adjust. (bvh) (p.51)
Control (hydraulic) (p.153)
Control (Manual) (p.157)
Torque converter (p.161)
Gearbox (p.163)
4-speed (p.163)
Hydraulic gearchange (p.168)
Manual gearchange (p.172)
5-speed (p.174)
Automatic gearbox (p.177)
Drive shafts (p.197)
Hydraulic system (p.200)
Source and reserve of pressure (p.200)
Check hydraulic parts on vehicle (p.206)
Checking sphere pressure (p.212)
Front Axle - data (p.213)
Adjusting camber and toe-in (p.216)
Rear Axle (p.218)
Suspension (p.220)
Height pre-adjustment (p.223)
Adjusting front anti-roll bar (p.227)
Adjusting manual height control (p.228)
Adjust man. ht. control rods (p.226)
Steering (p.230)
Adjusting lateral and angular position of the steering (p.233)
Set toe-in, adjust lock (p.234)
Adjusting crossover pressure (p.235)
Adjust straight-ahead posn (p.a.s.) (p.236)
Brakes (p.239)
All except DV-DT and DP (p.239)
DV, DT, DP (p.240)
All types - data (p.241)
Adjusting brakes (p.243)
Bleeding brakes (p.245)
Brake pedal control (p.247)
Brake control valve (p.249)
Security valve (p.251)
Parking brake adjustment (p.253)
Electricity (p.255)
DX-DJ Sept'65 - Sept'66 (p.255)
Wiring diagram (p.256)
Key to wiring diagram (p.257)
Wiring schedule (p.258)
DY, DL, DE Sept '65- Sept 66 (p.262)
Bulb table (p.262)
Wiring Diagram (p.263)
Key to wiring diagram (p.264)
Wiring schedule (p.265)
DX, DJ, DY, DL Sept '66- Sept '67 RH Battery (p.270)
Key to wiring diagram (p.270)
Wiring diagram (p.271)
Schedule of wiring (p.272)
DV Sept '66- Sept '67 (p.277)
Bulb table (p.277)
Wiring diagram (p.278)
Key to wiring diagram (p.279)
Schedule of wiring (p.280)
DX, DJ, DY, DL Sept - Dec '67 (p.285)
Bulb table (p.285)

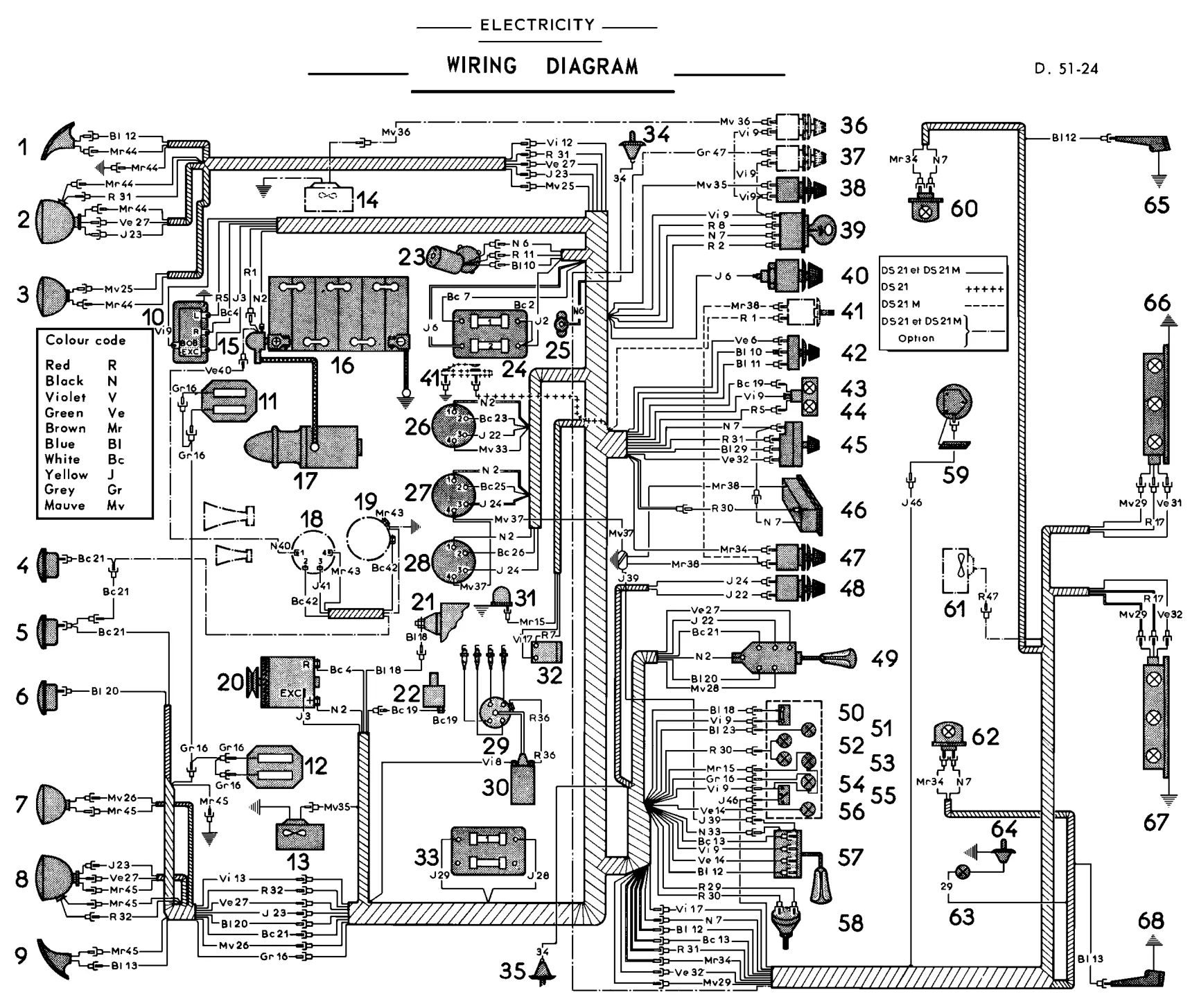

Wiring diagram (p.286)
