Citroën Registry
814 Repair Manual — Volume I — Page 263
Literature
Home
Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

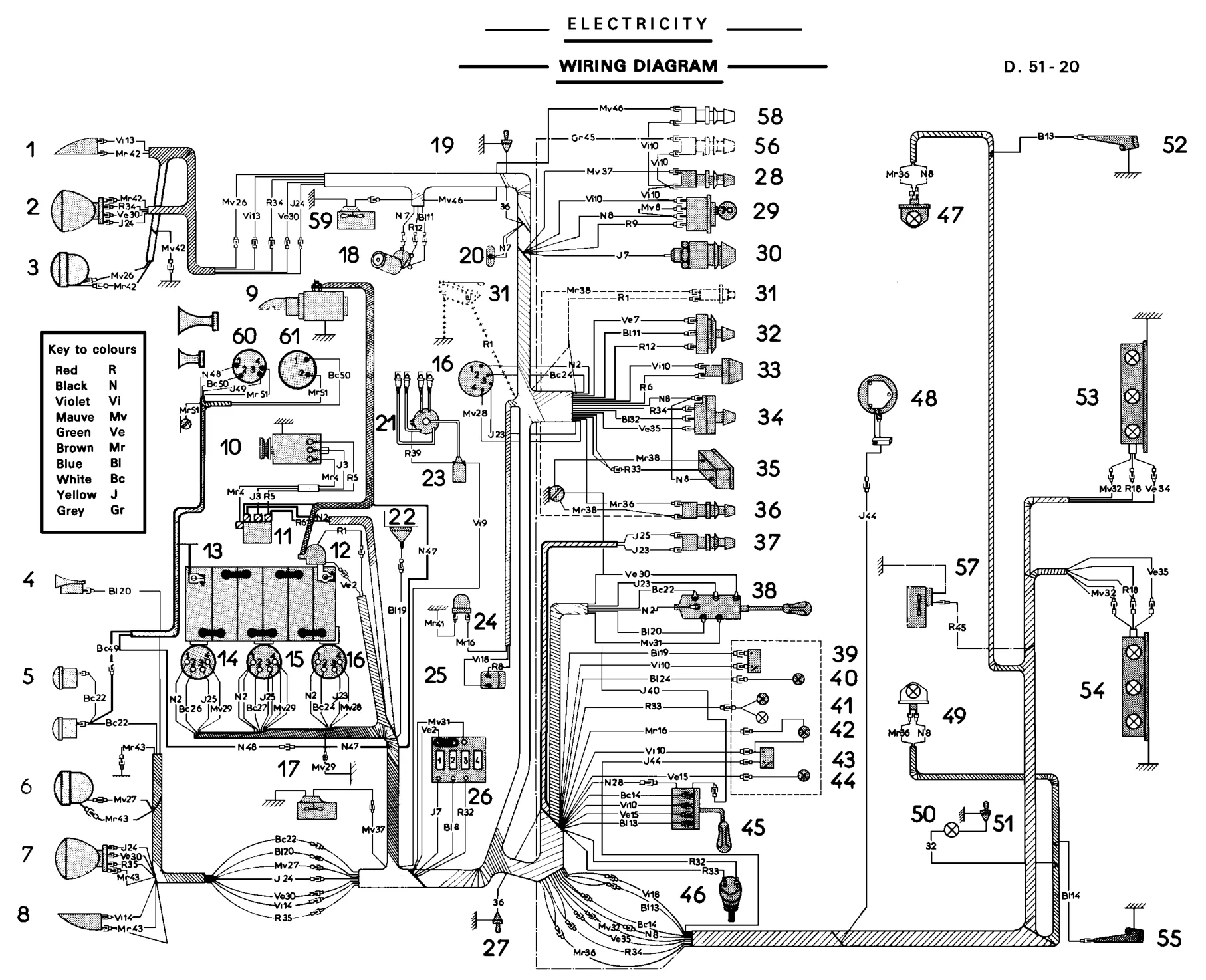

Wiring Diagram
