Citroën Registry
814 Repair Manual — Volume I — Page 241
Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

All types - data

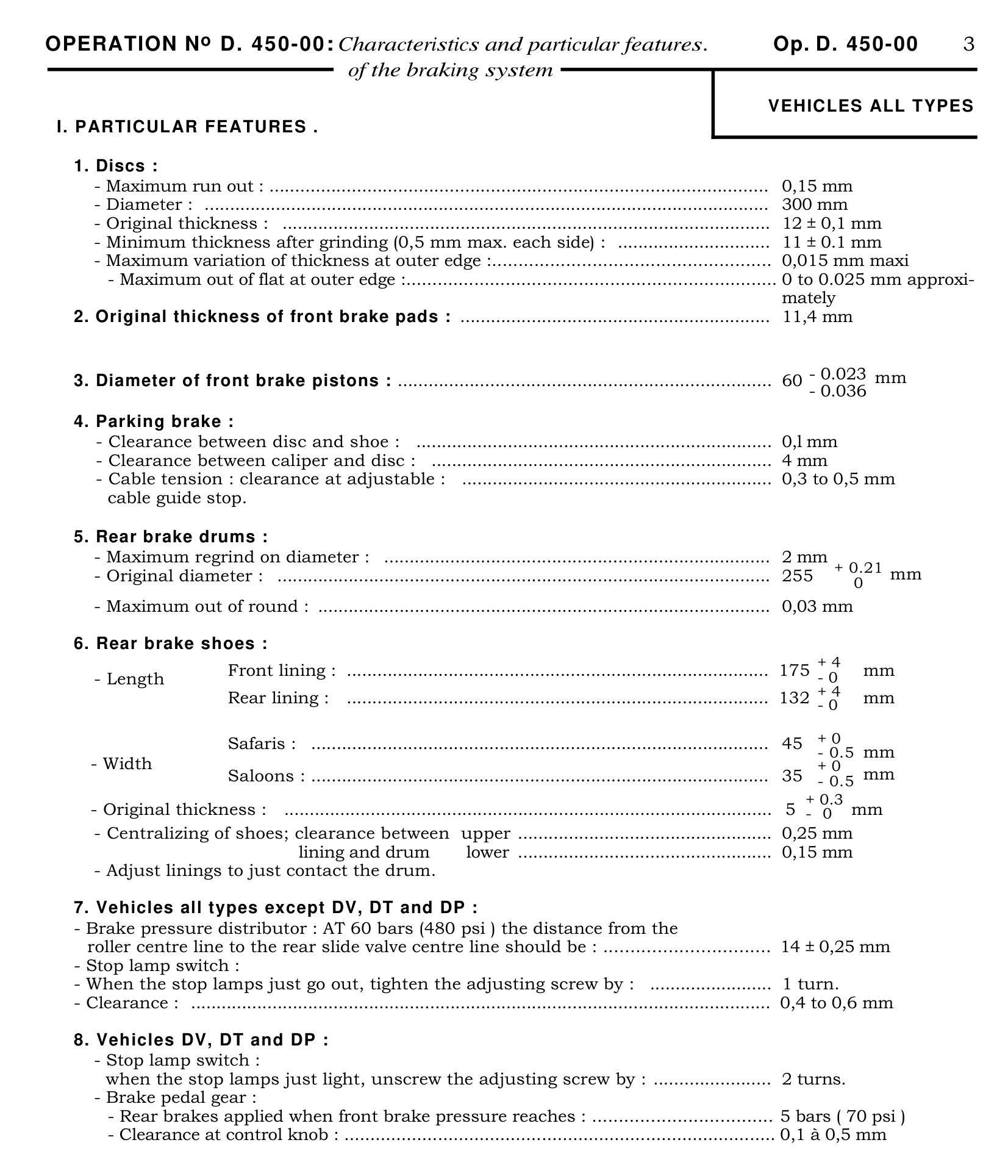

All types - data, page 241 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.249)

Only use test bench 3654 - T intended for the mineral LHM fluid (this bench is painted green ) and its accessories 3655-T (the tubes and pres- sure gauges bear a green marking ). 1. Connect the bench pump opening «e» to a brake accumulator feed opening « safari type ». Connect the supply opening of this accumulator to the 3- way union (1).
