REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

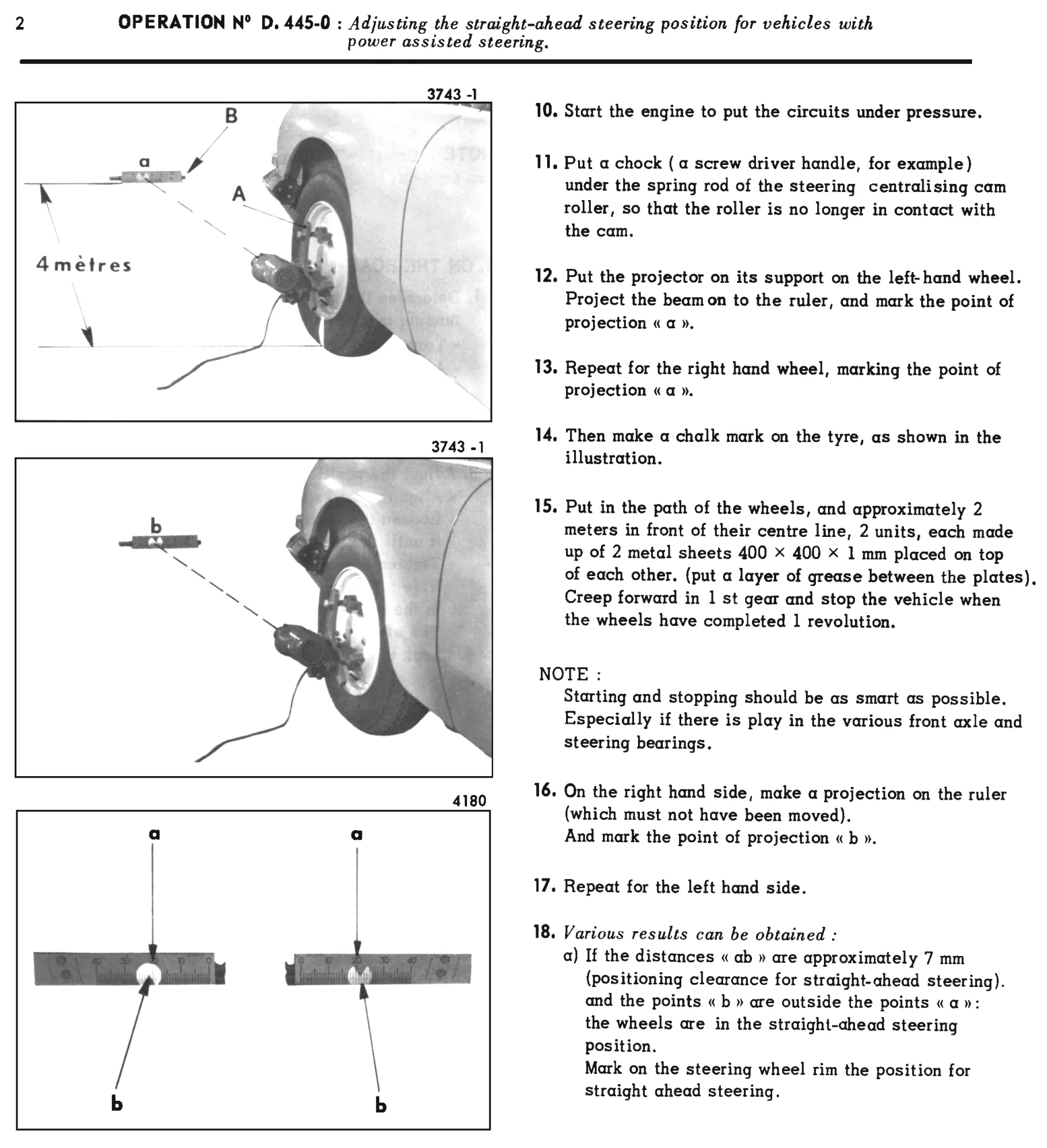

2 OPERATION N° D. 445-0 : Adjusting the straight-ahead steering position for vehicles with power assisted steering. 3743 -1 4180 10. Start the engine to put the circuits under pressure. 11. Put a chock (a screw driver handle, for example) under the spring rod of the steering cam roller, so that the roller is no longer in contact with the cam.
