814 Repair Manual — Volume I — Page 160

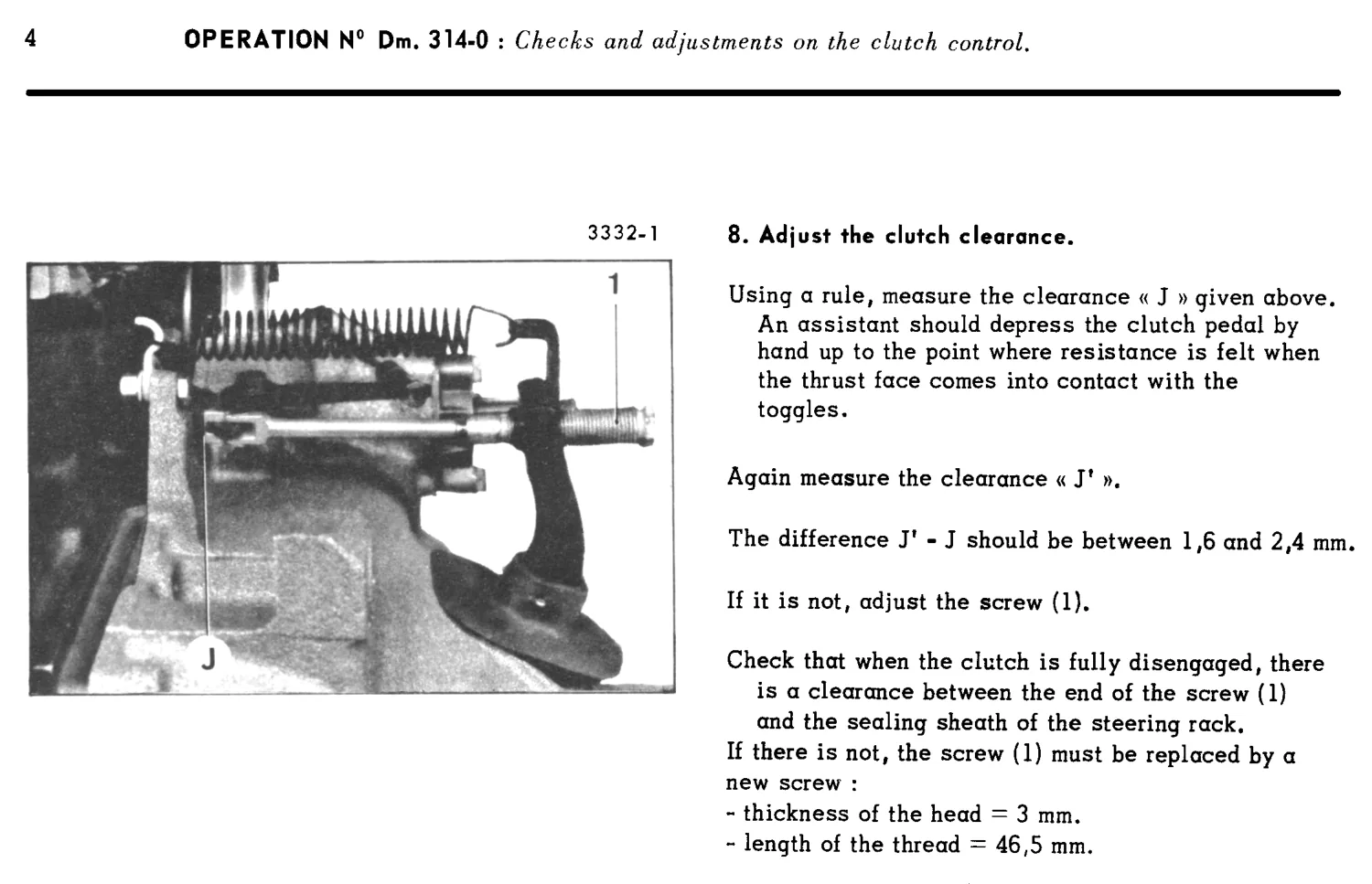

OPERATION N° Dm. 314-0 : Checks and adjustments on the clutch control. 3332-1 8. Adjust the clutch clearance. Using a rule, measure the clearance « J » given above, An assistant should depress the clutch pedal by hand up to the point where resistance is felt when the thrust face comes into contact with the toggles. Again measure the clearance « J' », The difference J' - J should be between 1,6 and 2,4 mm. If it is not, adjust the screw (1).
