Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

Control (hydraulic)

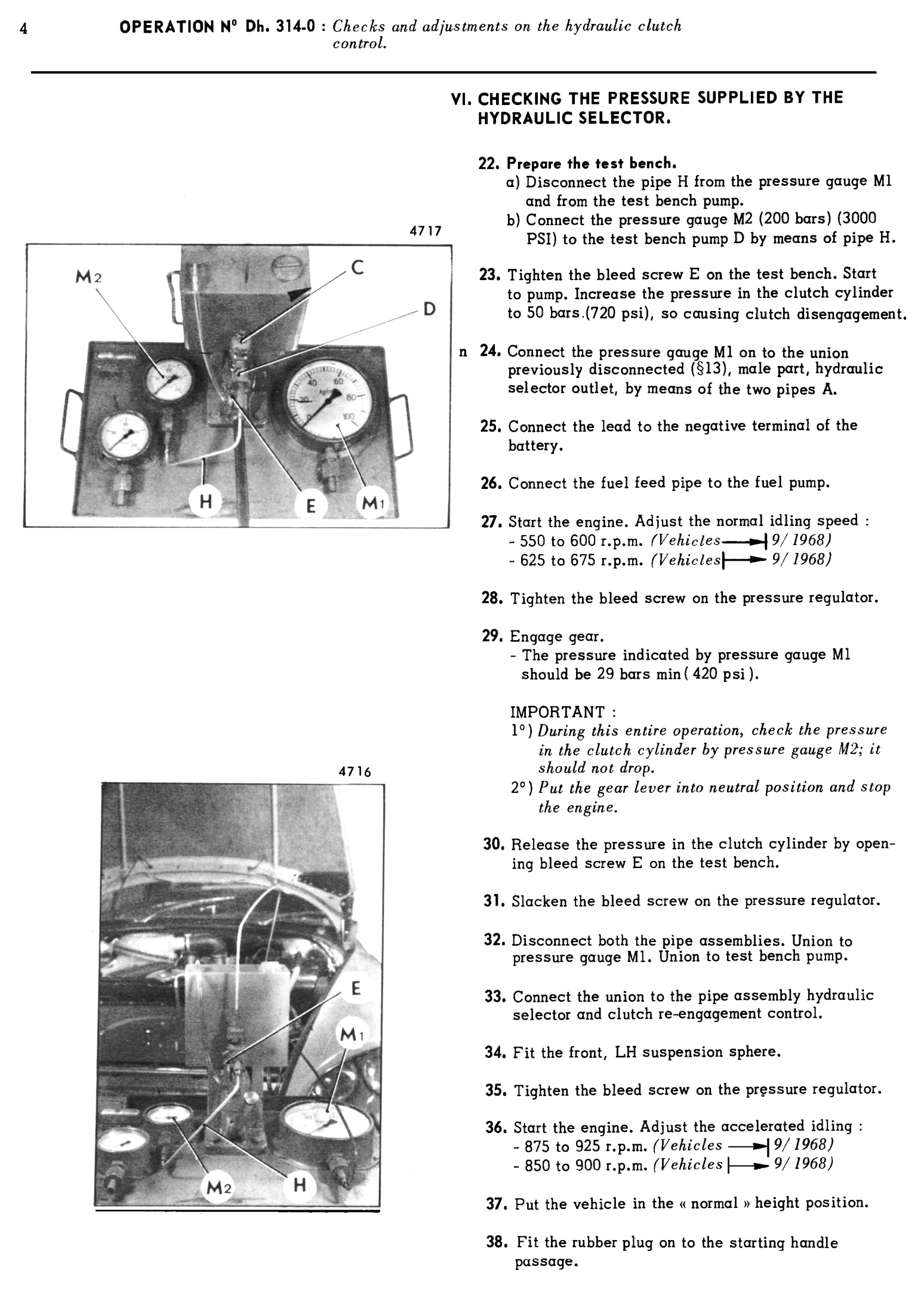

Control (hydraulic), page 156 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

4 OPERATION N° Dh. 314-0 : Checks and adjustments on the hydraulic clutch control. VI. CHECKING THE PRESSURE SUPPLIED BY THE HYDRAULIC SELECTOR. 22. Prepare the test bench. a) Disconnect the pipe H from the pressure gauge M1 and from the test bench pump. b) Connect the pressure gauge M2 (200 bars) (3000 PSI) to the test bench pump D by means of pipe H. 4717
