Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

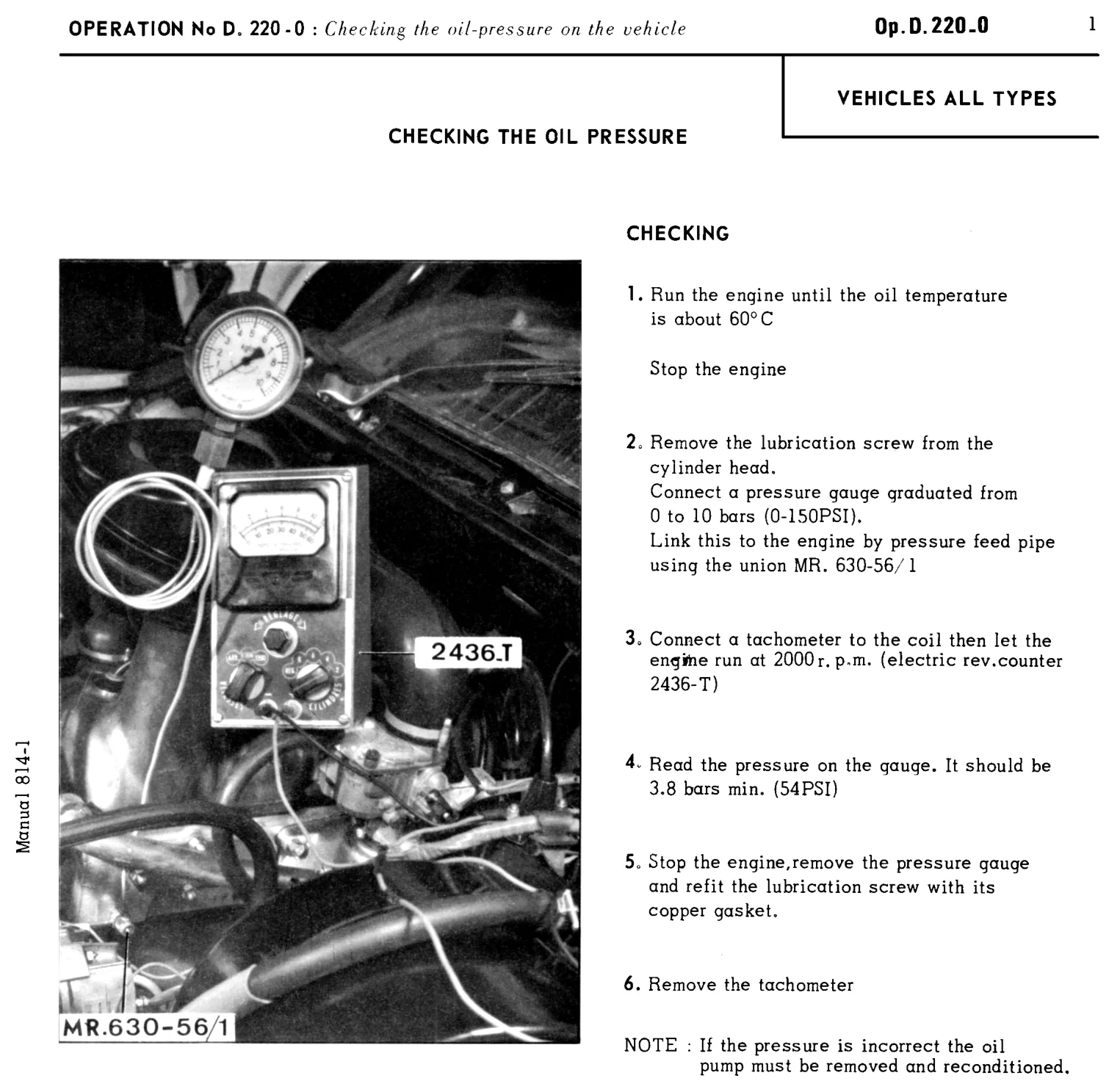

Check oil pressure

Check oil pressure, page 141 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.140)

a) Using a strobe lamp : - Turn the engine at 1800 r.p.m. - The mark on the drive pulley (lit by the strobe lamp) should be opposite the division corresponding to the value previously calculated. If this not the case, adjust the angular position of the distributor. During the operation, check and correct the engine speed. If necessary.
