814 Repair Manual — Volume I — Page 98

Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

Using Bosch tester

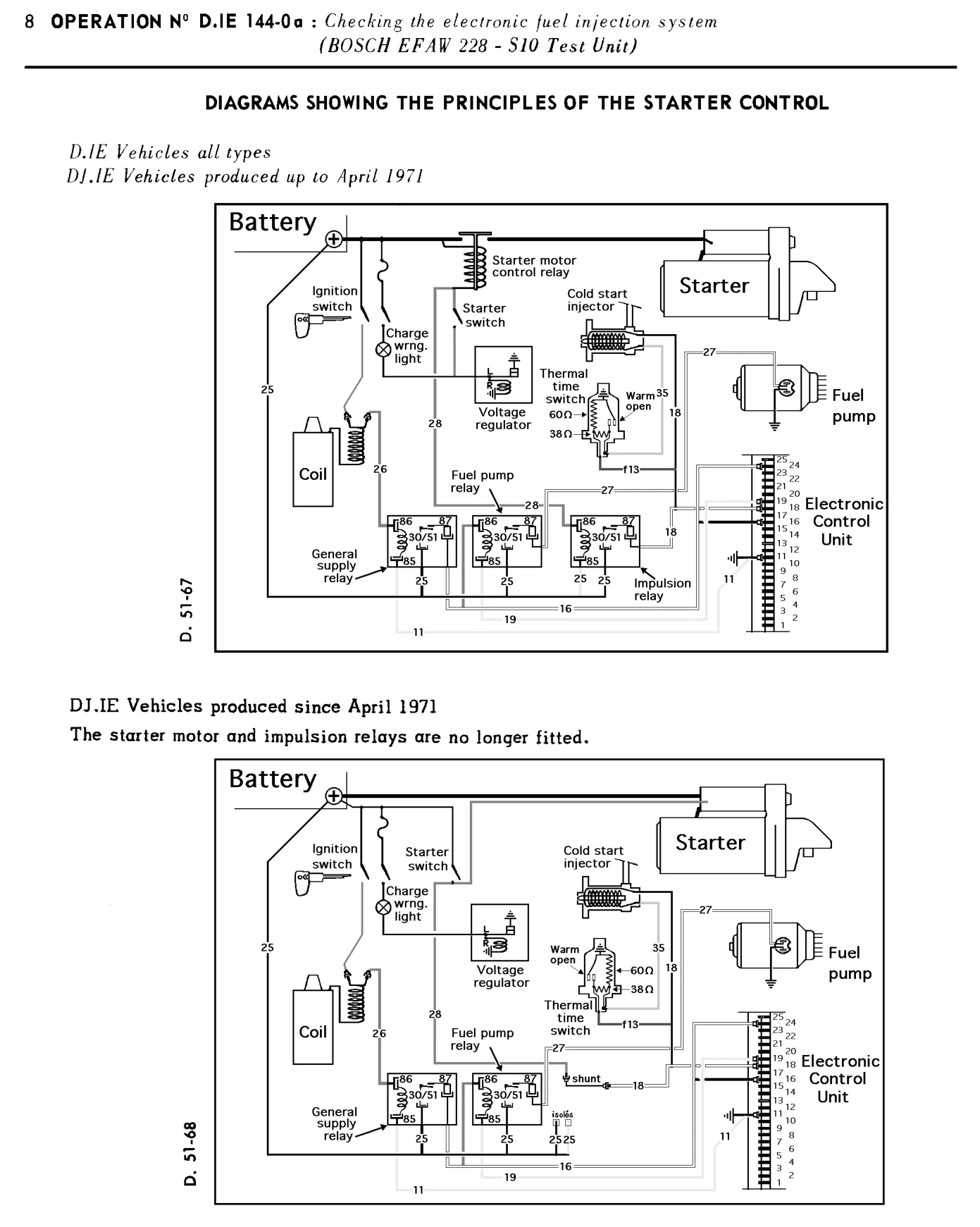

Using Bosch tester, page 98 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.94)

Connect the terminal block (1) of the BOSCH Test Unit EFAW 228 - S 10 and the terminal block (2) of the electronic control unit. IMPORTANT NOTE : Do not connect up the electronic control unit otherwise the readings would be distorted. To do this : - Remove the electronic control unit. - Disconnect the terminal block (2) of the control unit harness and check the of the leads of the 25 way connector using the reference marks and referring to the wiring diagrams. - Connect the terminal blocks (1) and (2).
