814 Repair Manual — Volume I — Page 86

Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

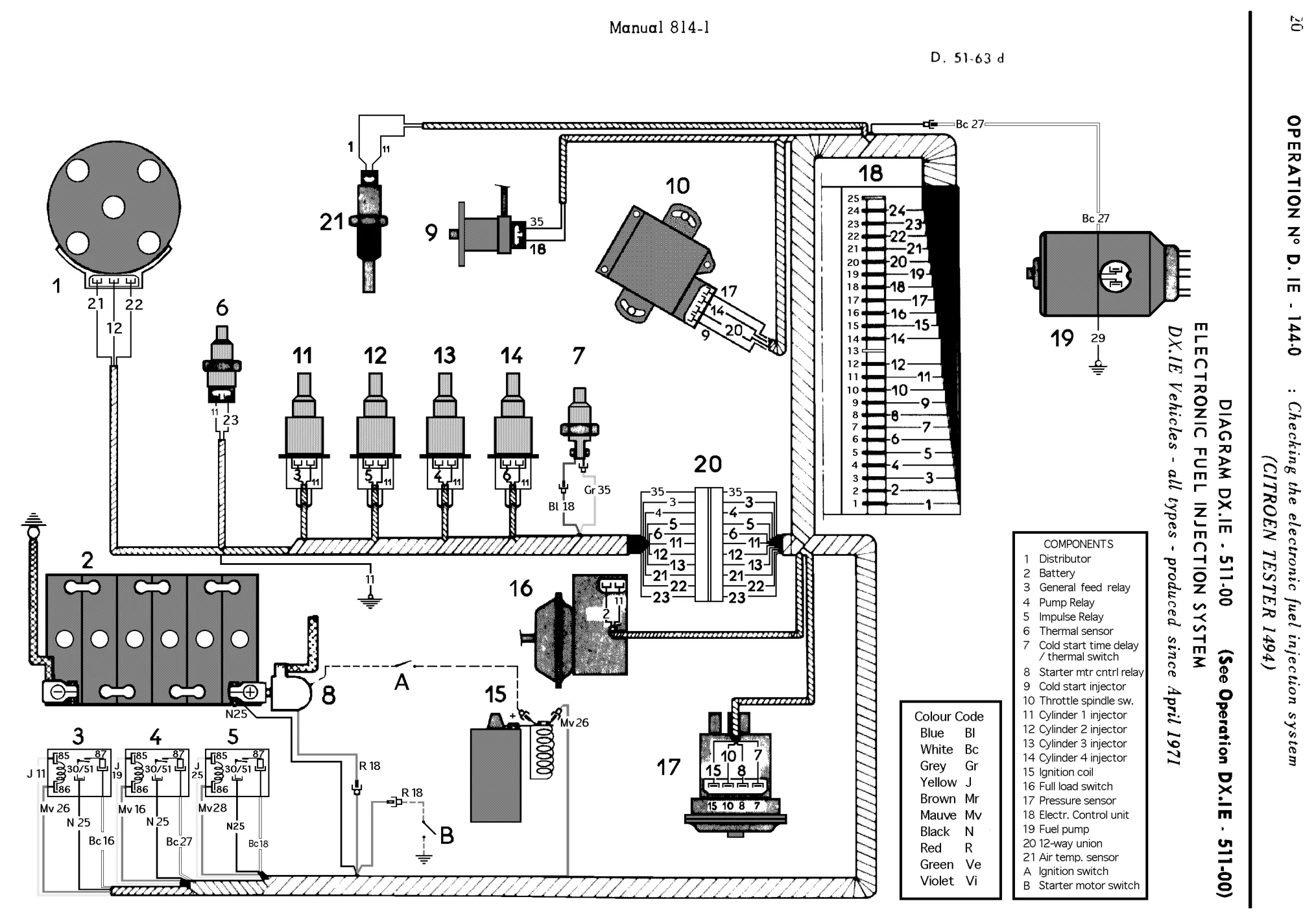

Using Citroen tester

Using Citroen tester, page 86 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.89)

Bring the engine speed to about 2500-3000 rpm, and disconnect the tube "a" from the PILOT valve (2) With the index finger, check to see if the depression (suction) can be felt, if not, check the pipes B and C and their connection. If these are in good condition, the PILOT valve must be faulty, replace it.
