814 Repair Manual — Volume I — Page 37
Citroën Repair Manual N°814, Volume I
SECTION OVERVIEW

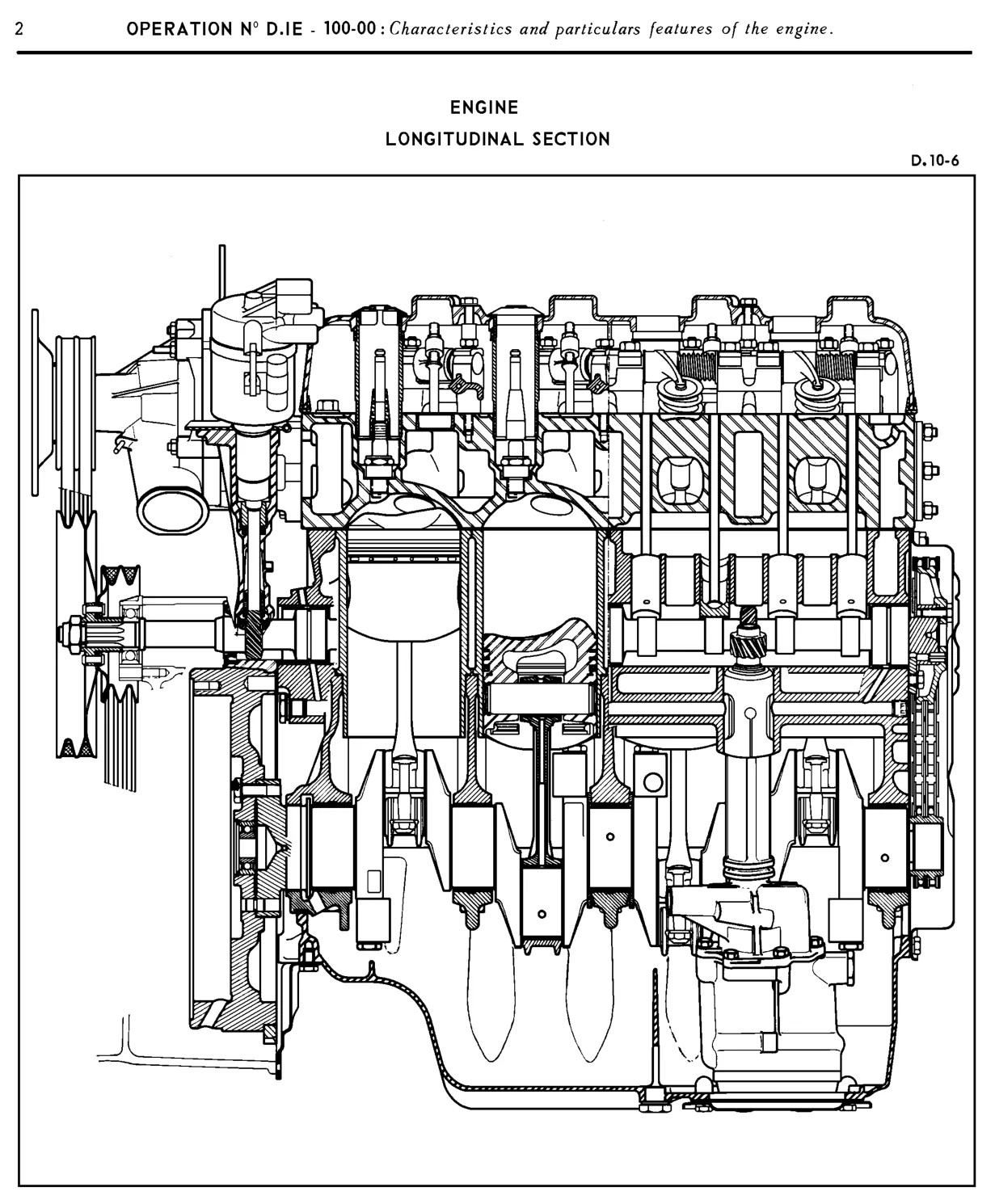

Cross-section (IE)

Cross-section (IE), page 37 of 454 — 814 Repair Manual — Volume I
REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY (from p.51)

1, Pre-adjustment : NOTE : The engine must be hot. Any adjust- made with the engine cold may be when the engine is hot. Run the engine at idling speed. Put the starting handle extension into position. Unscrew the adjusting screw (1) of the clutch fork by fractions of a turn, until the starting handle extension just begins to turn but may be stopped by hand. 1408 2. Adjustment : Tighten the screw (1) by two turns.
