REPRESENTATIVE EXCERPT — FOR REFERENCE ONLY

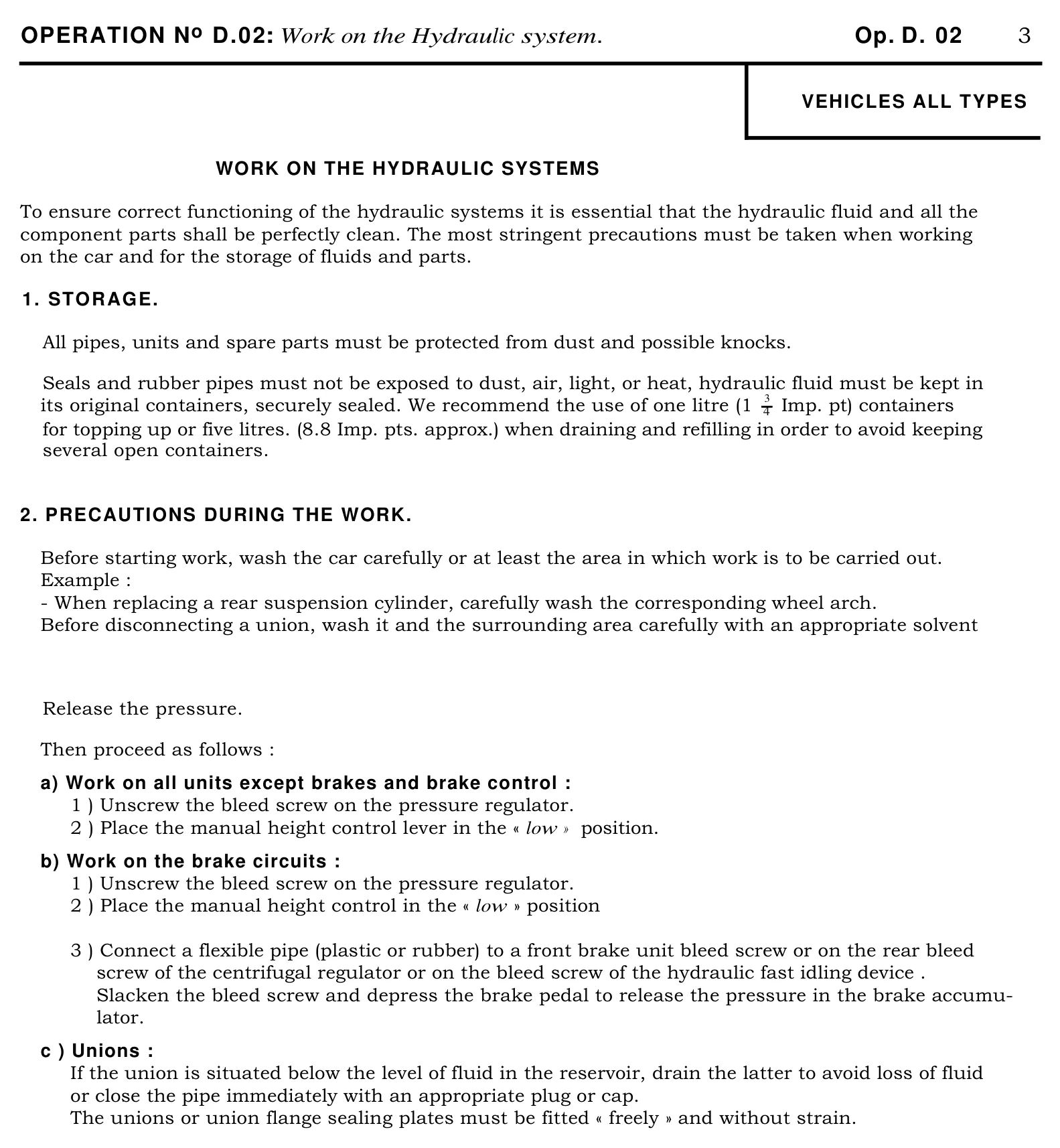

OPERATION N° D.02: Work on the Hydraulic system. Op. D. 02 3 VEHICLES ALL TYPES WORK ON THE HYDRAULIC SYSTEMS To ensure correct functioning of the hydraulic systems it is essential that the hydraulic fluid and all the component parts shall be perfectly clean. The most stringent precautions must be taken when working on the car and for the storage of fluids and parts.
