Choose a section…
Introduction (p.1)
Preface (p.1)
Type symbols (p.2)
Chassis types (p.2)
Body types (p.3)
Contents (p.4)
Engine (p.5)
Complete engine (p.5)
Cylinder block, crankcase (p.6)
Block -w/out barrels (p.6)
Barrels, pistons (p.7)
Piston rigs (p.8)
Connectig rods (p.9)
Cylinder head (p.10)
Valves (p.11)
Block, crankcase (p.12)
Cylinder head 7, 11 (p.16)
Cylinder head 11L, 11 (p.19)
Crank, rods, pistons (p.23)
Camshaft assembly (p.26)
Oil pump, piping ->12/38 (p.29)
Oilpump etc 1039-> (p.33)
Water pump, fan ->11/34 (p.36)
Water pump, fan->1950 (p.38)
Water pum, fan 11L, 11 (p.40)
Carburetter ->2/39 (p.41)
Carburetter 2/39->4/50 (p.42)
Carburetter 5/50-> (p.44)
Clutch (p.46)
Gearbox (p.49)
Speedo drive (p.50)
Casing, cover (p.51)
Controls (p.54)
Pinions, shafts, forks (p.56)
Differential (p.59)
Front axle (p.62)
Complete assembly (p.62)
Coomplete driveshafts (p.63)
Cradle, links, swivels 7, 11L (p.65)
Cradle, links, swivels 11 (p.68)
Friction s/absorbers, torsion bars (p.76)
Spice s/absorbers, torsion bars (p.78)
Drive shafts (p.80)
Hub, (steel) brake drum (p.82)
Hub, (cast) brake drum (p.85)
Lockheed brakes (front) (p.87)
Steering rods 7, 11L (p.89)
Steering rods 11 (p.91)
Steering side rods (p.93)
Steering levers, relays (p.95)
Steering relay (p.97)
Rack and pinion (p.98)
Pedal gear (p.103)
Pedal gear 7, 11L (p.103)
Pedal gear 11 (p.104)
Pedal gear 5/34->4/52 (p.105)
Pendant pedals 4/52-> (p.108)
Hand brake (p.110)
Brake pipes (p.111)
Rear axle (p.113)
Complete axle (p.113)
Axle, X-member, tie rod (p.114)
Stub axle, hub, rearings (p.117)
Brake drum, bearings, X-form axle (p.119)
Lockheed r. brakes->10/36 (p.121)
Lockheed r. brakes 11/36-> (p.122)
R. shock absorber (p.125)
Hull front, bonnet (p.126)
Engine suspension (p.129)
Exhaust ->6/36 (p.131)
Exhaust 6/36-> (p.133)
Radiator, cooling system (p.135)
Car air heater (p.137)
Petrol tank, pipes etc. (p.139)
Petrol tank 7/52-> (p.141)
Petrol pump (p.143)
Guiot (p.143)
A.C->Jun/40 (p.145)
S.E.V.->Oct/34 (p.146)
S.E.V (p.147)
Starter motor (p.149)
Stationary parts->9/53 (p.149)
Stationary parts 9/53-> (p.152)
Paris-Rhône 10/53-> (p.154)
Moving parts (p.155)
Electrical (p.158)
Dynamo (p.158)
Pre 4/53 (p.158)
Paris-Rhône 4/53-> (p.161)
Ducellier 6/53-> (p.163)
Ignition distributor (p.164)
Ign, starter, choke controls (p.166)
-> Feb 1950 (p.166)
Battery, cables (p.172)
Electrical equipmnt. (p.173)
Lighting, horn switch (p.174)
Screen wiper (p.175)
->6/52 (p.177)
S.E.V 11L, 11 6/52-> (p.176)
R. lights, no. plate (p.179)
Headlamps (p.181)
Instrument panel->9/37 (p.182)
Inst. panel i/line w. steering (p.183)
Inst. panel-5/36-7/52 (p.185)
Wheel accessories (p.187)
Tools (p.188)
Body (p.189)
F. ,R. bumpers (p.189)
Front wings (p.192)
Scuttle (p.195)
Windscreen (p.198)
->6/52 (not roadster) (p.199)
11L, 11 (p.200)
Roadster (p.203)
Glass (p.204)
Doors (p.205)
Locks, handles (p.208)
Rear, inc. boot door (p.210)
Boot door, late type (p.212)
Dickey seat door, hood (p.213)
Rear door Commercial (p.215)
Rear wings (p.216)
Spare wheel cover (p.217)
Front seats, jump seats (p.218)
Fr. seat fixings (p.219)
Body panels (p.221)
Interior trim (p.225)

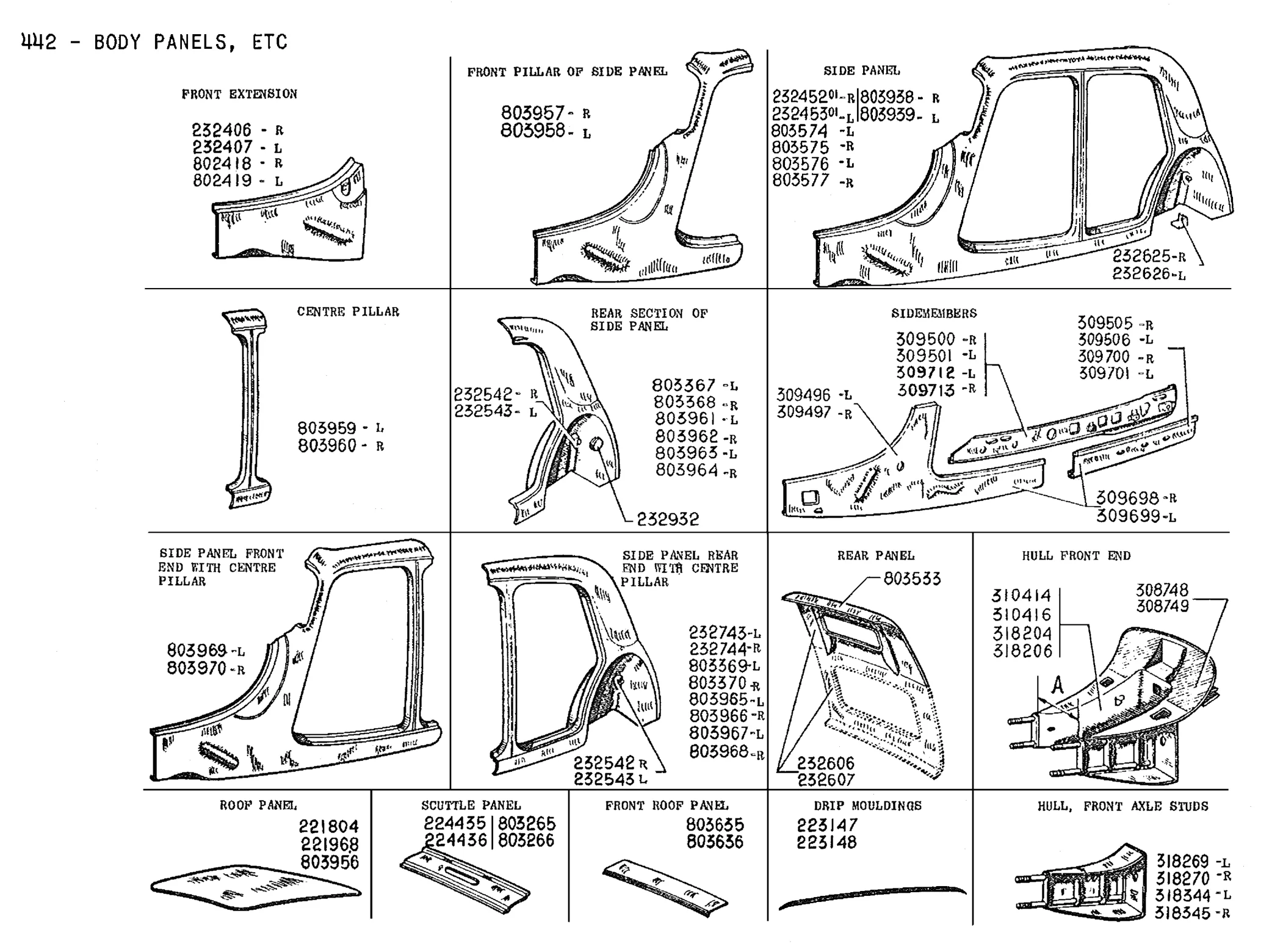

REPRESENTATIVE EXCERPT — FROM FOLLOWING PARTS LIST (from p.222)
Roof panel Drip right. 1465 long , Drip left. 14865 long Scuttle panel - up to June 1952 Scuttle panel ~ yp to June 1952 Side panel extension, front right (left hand drive) Side panel extension, front left (left hand drive) Side panel, right without extension, Limousine and Family. up to September 1941 Side panel, Left without extension, Limousine and Family, up to September.ig41. NO LONGER SUPPLIED Gusset for right Gusset for left
