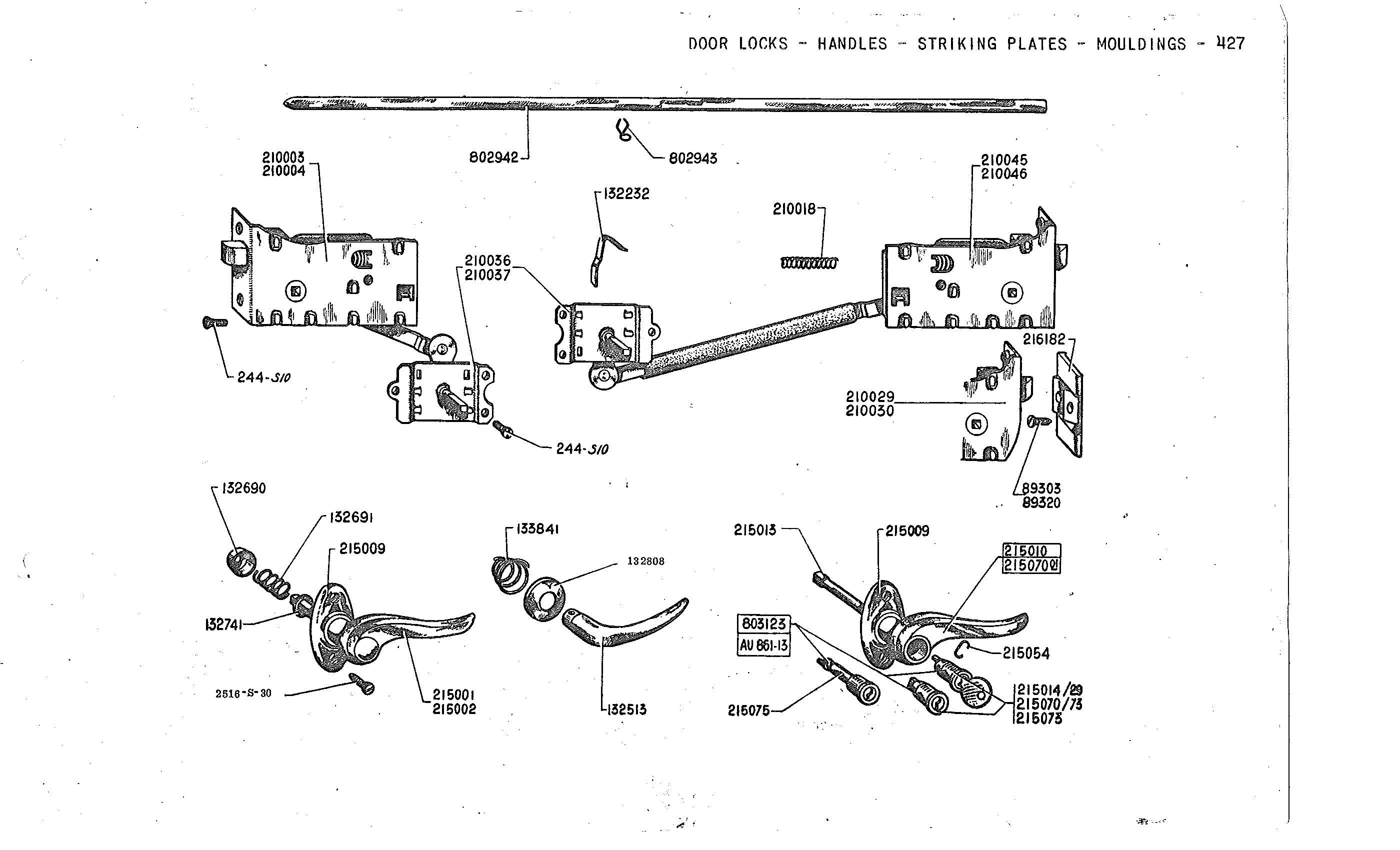

REPRESENTATIVE EXCERPT — FROM FOLLOWING PARTS LIST (from p.209)
2 lock barrels 215073 for front door right and rear boot. 1 lock barrel 215070 for ignition switch (RV1). After July 1952 Screw head § 15 long. Fixing door locks (R111) Screw hd, 5 15 long (cruciform slot). Fixing handles (RV) Screw head 7 12 long Fixing striking plates (R111) Screw head 7 19 long. Fixing striking plates Return spring for door lock remote control Inside door handle Locating cup for door handle spring Spring for door handle
