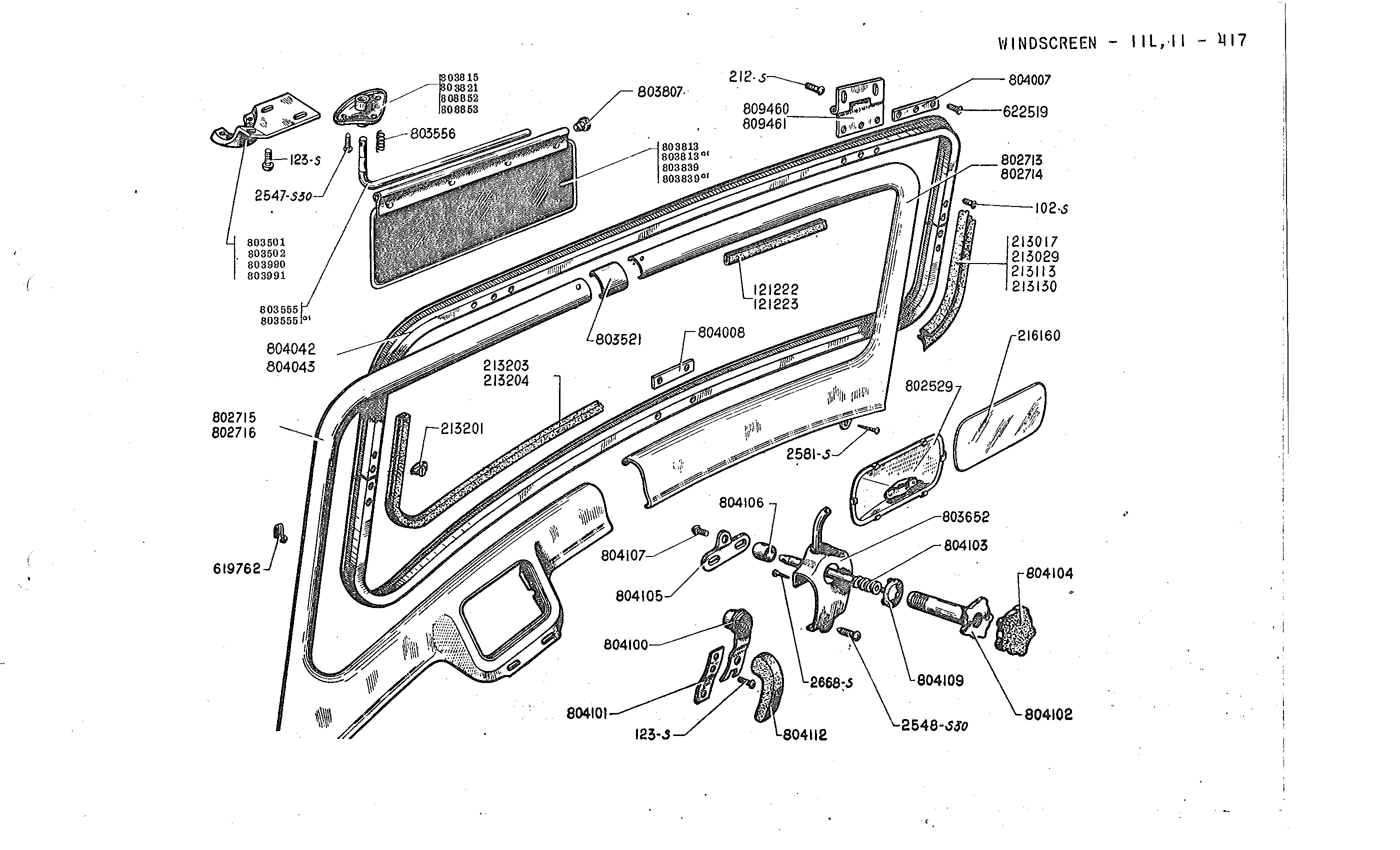

REPRESENTATIVE EXCERPT — FROM FOLLOWING PARTS LIST (from p.201)
red. head 4 7,5 long For assembling frame (RiL1) Serew esd, head § 10 long (R111) Fixing: - - Sun visor bracket - Control on dashboard Screw head 3 10 long. Fixing hinge on front roof panel (RALLS Screw head 5 12.5 long slot. Fixing sun visor bracket to reinforcement (RV1) Screy head slot 5 15 long, Fixing lower cover joint Screw PK 3.5 10 long. Fixing Screw PK head 3,5 9,5 long Fixing control bracket (RVI)
