Choose a section…
Introduction (p.1)
Preface (p.1)
Type symbols (p.2)
Chassis types (p.2)
Body types (p.3)
Contents (p.4)
Engine (p.5)
Complete engine (p.5)
Cylinder block, crankcase (p.6)
Block -w/out barrels (p.6)
Barrels, pistons (p.7)
Piston rigs (p.8)
Connectig rods (p.9)
Cylinder head (p.10)
Valves (p.11)
Block, crankcase (p.12)
Cylinder head 7, 11 (p.16)
Cylinder head 11L, 11 (p.19)
Crank, rods, pistons (p.23)
Camshaft assembly (p.26)
Oil pump, piping ->12/38 (p.29)
Oilpump etc 1039-> (p.33)
Water pump, fan ->11/34 (p.36)
Water pump, fan->1950 (p.38)
Water pum, fan 11L, 11 (p.40)
Carburetter ->2/39 (p.41)
Carburetter 2/39->4/50 (p.42)
Carburetter 5/50-> (p.44)
Clutch (p.46)
Gearbox (p.49)
Speedo drive (p.50)
Casing, cover (p.51)
Controls (p.54)
Pinions, shafts, forks (p.56)
Differential (p.59)
Front axle (p.62)
Complete assembly (p.62)
Coomplete driveshafts (p.63)
Cradle, links, swivels 7, 11L (p.65)
Cradle, links, swivels 11 (p.68)
Friction s/absorbers, torsion bars (p.76)
Spice s/absorbers, torsion bars (p.78)
Drive shafts (p.80)
Hub, (steel) brake drum (p.82)
Hub, (cast) brake drum (p.85)
Lockheed brakes (front) (p.87)
Steering rods 7, 11L (p.89)
Steering rods 11 (p.91)
Steering side rods (p.93)
Steering levers, relays (p.95)
Steering relay (p.97)
Rack and pinion (p.98)
Pedal gear (p.103)
Pedal gear 7, 11L (p.103)
Pedal gear 11 (p.104)
Pedal gear 5/34->4/52 (p.105)
Pendant pedals 4/52-> (p.108)
Hand brake (p.110)
Brake pipes (p.111)
Rear axle (p.113)
Complete axle (p.113)
Axle, X-member, tie rod (p.114)
Stub axle, hub, rearings (p.117)
Brake drum, bearings, X-form axle (p.119)
Lockheed r. brakes->10/36 (p.121)
Lockheed r. brakes 11/36-> (p.122)
R. shock absorber (p.125)
Hull front, bonnet (p.126)
Engine suspension (p.129)
Exhaust ->6/36 (p.131)
Exhaust 6/36-> (p.133)
Radiator, cooling system (p.135)
Car air heater (p.137)
Petrol tank, pipes etc. (p.139)
Petrol tank 7/52-> (p.141)
Petrol pump (p.143)
Guiot (p.143)
A.C->Jun/40 (p.145)
S.E.V.->Oct/34 (p.146)
S.E.V (p.147)
Starter motor (p.149)
Stationary parts->9/53 (p.149)
Stationary parts 9/53-> (p.152)
Paris-Rhône 10/53-> (p.154)
Moving parts (p.155)
Electrical (p.158)
Dynamo (p.158)
Pre 4/53 (p.158)
Paris-Rhône 4/53-> (p.161)
Ducellier 6/53-> (p.163)
Ignition distributor (p.164)
Ign, starter, choke controls (p.166)
-> Feb 1950 (p.166)
Battery, cables (p.172)
Electrical equipmnt. (p.173)
Lighting, horn switch (p.174)
Screen wiper (p.175)
->6/52 (p.177)
S.E.V 11L, 11 6/52-> (p.176)
R. lights, no. plate (p.179)
Headlamps (p.181)
Instrument panel->9/37 (p.182)
Inst. panel i/line w. steering (p.183)
Inst. panel-5/36-7/52 (p.185)
Wheel accessories (p.187)
Tools (p.188)
Body (p.189)
F. ,R. bumpers (p.189)
Front wings (p.192)
Scuttle (p.195)
Windscreen (p.198)
->6/52 (not roadster) (p.199)
11L, 11 (p.200)
Roadster (p.203)
Glass (p.204)
Doors (p.205)
Locks, handles (p.208)
Rear, inc. boot door (p.210)
Boot door, late type (p.212)
Dickey seat door, hood (p.213)
Rear door Commercial (p.215)
Rear wings (p.216)
Spare wheel cover (p.217)
Front seats, jump seats (p.218)
Fr. seat fixings (p.219)
Body panels (p.221)
Interior trim (p.225)
REPRESENTATIVE EXCERPT — FROM FOLLOWING PARTS LIST (from p.194)

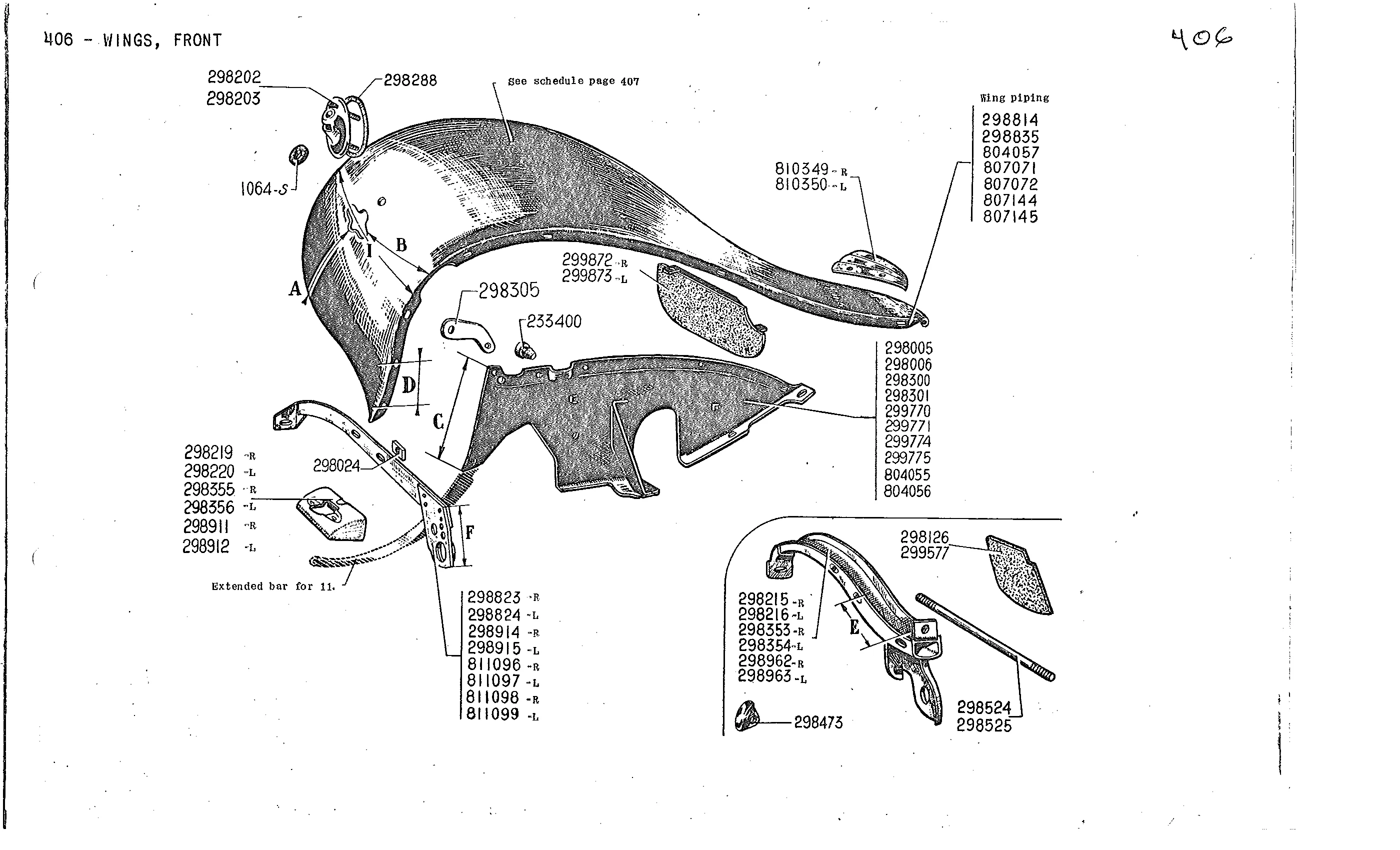

Wing piping between radiator shell ‘and wing valance 1550 mm. long (for black wings) (RV1) up to March Headlamp mounting reinforcement right. After october Headlamp mounting reinforcement left, After October Wing stay right dimension F = 180 mm. After october Wing stay left dimension F = 180 mm. After October Wing stay right fitted with 298524 dimension E = 245 mm. March 1937 to 1945 Wing stay left fitted with 298524 dimension EB =
