EXTRACTED TEXT — FOR REFERENCE ONLY

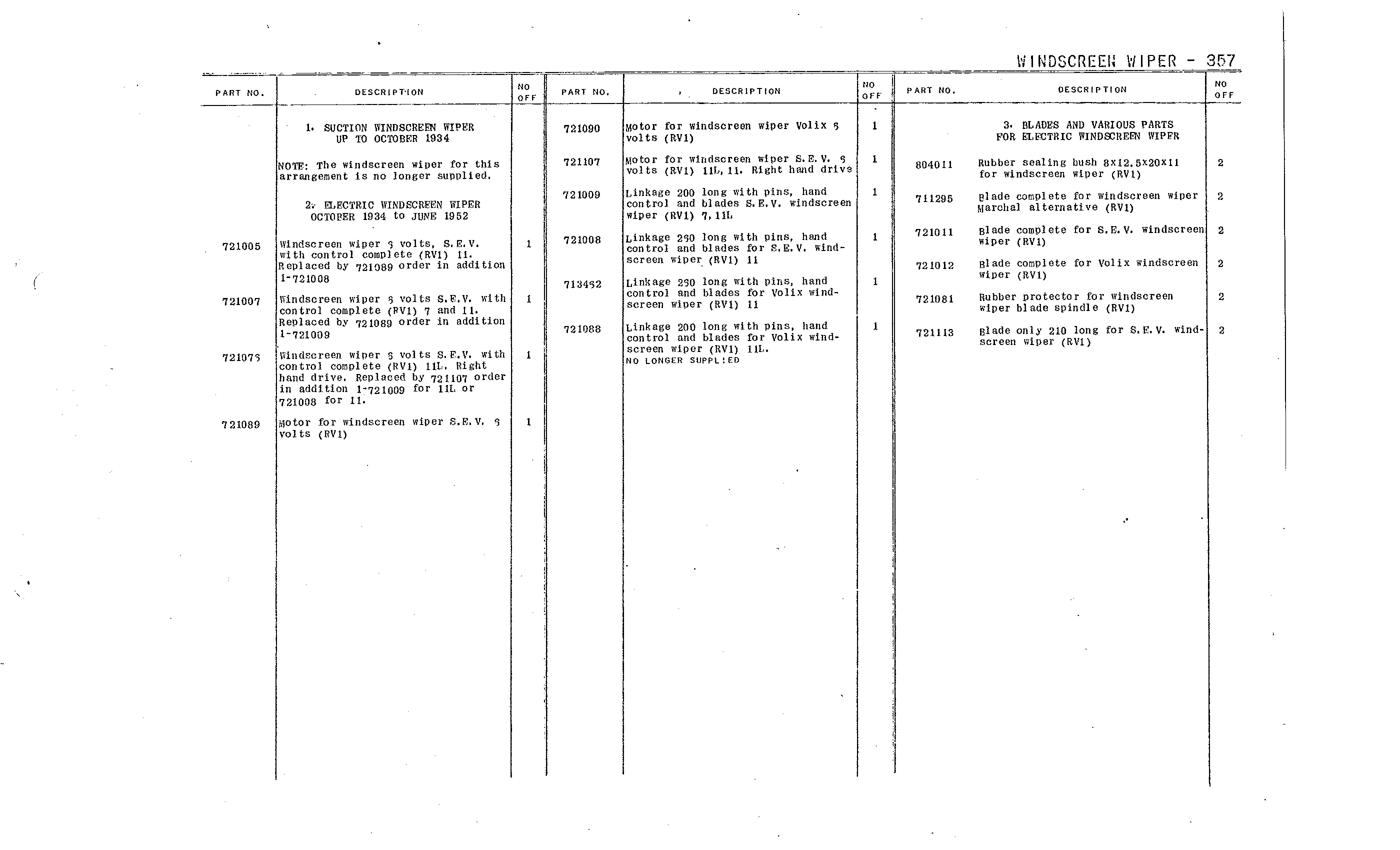

1. SUCTION WINDSCREEN WIPER UP TO OCTOBER 1934 NOTE: The windscreen wiper for this arrangement is no longer supplied. 2, ELECTRIC WINDSCREEN WIPER OCTORER 1934 to JUNE 1952 Windscreen wiper $ volts, S.E.V. with control complete (RVI) Li. Replaced by 721089 order in addition Windscreen wiper § volts S.E.V. with control complete (RVI) 7 and 11. Replaced by 721089 order in addition ‘Windscreen wiper § volts S.F.Y. with
