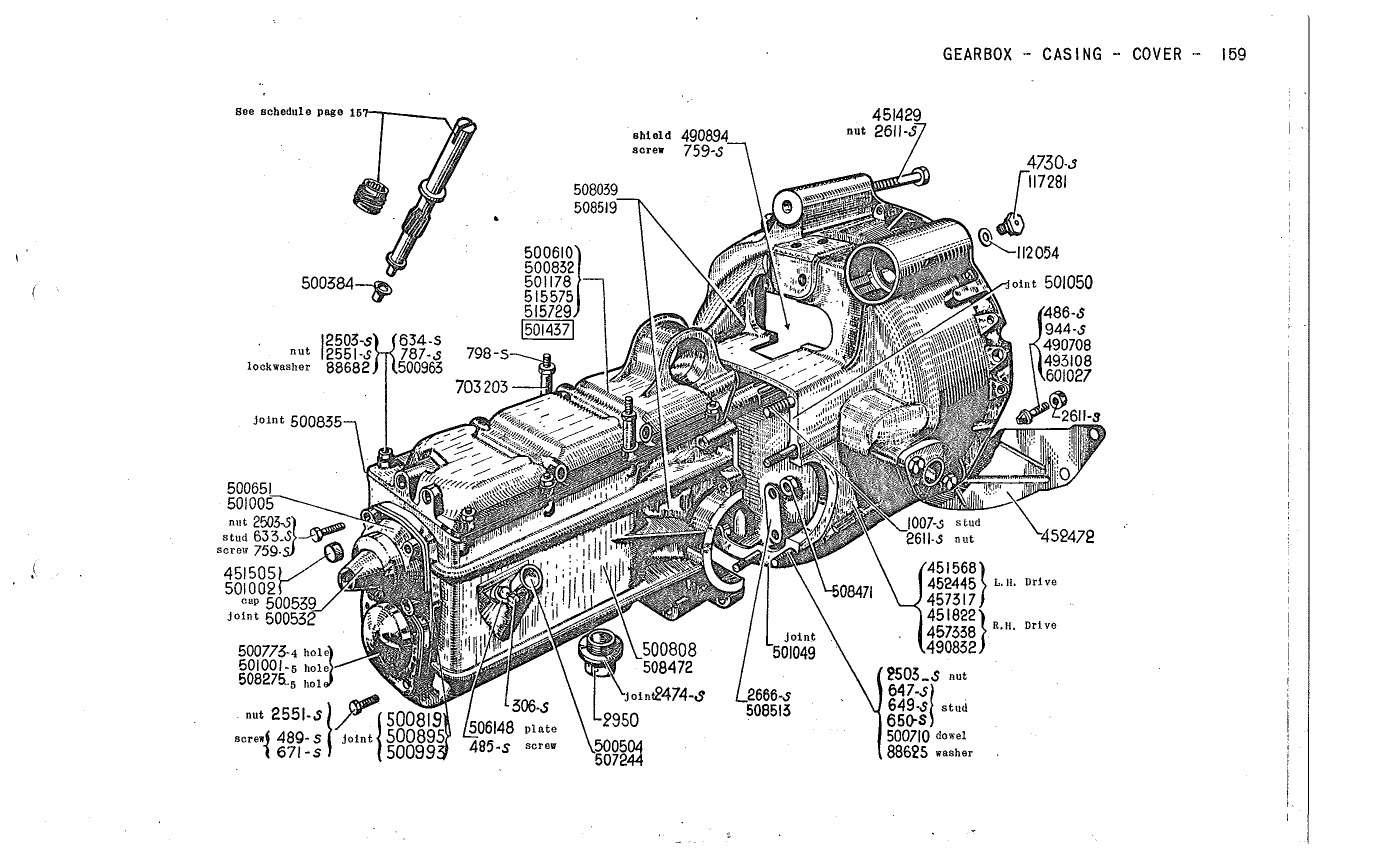

REPRESENTATIVE EXCERPT — FROM FOLLOWING PARTS LIST (from p.52)
QO AN ES Screw, hex head, 7 Gia. 29 long. fixing speedometer drive clamp(R, IIT) Screw, hex head, 7 22,5 long. Fixing bel Lhousing. Screw, hex head, 7 39 long. (R.ILT) Fixing: - “ clutch . - front bearing cap. up to May, 1935 Stud, 7 95.5 long (threaded 19,5 land 42,5) Fixing front and rear primary shaft covers (R. 111) Up to May, 1935. Stud, 7 2g long. (threaded 19,5 and 15) Fixing cover (R, III} up to May, 1935+
