Part Descriptions on This Page (English)

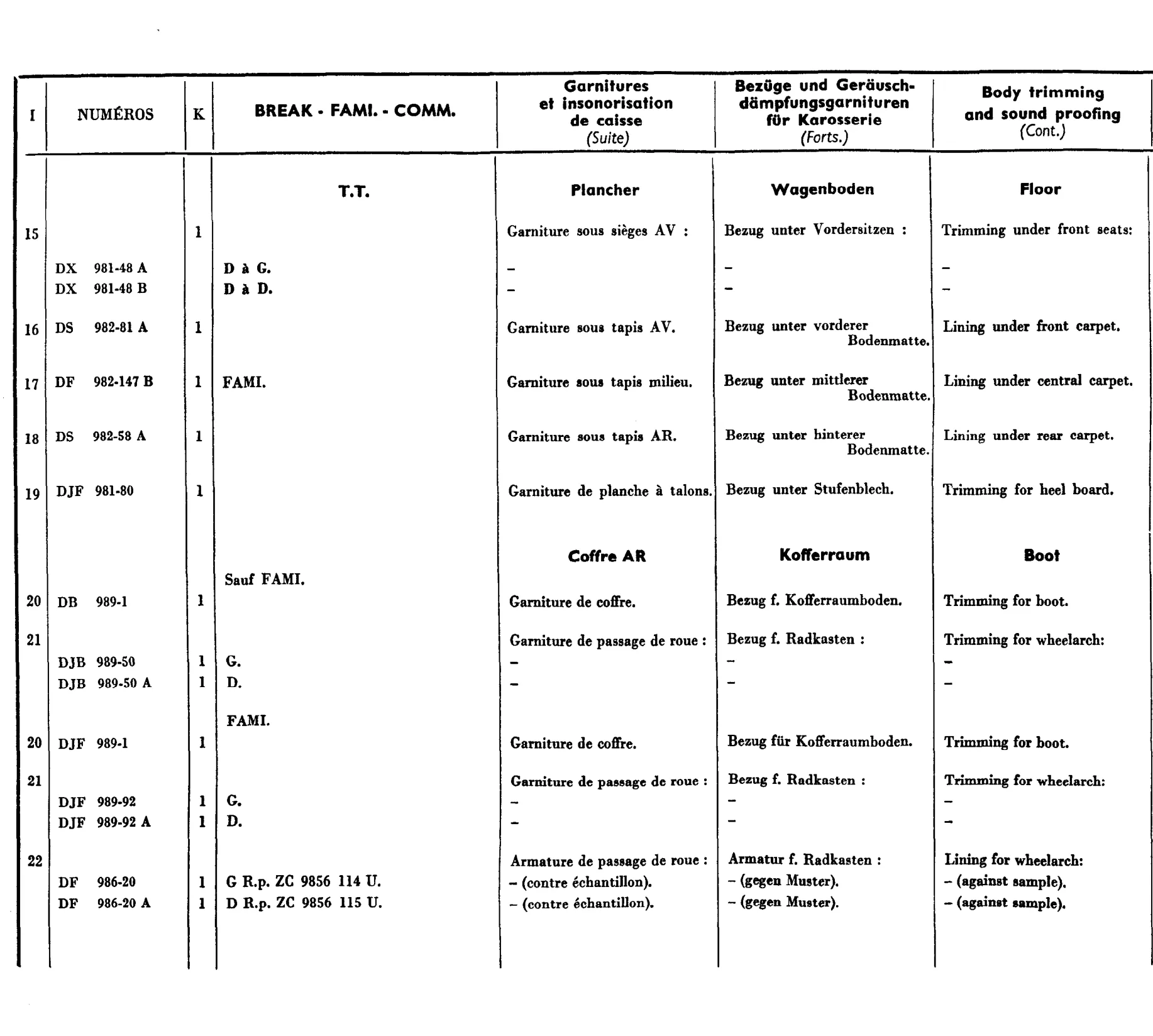

Body trimming and sound proofing (Cont.) | Floor | : Trimming under front seats: | Lining under front carpet. | Lining under central carpet. | Lining under rear carpet. | Trimming for heel board. | Boot | Trimming for boot. | Trimming for wheelarch: | Trimming for boot. | Lining for wheelarch: | - (against sample).
